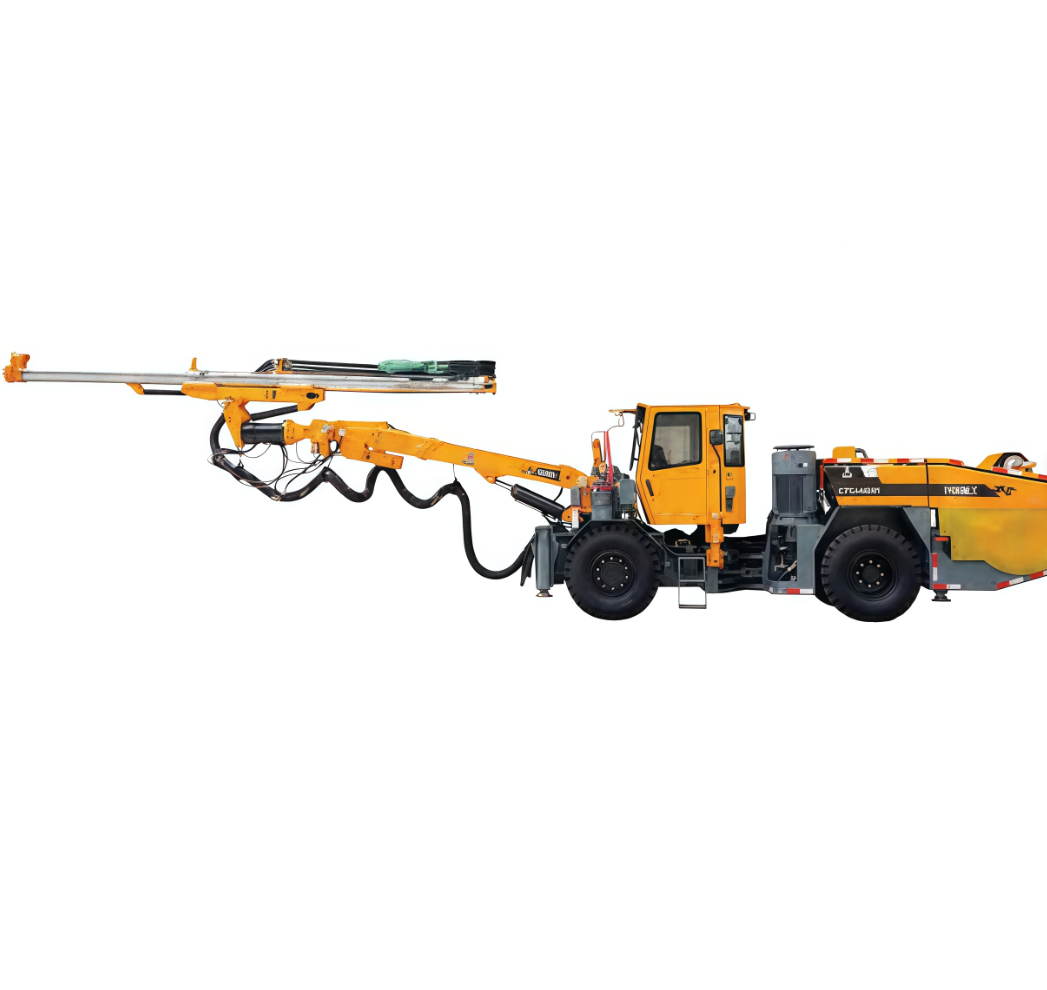

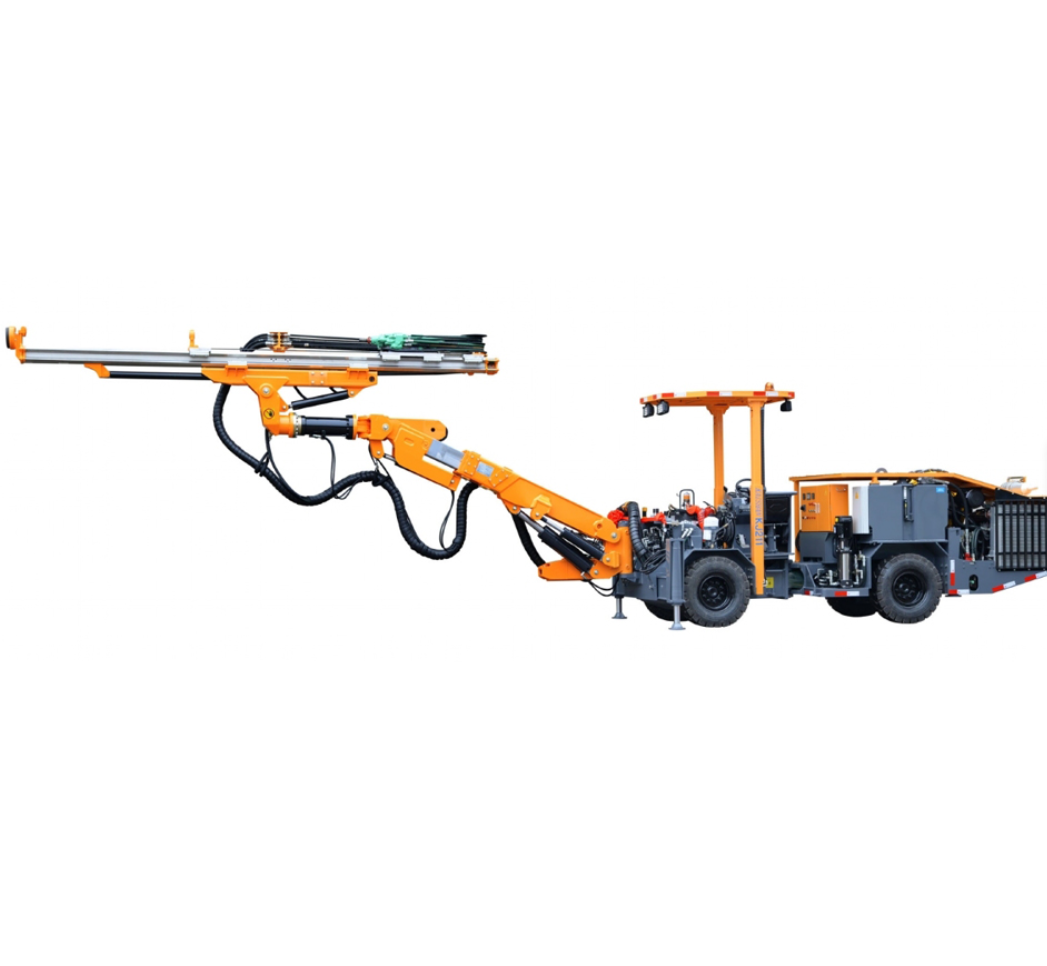

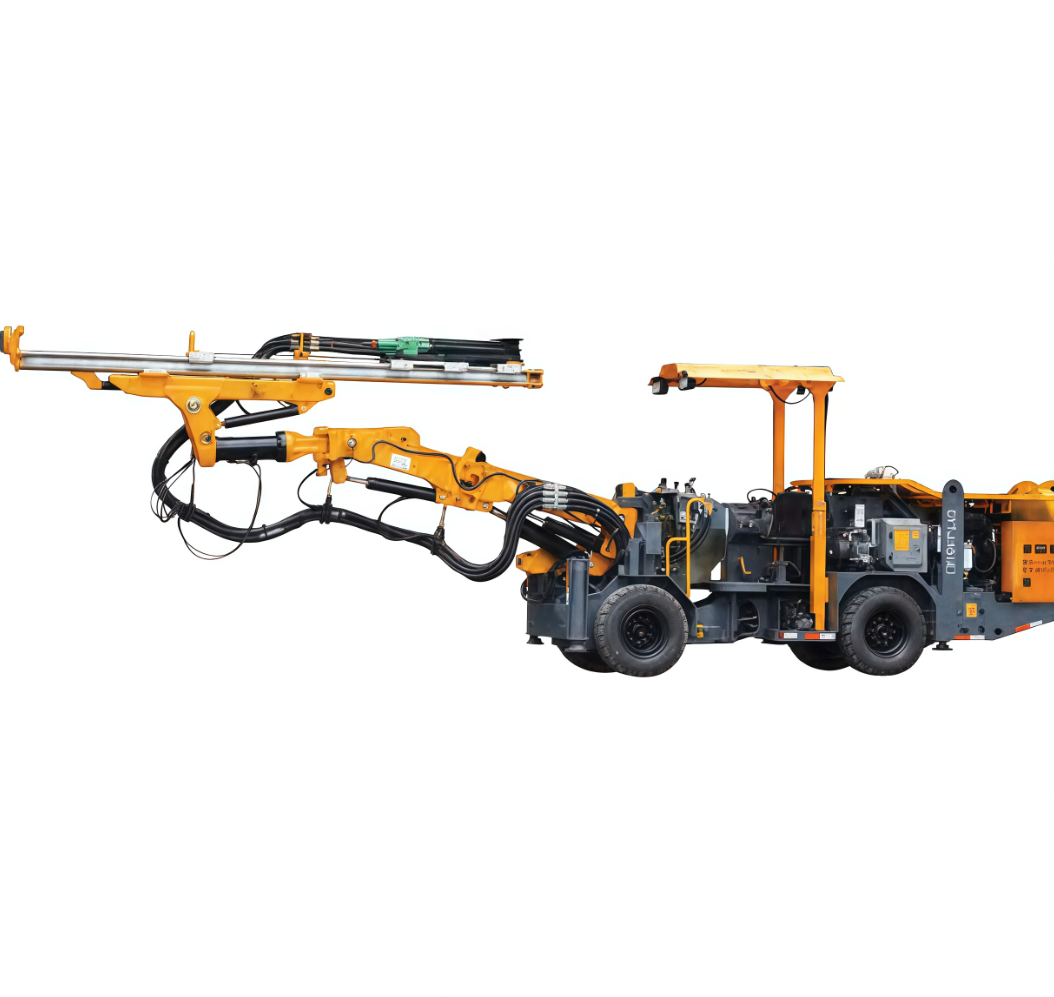

KJ211 Full Hydraulic Underground Jumbo Drill Rig
Compact full-hydraulic jumbo rig for underground tunnel drilling
Full-hydraulic underground jumbo drill rig for mine and tunnel development, built for compact headings and hard-rock drilling with Kaishan air-compression support and Montabert drifter configuration.
1.5-Year Warranty
Machinery Test Report Available
Video Outgoing Inspection
Full Hydraulic System
Guide Price
R 6 806 455.92
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
15 m² Tunnel Section
Suitable Heading Size
France Montabert 1xHC50/R38
Drifter
45 kW AC Three-Phase
Electro-Hydraulic Power Station
Kaishan 1xJN5 Screw Type
Air Compressor
1xCR3, 1.5 kW
Water Pump
6,200 kg
Weight
Business Solution Overview
Application-Focused Underground Design: The listing positions the KJ211 specifically for underground tunnel and mine drilling. Its compact dimensions and stated suitability for a 15 m² tunnel cross-section make it relevant for operations working in restricted headings.
Integrated Drilling Support Systems: The machine is listed with a Montabert drifter, Kaishan screw-type air compressor, electro-hydraulic power station and water pump. This integrated package supports drilling performance while reducing the need to source core operating components separately.
Reduced Operator Effort: As a full-hydraulic jumbo drill rig, the KJ211 is designed for mechanised underground drilling rather than manual rock drilling methods. That can help improve drilling consistency and support more productive development cycles underground.
Supplier Assurance Features: The supplier listing states that machinery test reports and video outgoing inspection are available, with a 1.5-year warranty. These signals can help buyers assess equipment readiness and procurement risk before shipment.
Built for Mining and Tunnelling Use: The product is marketed for mine and tunnel drilling applications rather than general-purpose construction equipment. That clearer fit can support better deployment on underground development, drifting and face-drilling duties.

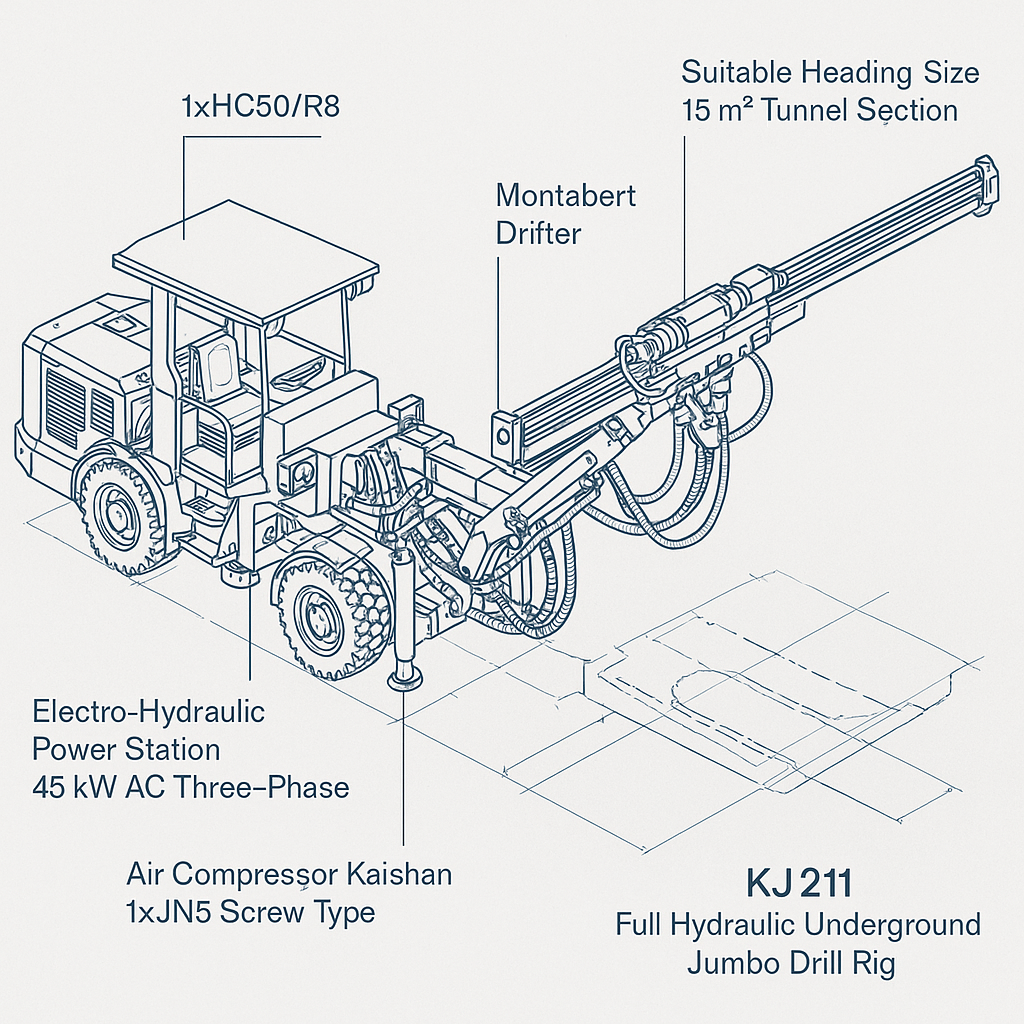

3D Sketch
AI-generated labelled 3D blueprint sketch — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Position Rig Underground
Power Hydraulic Systems
Drill Tunnel Face
Support Water Flushing
Why Choose KJ211 Full Hydraulic Underground Jumbo D?
Full Hydraulic Drilling System
The KJ211 is listed as a full-hydraulic underground drilling rig, supporting controlled mechanised drilling for tunnel and mine development work.
Compact Underground Footprint
With listed dimensions of 8,600 x 1,200 x 1,780 mm, the machine is suited to constrained underground access routes and narrower headings.
Montabert Drifter Configuration
The specified France Montabert 1xHC50/R38 drifter configuration is intended for reliable rock drilling performance in underground conditions.
Integrated Kaishan Air Supply
A Kaishan 1xJN5 screw-type air compressor is included in the listed setup, supporting drilling operations with matched air-compression equipment.
Onboard Electro-Hydraulic Power
The listed 45 kW AC three-phase electro-hydraulic power station provides the machine with dedicated hydraulic power for underground drilling duties.
Water Pump Included
The specification includes a 1xCR3 1.5 kW water pump, supporting drilling processes where water supply is required.
Technical Specifications
Brand
Kaishan
Product Name
Full Hydraulic Underground Tunnel Drilling Rig
Type
Hydraulic Tunnel Machine
Usage
Tunnel Drilling Rig
Application
Mine
Weight
6,200 kg
Drifter
France Montabert 1xHC50/R38
Air Compressor
Kaishan 1xJN5 Screw Type
Electro-Hydraulic Power Station
45 kW AC Three-Phase
Water Pump
1xCR3, 1.5 kW
Transport/Engine
KJ210.6, YuChai2108, 33 kW
Suitable Tunnel Cross-Section
15 m² (W: 4.2 m, H: 3.6 m)
Dimensions
8,600 x 1,200 x 1,780 mm
Place of Origin
Zhejiang, China
Warranty
1.5 Years
Machinery Test Report
Provided
Video Outgoing Inspection
Provided
Industries Served
Hard Rock Mining
Underground Tunnelling
Mine Development
Civil Tunnel Construction
What's Included
Underground jumbo drill rig
France Montabert drifter
Kaishan screw-type air compressor
Electro-hydraulic power station
Water pump
Supplier machinery test report
Video outgoing inspection support
