Gold & Precious Metal Processing
Gold Separator Machine
Heavy-duty alluvial gold scrubbing and separation

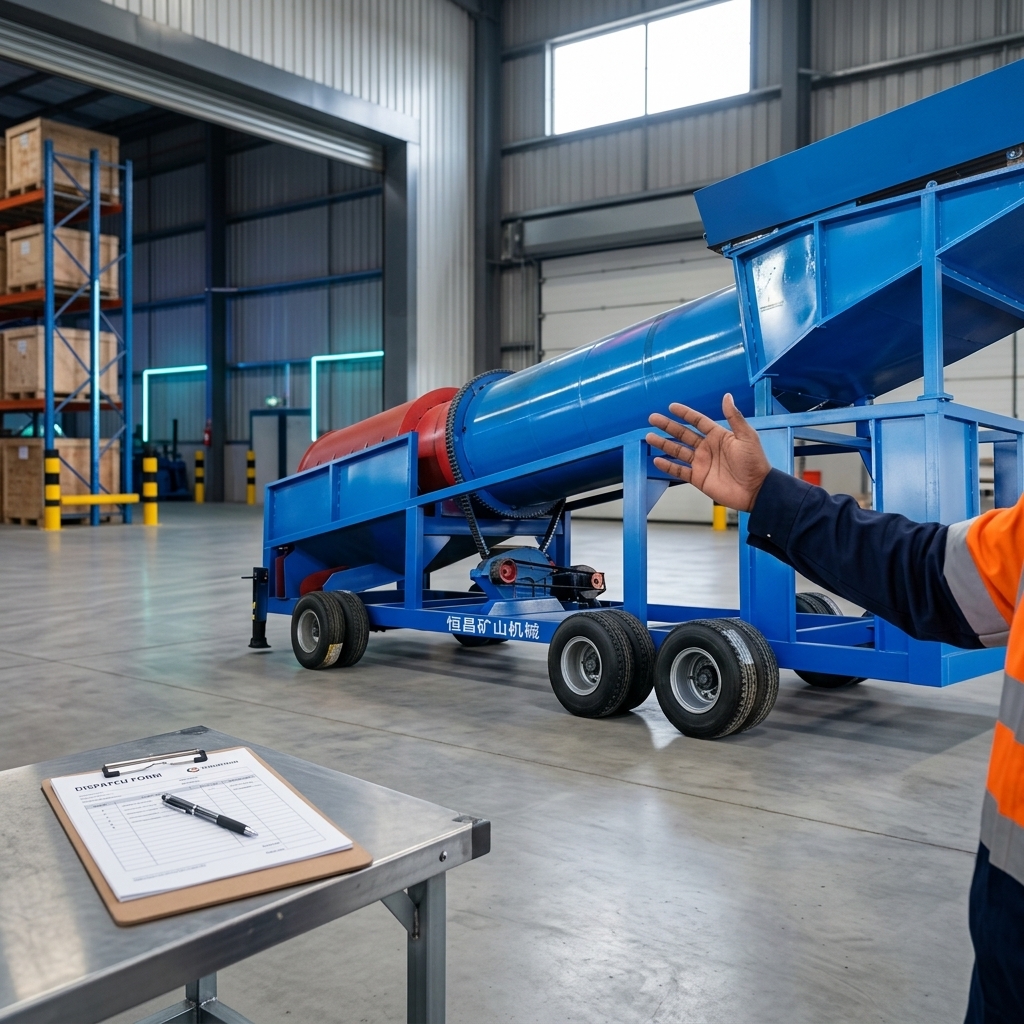

A rotating drum gold separator designed for washing, scrubbing and separating alluvial material. Built for high-capacity mineral recovery with durable construction, heavy-duty drive components and high-pressure water flushing.
Heavy-Duty Construction
High-Capacity Scrubbing
High-Pressure Water Flushing
Multiple Model Options
Guide Price
R 470 000
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
30–180 T/h
Capacity Range
Up to 230 mm
Max Material Size
0.4–0.5 MPa
Water Pressure
15–55 kW
Power Range
18–28 r/min
Rotation Speed
Business Solution Overview
Improved Recovery Potential: The machine is specifically designed to extract gold and other valuable minerals from alluvial deposits. Its rotating drum scrubbing and separation process supports high recovery rates by breaking down clay-bound feed more effectively.
Built for High Throughput Operations: With models rated from 30–50 T/h up to 160–180 T/h, the range supports both smaller and larger processing requirements. This makes it suitable for operations aiming to increase output without compromising washing performance.
Lower Downtime Through Heavy-Duty Construction: Thickened steel plates, robust bearings, gears and rollers are intended for harsh mining environments and intense operation. Durable construction can help reduce maintenance interruptions and support more reliable production.
Efficient Material Cleaning and Separation: The long drum design retains material for longer washing time, while high-pressure water flushing helps clean the drum interior. Together with the exit screen, this supports more complete separation of oversize material from fines.
Flexible Model Selection: Multiple models are listed with different feed size, capacity, power and weight ratings. This gives mining businesses the ability to choose a machine aligned to their site conditions and processing targets.

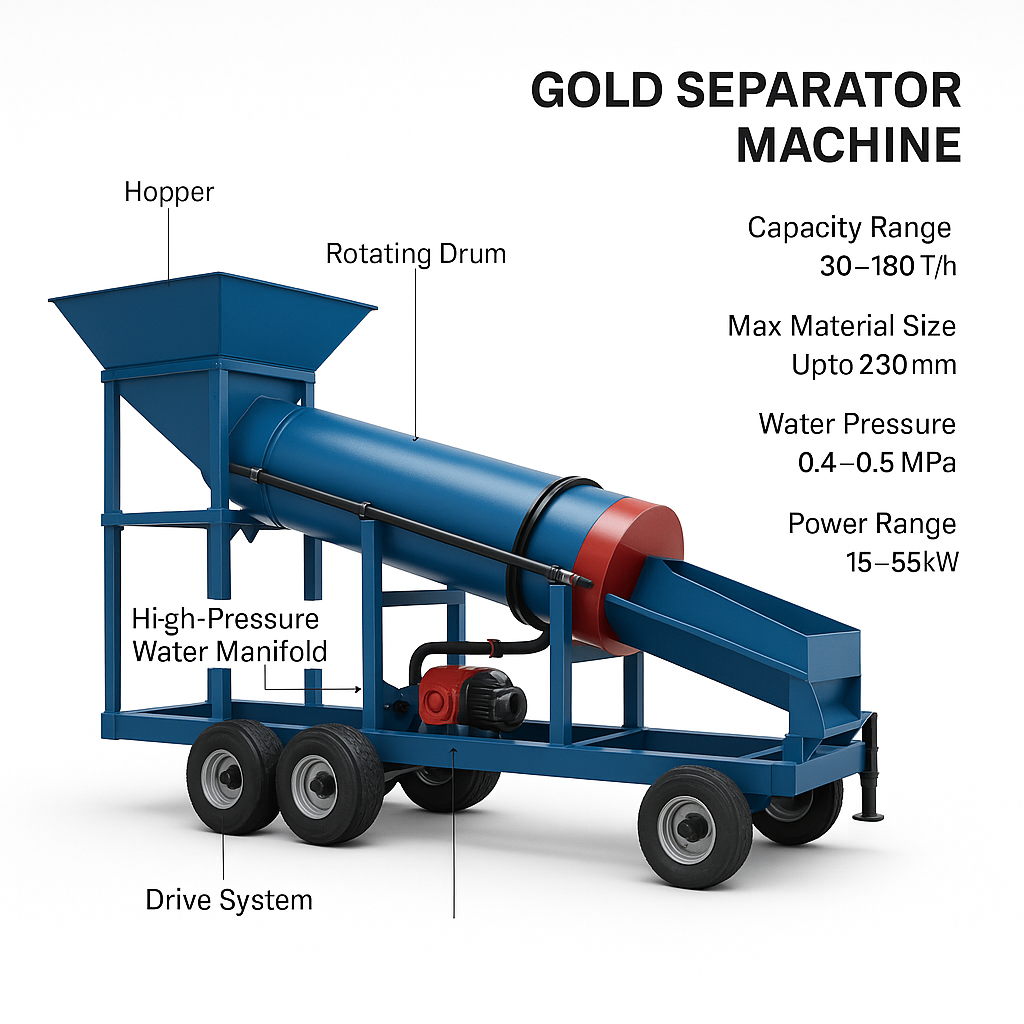

3D Sketch
AI-generated labelled 3D render — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Feed alluvial material into the drum
Scrub and break down clays and soft oxides
Wash with high-pressure water flushing
Separate oversize from fines at the screen
Why Choose Gold Separator Machine?
Autogenous Rotating Drum
The drum uses pebbles and rocks within the feed to disintegrate clays and soft oxides, improving the preparation of alluvial material for separation.
High Capacity Processing
Engineered for high-power scrubbing, the machine is suited to processing large volumes of material across a range of model sizes.
Extended Washing Retention
Its long drum design keeps material inside for longer, allowing more thorough washing and more complete separation.
Durable Mining Construction
Thickened steel plates and heavy-duty mechanical components are designed to withstand harsh mining conditions and intense operating cycles.
High-Pressure Water Flushing
High-pressure water helps clean the drum interior during operation, supporting more effective washing and separation.
Large Material Acceptance
The machine can handle material sizes up to 230 mm, making it suitable for coarse alluvial feed depending on the selected model.
Technical Specifications
Model RXT1030 Feeding Size
≤100 mm
Model RXT1030 Water Pressure
0.4–0.5 MPa
Model RXT1030 Capacity
30–50 T/h
Model RXT1030 Rotation Speed
25–28 r/min
Model RXT1030 Power
15 kW
Model RXT1030 Weight
4,800
Model RXT1230 Capacity
50–70 T/h
Model RXT1230 Power
18.5 kW
Model RXT1545 Capacity
70–120 T/h
Model RXT1545 Feeding Size
≤150 mm
Model RXT1545 Power
30 kW
Model RXT1560 Capacity
80–130 T/h
Model RXT1560 Power
37 kW
Model RXT1845 Capacity
90–130 T/h
Model RXT1845 Feeding Size
≤170 mm
Model RXT1860 Capacity
100–140 T/h
Model RXT2060 Capacity
120–160 T/h
Model RXT2265 Capacity
160–180 T/h
Model RXT2265 Feeding Size
≤230 mm
Model RXT2265 Power
55 kW
Industries Served
Alluvial Gold Mining
Mineral Processing Plants
Precious Mineral Recovery
What's Included
Gold Separator Machine
Rotating drum scrubber
Exit screening section
Electric motor and gear drive system
