Mineral Processing & Metallurgy
Gold, Copper and Ore Flotation Machine
Mechanical flotation equipment for mineral separation and beneficiation
Industrial flotation concentrator for separating copper, zinc, lead, nickel, gold and other minerals. Designed for mixing, aeration and foam recovery in beneficiation, roughing and cleaning applications.
Mineral Beneficiation Equipment
Adjustable Aeration
Low Unit Power Consumption
Suitable For Roughing And Cleaning
Guide Price
R 1 070 123
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
0.35-5.8 m³
Specification Volume Range
0.18-6 m³/min
Capacity Range
2.2-17 kW
Power Range
240-500 r/min
Impeller Speed Range
450-3900 kg
Single Cell Weight Range
Business Solution Overview
Scalable Throughput For Plant Growth: With XJZ models covering 0.35-5.8 m³ cell volume and 0.18-6 m³/min capacity, this flotation machine range can support different plant sizes and duty requirements. That flexibility helps beneficiation operations match equipment selection to current throughput while leaving room to expand processing capability over time.
Lower Operating Cost Per Tonne: The aerated agitated design combines mechanical stirring with forced external air supply, while the impeller has no suction function and operates at lower speed. According to the product description, this supports relatively low unit power consumption and reduced overall power demand, helping improve operating efficiency in continuous mineral processing.
Improved Recovery Control: Adjustable aeration, reagent mixing, and liquid level control help operators maintain flotation conditions according to ore type and process targets. More stable foam formation and effective scraping of mineralised foam can support better concentrate recovery and more consistent beneficiation performance.
Versatile Revenue Across Multiple Ores: The machine is intended for separating copper, zinc, lead, nickel, gold and other non-ferrous metals, and it can also be used for roughing and cleaning of ferrous metals and nonmetals. This broad application range makes it suitable for plants serving varied ore bodies, reducing the need for highly specialised single-duty equipment.
Strong Value At Industrial Scale: At a guide price of ZAR 1,070,123.00, this solution is positioned as heavy-duty flotation equipment for beneficiation plants rather than light laboratory machinery. Its combination of large processing capacity, adjustable aeration and multi-mineral suitability can help justify capital investment where reliable separation performance directly affects plant output and concentrate value.

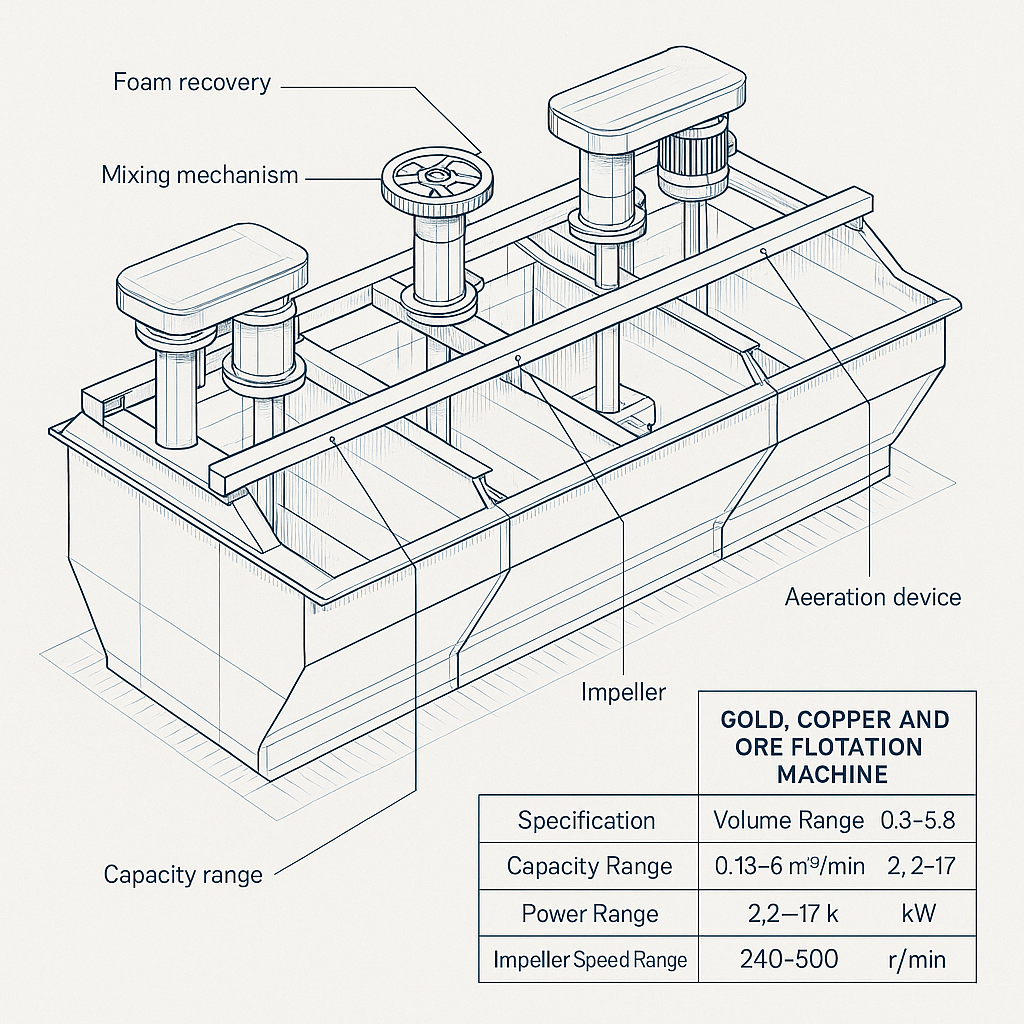

3D Sketch
AI-generated labelled 3D blueprint sketch — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Mix Slurry And Reagents
Aerate Pulp
Attach Minerals To Bubbles
Form Mineralised Foam
Scrape Off Concentrate
Why Choose Gold, Copper and Ore Flotation Machine?
Mechanical Stirring Flotation Design
The machine uses mechanical agitation to mix slurry during flotation. This supports stable pulp mixing and air distribution through the flotation process.
Adjustable Aeration Rate
Aeration can be increased or decreased according to process demand and maintained at a constant level. This helps optimise separation conditions for different ores and operating targets.
Low Power Consumption
The impeller has no suction function, so operating speed is lower and power consumption is reduced. The design also offers low power consumption per unit capacity.
Reduced Mud Formation For Brittle Minerals
According to the product description, brittle minerals are not easily turned into mud during operation. This can support cleaner flotation performance on sensitive materials.
Foam Recovery And Liquid Level Control
The machine allows gate height adjustment and liquid level control so useful foam can be scraped out effectively. This supports concentrate recovery during flotation.
Suitable For Multiple Mineral Duties
It is used for non-ferrous metal separation and can also serve roughing and cleaning duties for ferrous metals and nonmetals. This makes it suitable for diverse beneficiation plants.
Technical Specifications
SKU
1600437119770
Application
Separation of copper, zinc, lead, nickel, gold and other non-ferrous metals; roughing and cleaning of ferrous metals and nonmetals
Flotation Machine Types Mentioned
CHF-X, XJC, BS-C, KYF, BS-K, LCH-X, CLF, JJF, SF, XJZ, XCF, YX, BF
XJZ-3.5 Volume
0.35 m³
XJZ-3.5 Cell Size
700 x 700 x 700 mm
XJZ-3.5 Capacity
0.18-0.4 m³/min
XJZ-3.5 Power
2.2/0.55 kW
XJZ-6.2 Volume
6.2 m³
XJZ-6.2 Cell Size
900 x 900 x 850 mm
XJZ-6.2 Capacity
0.3-0.9 m³/min
XJZ-6.2 Power
4/1.1 kW
XJZ-11 Volume
1.1 m³
XJZ-11 Capacity
0.6-1.6 m³/min
XJZ-11 Power
5.5/1.1 kW
XJZ-28 Volume
2.8 m³
XJZ-28 Capacity
1.5-3 m³/min
XJZ-28 Power
11/1.1 kW
XJZ-58 Volume
5.8 m³
XJZ-58 Capacity
3-6 m³/min
XJZ-58 Power
17/1.5 kW
Optional Modules
Compressed Air System
External Fan
Sand Pump
Industries Served
Copper Processing
Gold Processing
Lead And Zinc Processing
Nickel Processing
Ferrous Metal Beneficiation
Nonmetal Beneficiation
What's Included
Flotation machine
Mechanical stirring device
Scraper
Gate liquid level adjustment arrangement
