Gold Centrifugal Concentrator
Gravity concentration for gold and other high-density minerals
Gold centrifugal concentrator for recovering ultrafine ore particles through high-speed gravity separation. Suitable for placer gold, hard rock gold recovery, and retreatment of old tailings.
Gold Recovery Equipment
Gravity Separation
Ultrafine Particle Recovery
Placer And Hard Rock Use
Guide Price
R 149 122
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
0.25-100 T/H
Capacity Range
0-6 mm
Feed Particle Size
0.75-18.5 kW
Motor Power
360-800 r/min
Cone Rotational Speed
0.04-0.2 MPa
Water Pressure
Business Solution Overview
Improved Recovery of Fine Particles: The concentrator uses high-speed spinning to generate strong centrifugal force, strengthening gravity separation and helping recover ultrafine ore particles that may be difficult to capture with conventional methods.
Versatile Mineral Processing Application: Beyond gold, the machine is described for use in recovering tungsten, lead, manganese and iron. This makes it suitable for operations processing a range of high-density minerals.
Suitable for Multiple Mining Scenarios: The equipment can be used for placer gold mining, hard rock mining and retreatment of old tailings. This flexibility supports broader plant utilisation across different ore sources.
Scalable Model Range: The listed KDL series covers capacities from 0.25-0.30 T/H up to 80-100 T/H, allowing buyers to select a machine size aligned with pilot, small-scale or larger throughput requirements.
Gravity-Based Concentration Solution: As a dedicated gravity concentration machine for natural gold and other dense minerals, it provides a focused processing solution for operations prioritising physical separation methods.

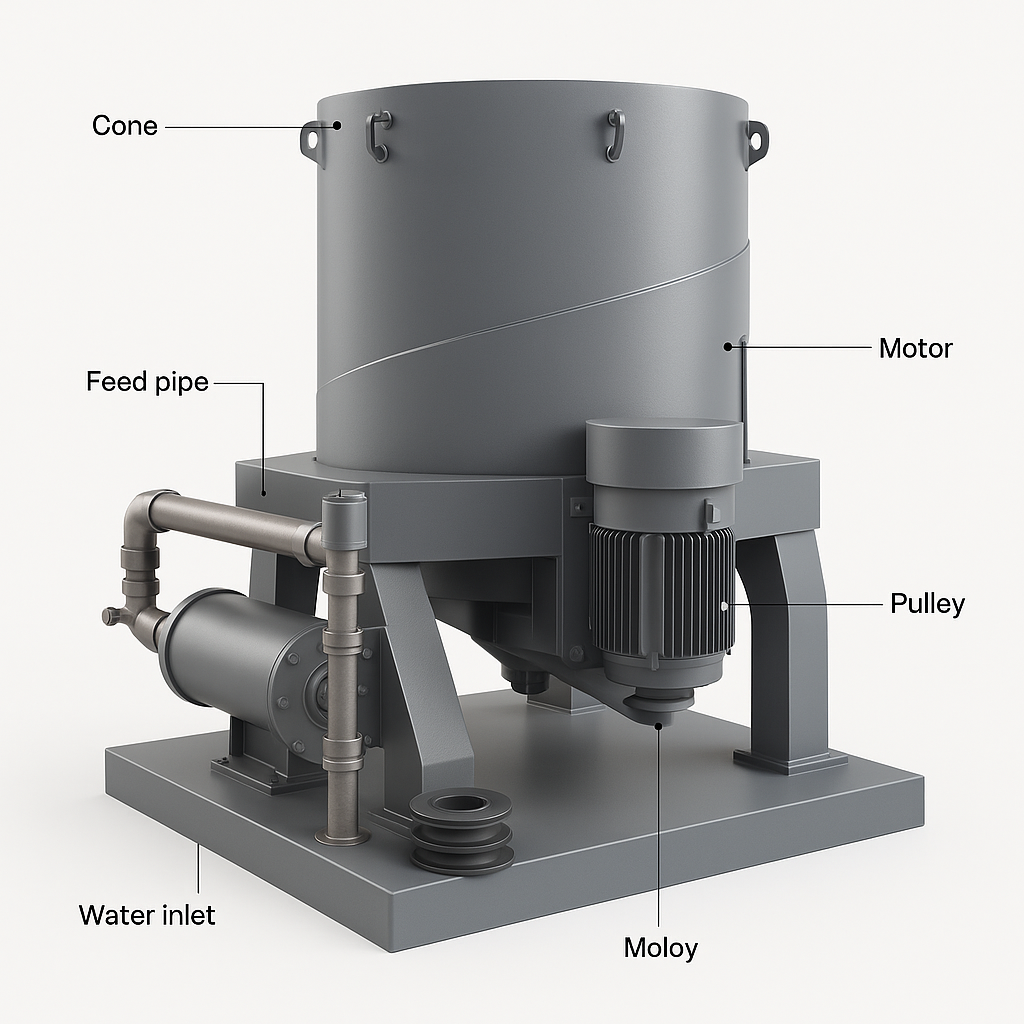

3D Sketch
AI-generated labelled 3D render — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Feed Ore
Spin At High Speed
Gravity Separation
Water Recoil
Collect Concentrate
Why Choose Gold Centrifugal Concentrator?
Enhanced Gravity Separation
Strong centrifugal force produced by high-speed spinning strengthens the gravity separation process for efficient concentration of dense minerals.
Designed For Fine Gold Recovery
The machine is specifically described as effective for recovering ultrafine ore particles, supporting improved gold concentration performance.
Placer And Hard Rock Application
It can be used in placer gold mining as well as hard rock mining to recover natural gold across different mining conditions.
Tailings Retreatment Capability
The concentrator is also used to recover gold from old tailings, helping operations extract additional value from previously processed material.
Multi-Mineral Use
In addition to gold, the equipment is used for tungsten, lead, manganese and iron recovery where high-density mineral separation is required.
Technical Specifications
Model Range
KDL19, KDL30, KDL60, KDL80, KDL100
Capacity
0.25-0.30 / 3-5 / 15-20 / 40-50 / 80-100 T/H
Feed Particles
0-3 / 0-4 / 0-6 / 0-6 / 0-6 mm
Feed Density
0-50%
Recoil Of Water
1.5-2 / 4-6 / 10-15 / 17-25 / 40-60 T/H
Concentrate Production
2-3 / 10-20 / 30-40 / 60-70 / 70-80 kg per time
Motor Power
0.75 / 3 / 7.5 / 11 / 18.5 kW
Cone Rotational Speed
800 / 600 / 460 / 400 / 360 r/min
Water Pressure
0.04 / 0.1 / 0.16 / 0.18 / 0.2 MPa
Overall Size
790×785×790 / 1150×1360×1250 / 1970×1670×1750 / 2300×1800×2200 / 2500×2000×2400 mm
Weight
300 / 500 / 1300 / 1800 / 2800 kg
Industries Served
Gold Processing Plants
Placer Gold Mining
Hard Rock Mining
Tailings Retreatment
Heavy Mineral Recovery
