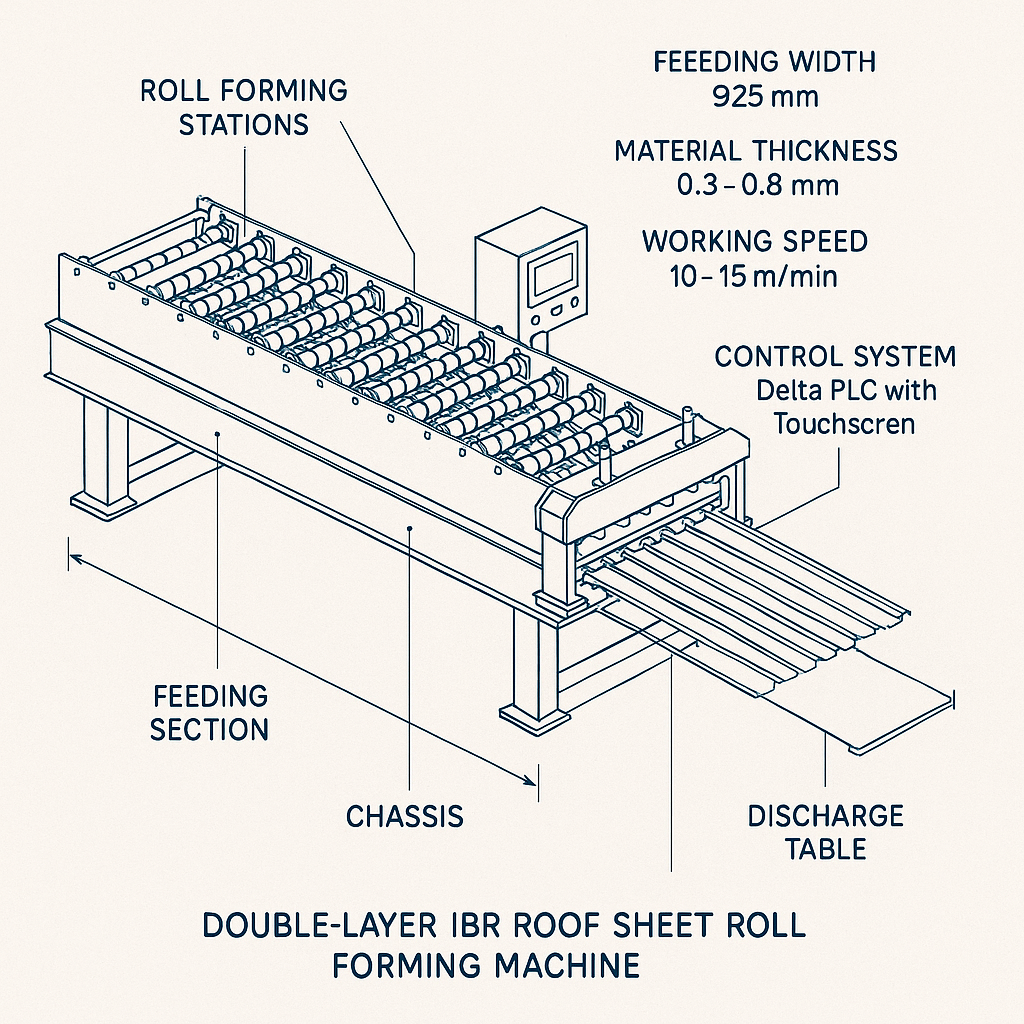

Double-Layer IBR Roof Sheet Roll Forming Machine
Efficient double-layer roll forming for IBR roofing sheet production
A roll forming machine for producing IBR roofing sheets from aluzinc, galvanized steel and coloured steel coils. It combines 925 mm feeding width, 10–15 m/min working speed and Delta PLC touchscreen control for organised roofing production.
Delta PLC Control
Double-Layer Forming
Custom Power Supply Available
Custom Machine Colour
Guide Price
R 638 750
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
925 mm
Feeding Width
0.3–0.8 mm
Material Thickness
10–15 m/min
Working Speed
Delta PLC with Touchscreen
Control System
7,800 × 1,500 × 1,400 mm
Machine Size
4.5 Ton
Machine Weight
Business Solution Overview
Versatile Material Use: The machine processes aluzinc, galvanized steel and coloured steel coils, providing flexibility in raw material selection and finished roofing sheet production.
Efficient Production Output: A working speed of 10–15 m/min supports steady sheet production for roofing orders and project supply requirements.
Durable Machine Structure: The specified 350H steel main frame, 16 mm side plates and forged steel rollers provide a robust forming structure for regular production use.
Operator-Friendly Control: Delta PLC control with a touchscreen interface supports practical machine management and repeatable day-to-day operation.
Supports Roofing Supply Growth: The machine is suited to manufacturers supplying residential, commercial and industrial roofing markets, supporting expanded roof sheet production capacity.
Complete End-to-End Process
Feed Coil Material
Roll Form Sheet Profile
Cut to Length
Collect Finished Roof Sheets
Why Choose Double-Layer IBR Roof Sheet Roll Forming?
Broad Material Compatibility
Designed for aluzinc, galvanized steel and coloured steel coils, the machine supports a range of roofing production requirements.
Practical Production Speed
The 10–15 m/min working speed supports efficient output for ongoing roofing sheet manufacturing.
Stable Steel Frame Construction
A 350H steel frame and 16 mm side plates provide a solid structure for forming operations.
PLC-Controlled Operation
Delta PLC control with a touchscreen interface supports straightforward machine management and repeatable operation.
Precision Forming Components
45# forged steel rollers with hard chrome and CR12 cutting blades are specified for the forming and cutting process.
Built for Roofing Supply
Suited to manufacturers supplying formed roofing sheets for residential, commercial and industrial projects.
Technical Specifications
Processing Material
Aluzinc / Galvanized Steel / Colored Steel Coil
Material Thickness
0.3–0.8 mm
Feeding Width
925 mm
Main Motor Power
4 kW
Hydraulic Pump Power
4 kW
Shaft Diameter
75 mm
Forming Steps
13/16
Main Frame
350H Steel Frame
Side Plate Thickness
16 mm
Roller Material
45# Forged Steel with Hard Chrome
Control System
Delta PLC with Touchscreen
Cutting Blade Material
CR12
Working Speed
10–15 m/min
Transmission Way
1 Inch Chain Drive
Machine Size
7800 x 1500 x 1400 mm
Machine Weight
4.5 Ton
Power Supply
380V, 3 Phase, 50Hz or Custom
Machine Colour
Blue or Custom
Industries Served
Residential Construction
Commercial Projects
Industrial Roofing
Roofing Manufacturers
Building Material Suppliers
What's Included
Double-Layer IBR Roof Sheet Roll Forming Machine
