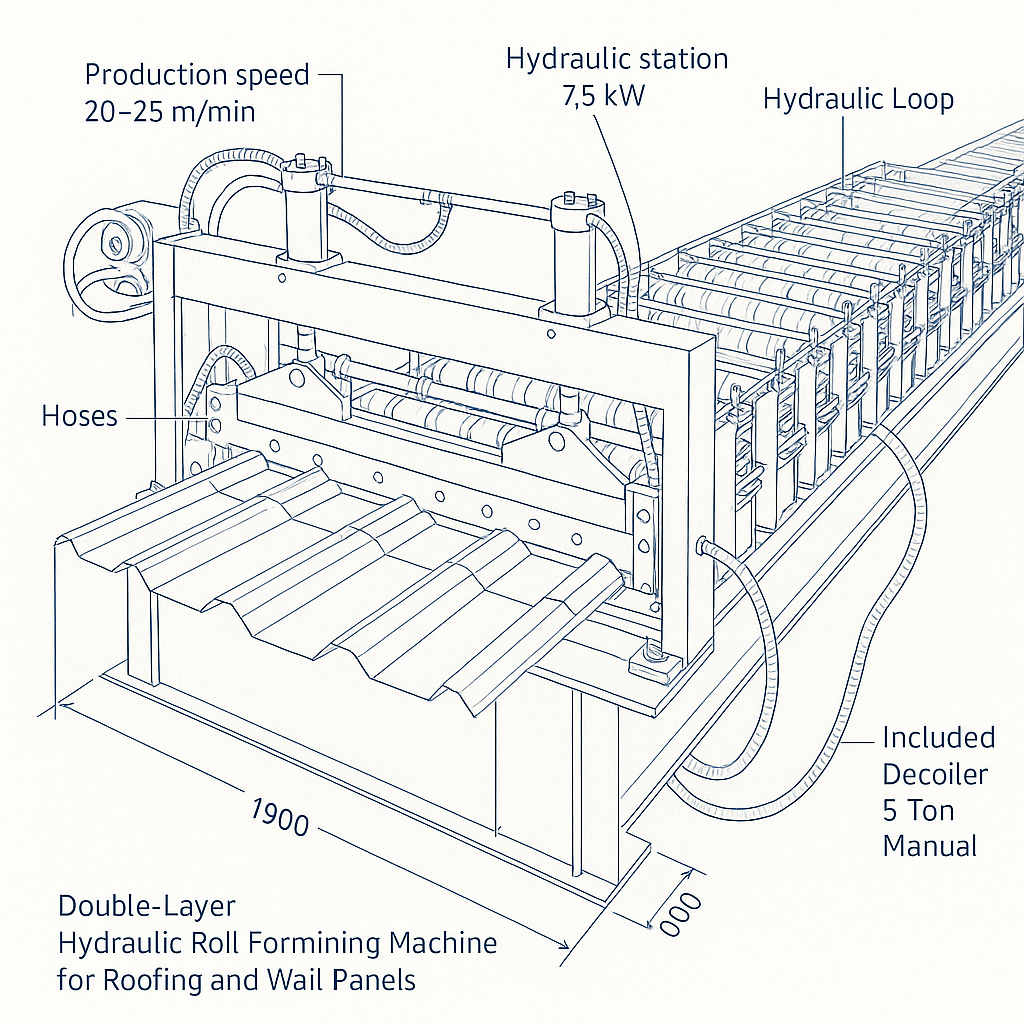

Double-Layer Hydraulic Roll Forming Machine for Roofing and Wall Panels
Two Profiles From One Compact Forming Line
A double-layer hydraulic roll forming machine for GI, GL, PPGI and PPGL roofing and wall-cladding panels. It combines hydraulic drive, PLC touch-screen control and automatic cutting for efficient profile production.
Fully Hydraulic Drive
PLC Touch-Screen Control
Automatic And Manual Modes
5-Ton Manual Decoiler Included
Hard Chrome-Plated Rollers
Guide Price
R 939 850
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
20–25 m/min
Production Speed
0.3–0.6 mm
Material Thickness
7.5 kW
Hydraulic Station Power
5-Ton Manual
Included Decoiler
PLC With Full-Colour Touch Screen
Control System
Hardened Cr12MoV
Cutting Blades
Business Solution Overview
Flexible Production Output: The double-layer layout enables two different profile types to be produced on one machine, providing greater flexibility for roofing and wall-cladding production.
Space-Efficient Investment: Combining two forming layers into one compact system helps reduce floor-space requirements compared with using separate forming lines.
Consistent Profile Quality: Ground, polished and hard chrome-plated rollers support smooth forming, while hydraulic shearing helps deliver clean finished cuts.
Hydraulic Production System: The fully hydraulic drive and 7.5 kW hydraulic station are designed to support continuous production at 20–25 metres per minute.
Durable Machine Construction: A 350H steel frame, 45# steel rollers, protected bearings and high-strength chains support long-term operation in sheet-forming environments.
Complete End-to-End Process
Decoiling
Feeding
Roll Forming
Hydraulic Cutting
Finished Profile Output
Why Choose Double-Layer Hydraulic Roll Forming Mach?
Double-Layer Design
Produces two different profile types within one machine for flexible roofing and wall-cladding production.
Precision Rollers
45# steel rollers are ground, polished and hard chrome plated to support smooth forming of coated steel coils.
Fully Hydraulic Drive
The fully hydraulic drive system provides power transmission for continuous production.
Hydraulic Shearing
The hydraulic cutting system uses hardened Cr12MoV blades to produce clean finished cuts.
PLC Touch-Screen Control
A PLC with full-colour touch screen supports production control in automatic and manual operating modes.
Heavy-Duty Steel Frame
The 350H steel frame provides a stable structure for sheet-forming operations.
Technical Specifications
Machine Type
Double Layer Hydraulic Roll Forming Machine
Application
Metal Roofing And Wall Panel Production
Suitable Materials
Galvanized, Galvalume, Pre-Painted Galvanized, Pre-Painted Galvalume Steel Coils
Material Thickness
0.3–0.6 mm
Production Speed
20–25 metres per minute
Frame Material
350H Steel
Roller Material
45# Steel
Roller Finish
Ground, Polished, Hard Chrome Plated
Drive System
Fully Hydraulic
Hydraulic Station Power
7.5 kW
Cutting System
Hydraulic Shearing
Cutting Blades
Hardened Cr12MoV
Control System
PLC With Full-Colour Touch Screen
Operating Modes
Automatic And Manual
Included Decoiler
5-Ton Manual Decoiler
Main Sections
Feeding Table, Roll Forming Section, Hydraulic Cutting Unit, Hydraulic Power Station, Computerized Control Cabinet
Components
Precision Shafts, Protected Bearings, High-Strength Chains
Voltage
Customizable
Industries Served
Building Construction
Structural Fabrication
Roofing Sheet Production
Wall Cladding Manufacturing
What's Included
5-ton manual decoiler
Feeding table
Roll forming section
Hydraulic cutting unit
Hydraulic power station
Computerized control cabinet
