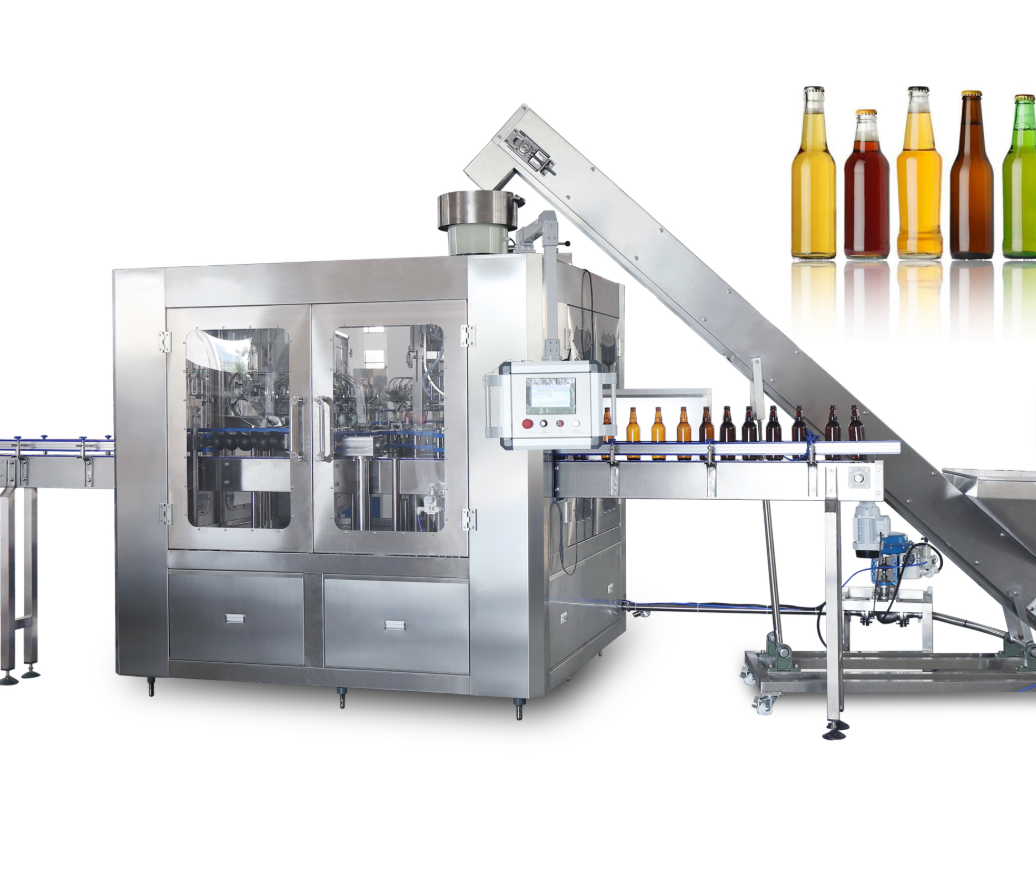

Compact Isobaric Beer Filling Line
Precision, low-foam filling for craft beer and malt beverages
A compact automatic line for isobaric filling of beer and malt beverages. It combines customizable output, low-foam operation, double-vacuum technology and PLC intelligent control for small to medium breweries.
Customizable Capacity
PLC Intelligent Control
SUS304/316 Stainless Steel
Double Vacuum Technology
1-Year Warranty
Guide Price
R 463 396
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
2,000–30,000 BPH
Customizable Capacity
200 mL–2,000 mL
Filling Volume
99%
Filling Accuracy
PLC Intelligent Control
Control System
3,000 × 2,300 × 2,400 mm
Dimensions
4,200 kg
Weight
Business Solution Overview
Production Flexibility: Customizable capacity from 2,000 to 30,000 BPH and multiple filling-volume options allow the line to be aligned with differing production requirements. This supports breweries with varying output targets and package formats.
Improved Filling Quality: Isobaric beer filling is designed to support CO2 retention in carbonated beverages. The low-foam filling approach helps minimise product loss during operation.
Automated Efficiency: The PLC intelligent control system supports automatic operation and consistent machine management. This can reduce manual handling in the filling process.
Durable Stainless Steel Construction: SUS304/316 stainless steel construction is suited to beverage production environments. The machine is designed for long-term use in brewery filling operations.
Warranty Support: A 1-year warranty is included with the machine. This provides support assurance for the initial equipment investment.
Complete End-to-End Process
Isobaric Filling
Double Vacuum Operation
PLC Automated Control
Bottle Closure Compatibility
Why Choose Compact Isobaric Beer Filling Line?
Isobaric Filling Technology
Designed to support CO2 retention during the filling of beer and other carbonated beverages. This helps preserve beverage quality in brewery applications.
Low-Foam Operation
The low-foam filling design helps minimise product loss and supports a cleaner process. It is suited to beverage production where waste reduction matters.
Double Vacuum Technology
Double vacuum technology supports the filling process in brewery applications. It is included as part of the machine's operating technology.
PLC Intelligent Control
The PLC intelligent control system supports automatic operation and stable machine management. This helps improve consistency across production runs.
Multiple Closure Compatibility
The machine is compatible with Screw Cap, Crown Cap, Twist Off Cap and Ring Off Cap bottle closures. This supports a range of packaging formats.
Brewery-Focused Configuration
Suitable for small to medium-sized breweries producing craft beer and fruit beer. It also supports sparkling wine and selected spirits applications.
Technical Specifications
Capacity
Customizable from 2,000–30,000 BPH
Filling Volume
200 mL, 300 mL, 400 mL, 500 mL, 1,000 mL, 2,000 mL
Filling Accuracy
99%
Machine Material
SUS304/316 stainless steel
Control System
PLC intelligent control system
Operation
Automatic
Filling Technology
Isobaric beer filling
Vacuum Technology
Double vacuum technology
Bottle Cap Types
Screw Cap, Crown Cap, Twist Off Cap, Ring Off Cap
Dimensions (L × W × H)
3,000 × 2,300 × 2,400 mm
Weight
4,200 kg
Warranty
1 Year
Optional Modules
Customizable Solutions
Different Filling Volumes
Multiple Cap Type Compatibility
Industries Served
Craft Breweries
Malt Beverage Producers
Sparkling Wine Producers
Spirits Bottling
Beverage Packaging Operations
What's Included
Compact complete line isobaric beer filling machine
1-Year Warranty
