CLUM Ultrafine Vertical Powder Grinding Mill
Ultrafine vertical grinding for mineral powder production
Ultrafine vertical roller mill for grinding non-flammable, non-explosive mineral materials into fine powder. Designed for high-capacity production with integrated crushing, drying, grinding, separating and conveying functions.
High Grinding Efficiency
Integrated Drying and Grinding
Closed Negative-Pressure Operation
Low Wear Rate
Low Noise Operation
Guide Price
R 4 705 049.82
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
Moh's Hardness <9.3
Material Suitability
Up to 15%
Drying Capacity
20-30% Saving
Power vs Ball Mill
<10 mm
Feed Size
3-19 t/h
Output Range
3 Models
Available Configurations
Business Solution Overview
Lower Energy Consumption: The mill is described as saving 20% to 30% power consumption compared with a ball mill. For powder producers, this can improve operating efficiency and reduce energy cost over continuous production cycles.
Integrated Processing Functions: By combining crushing, drying, grinding, separating and conveying in one machine, the system can simplify plant layout and reduce the need for multiple standalone process units.
Supports Moisture Handling: The machine offers strong drying capacity and can dry and grind raw materials with moisture content as much as 15%. This helps processors handle a wider range of feed conditions within one grinding solution.
Cleaner, Quieter Operation: The vertical grinding mill uses totally closed negative-pressure operation to reduce dust during operation. Noise is also stated to be 20 to 25 decibels lower due to no direct contact between grinding rollers and grinding disc.
Reduced Wear and Contamination: The stated metal wear rate of only 5 to 10 g/t supports lower wear-related maintenance and helps limit metallic pollution in processed powder.

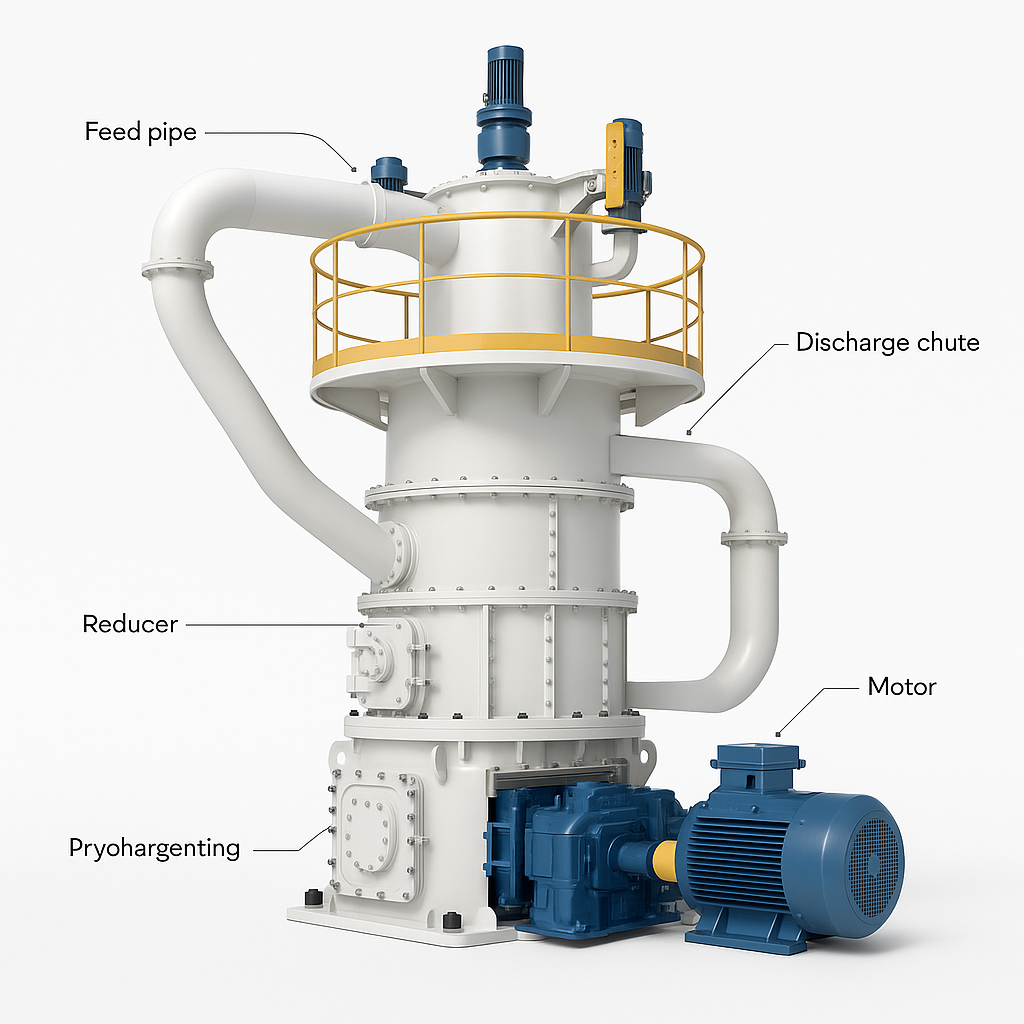

3D Sketch
AI-generated labelled 3D render — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Grinding disc driven by motor and reducer
Material fed onto grinding disc
Rollers crush material into fine powder
Hot air carries powder to classifier
Classifier separates qualified powder
Unqualified powder returned for regrinding
Why Choose CLUM Ultrafine Vertical Powder Grinding?
High Grinding Efficiency
The mill is stated to save 20% to 30% power consumption compared with a ball mill. Energy savings can increase further as moisture content rises.
Strong Drying Capacity
It can dry and grind raw materials with moisture content as much as 15%. This supports more flexible feed handling in mineral powder production.
Multiple Functions in One System
The machine integrates crushing, drying, grinding, separating and conveying. This makes it suitable for streamlined powder processing lines.
Low Noise Design
Because there is no direct contact between the grinding rollers and grinding disc, metallic impact is avoided. Noise is stated to be 20 to 25 decibels lower.
Closed Dust-Controlled Operation
Totally closed negative-pressure operation is employed by the mill. This helps prevent dust during operation.
Low Wear and Reduced Metallic Pollution
Metal wear is stated at only 5 to 10 g/t. This supports lower wear rates while helping reduce metallic contamination in the finished powder.
Technical Specifications
Suitable Material Hardness
Non-flammable and non-explosive materials under 9.3 Moh's hardness
Feed Size
<10 mm
Moisture of Feeding Material
<3%
Drying Capacity
Up to 15% moisture content
CLUM1425 Working Diameter
1400 mm
CLUM1632 Working Diameter
1600 mm
CLUM1736 Working Diameter
1700 mm
Number of Rollers
3
Number of Classifiers
CLUM1425: 5; CLUM1632: 7; CLUM1736: 7
Classifier Power
CLUM1425: 5×15 kW; CLUM1632: 7×15 kW; CLUM1736: 7×(15-18.5) kW
Main Unit Power
CLUM1425: 250 kW; CLUM1632: 315 kW; CLUM1736: 355 kW
Blower Power
CLUM1425: 200 kW; CLUM1632: 250 kW; CLUM1736: 315 kW
Output at <2 μm = 34%
CLUM1425: 11-14 t/h; CLUM1632: 13-17 t/h; CLUM1736: 15-19 t/h
Output at <2 μm = 46%
CLUM1425: 7-8 t/h; CLUM1632: 9-10 t/h; CLUM1736: 11-12 t/h
Output at <2 μm = 60%
CLUM1425: 3-4 t/h
Reference Material
Based on calcite
Particle Size Measurement
Measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments
Industries Served
Mineral Processing Plants
Industrial Powder Production
Ore Grinding Operations
Slag and Fly Ash Processing
What's Included
Vertical roller mill system
Grinding disc
Rollers
Classifier
Blower
