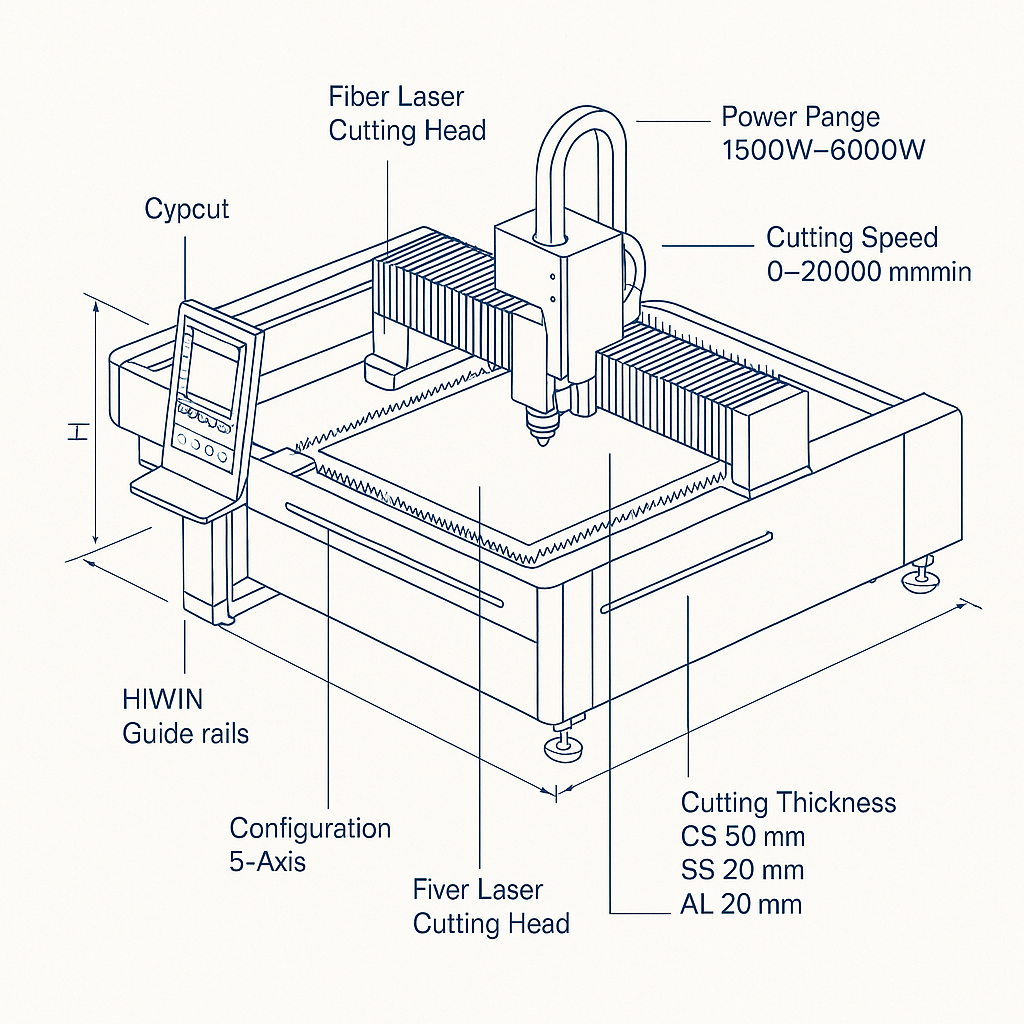

CE Certified 1500W–6000W Gantry Type 5-Axis Metal Laser Cutting Machine
High-accuracy 5-axis fiber laser cutting with Yaskawa servo and Cypcut control
A CE-certified gantry-type 5-axis fiber laser cutting machine with a 1500W–6000W power range, Yaskawa servo motors, HIWIN guide rails and Cypcut control. Built for accurate, long-life cutting of sheet metal and supports AI, PLT and DXF files.
CE Certified
Yaskawa Servo Motors
HIWIN Guide Rails
Cypcut Control System
2-Year Warranty
Guide Price
R 459 517.93
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
1500W–6000W
Power Range
5-Axis
Configuration
0–20,000 mm/min
Cutting Speed
CS 50 mm / SS 20 mm / AL 20 mm
Cutting Thickness
Cypcut with FUCUT8000
Control System
2 Years
Warranty
Business Solution Overview
High Return on Investment: A 5-axis fiber laser of this class can take on complex, high-accuracy metal cutting work that would otherwise be outsourced or done on slower processes, helping a fabrication business win more varied contracts and improve throughput per shift.
Trusted Component Brands: Yaskawa servo motors, HIWIN guide rails and a Cypcut control system are established names in industrial motion and laser control, which supports uptime, serviceability and consistent cut quality over the life of the machine.
CE Certified Compliance: The machine carries CE certification, giving buyers a recognised compliance reference point when specifying equipment for regulated production environments and tender requirements.
Extended Warranty Cover: A 2-year machine warranty and a 1-year warranty on core components reduce the risk of early ownership costs, while the supplied machinery test report and video outgoing inspection provide documented proof of performance before dispatch.
Wide Material and Thickness Capability: With a 1500W–6000W power range and rated cutting thickness of 50 mm carbon steel, 20 mm stainless steel and 20 mm aluminium, one machine can cover a broad spread of sheet metal jobs, reducing the need for multiple cutting assets.
Why Choose CE Certified 1500W–6000W Gantry Type 5-A?
5-Axis Cutting Flexibility
The 5-axis configuration enables accurate cutting of complex shapes and profiles, extending capability beyond standard flat sheet cutting.
Cypcut Control with FUCUT8000
An industry-recognised control platform manages cutting parameters and supports AI, PLT and DXF files for straightforward integration with existing design workflows.
Trusted Motion Components
Yaskawa servo motors and HIWIN guide rails deliver smooth, stable and repeatable motion for consistent cut quality.
Water Cooling System
Water cooling maintains thermal stability during continuous-wave operation, supporting long production runs and component longevity.
Fine Small-Hole Cutting
The machine is capable of fine small-hole cutting, making it suitable for detailed metal components and precision sheet metal work.
Long Service Life
A gantry-type structure combined with quality branded components is designed for durable, long-term industrial use.
Technical Specifications
Laser Type
Fiber Laser
Power Range
1500W–6000W
Configuration
5-Axis
Applicable Material
Metal
Cutting Thickness
CS 50 mm, SS 20 mm, AL 20 mm
Products Handled
Sheet Metal
Cutting Speed
0–20,000 mm/min
Feature
Fine Small Hole Cutting
Mode of Operation
Continuous Wave
Cooling Mode
Water Cooling
Control System Brand
Cypcut
Control Software
FUCUT8000
Servo Motor Brand
Yaskawa
Guide Rail Brand
HIWIN
Laser Head Brand
Bochi/Ratool
Graphic Format Supported
AI, PLT, DXF
CNC or Not
Yes
Key Selling Points
High-Accuracy
Application
Laser Cutting
Condition
New
Warranty
2 Years
Warranty of Core Components
1 Year
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Weight
13000 KG
Single Package Size
300 x 150 x 160
Industries Served
Metal Fabrication Workshops
Sheet Metal Processing
General Manufacturing
Structural Steel & Profiles
Automotive & Transport Components
What's Included
CE Certified 1500W–6000W Gantry Type 5-Axis Metal Laser Cutting Machine
Cypcut control system with FUCUT8000 software
Yaskawa servo motors
HIWIN guide rails
Bochi/Ratool laser head
Machinery test report
Video outgoing inspection
2-year machine warranty
1-year warranty on core components
