Ball Mill Grinding Machine for Mineral Processing
Heavy-duty fine grinding for mineral processing applications
Industrial ball mill for grinding ores, ceramics and stones in mineral processing, lime plant, and mining applications. Designed for efficient fine grinding, durable operation, and flexible mobile or fixed installation options.
Heavy-Duty Steel Structure
Wet or Dry Milling
Mobile or Fixed Options
Fine Grinding Application
Guide Price
R 211 573
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
18-38 r/min
Mill Speed Range
0.65-130 t/h
Production Range
18.5-800 kW
Power Range
3.6-137 T
Machine Weight
≤15 to ≤25 mm
Feed Opening Size
0.075-0.4 mm to 0.075-0.8 mm
Output Size
Business Solution Overview
Versatile Processing Capability: The machine is described as capable of grinding over 200 different materials, helping operations standardise on one grinding platform across multiple mineral and industrial applications.
Built for Demanding Duty: Its robust steel structure is intended for tough operating conditions, supporting long service life in continuous mineral processing and mining environments.
Efficient Fine Grinding: Designed for fine grinding, the ball mill uses impact and autogenous grinding inside the rotating cylinder to produce acceptable output particles for downstream processing.
Flexible Plant Integration: Availability in both mobile and fixed configurations allows buyers to align the machine with site layout, expansion plans, and operational preferences.
Broad Model Selection: The listed model range spans multiple capacities, power ratings, and machine sizes, making it easier to match equipment selection to production targets and plant scale.

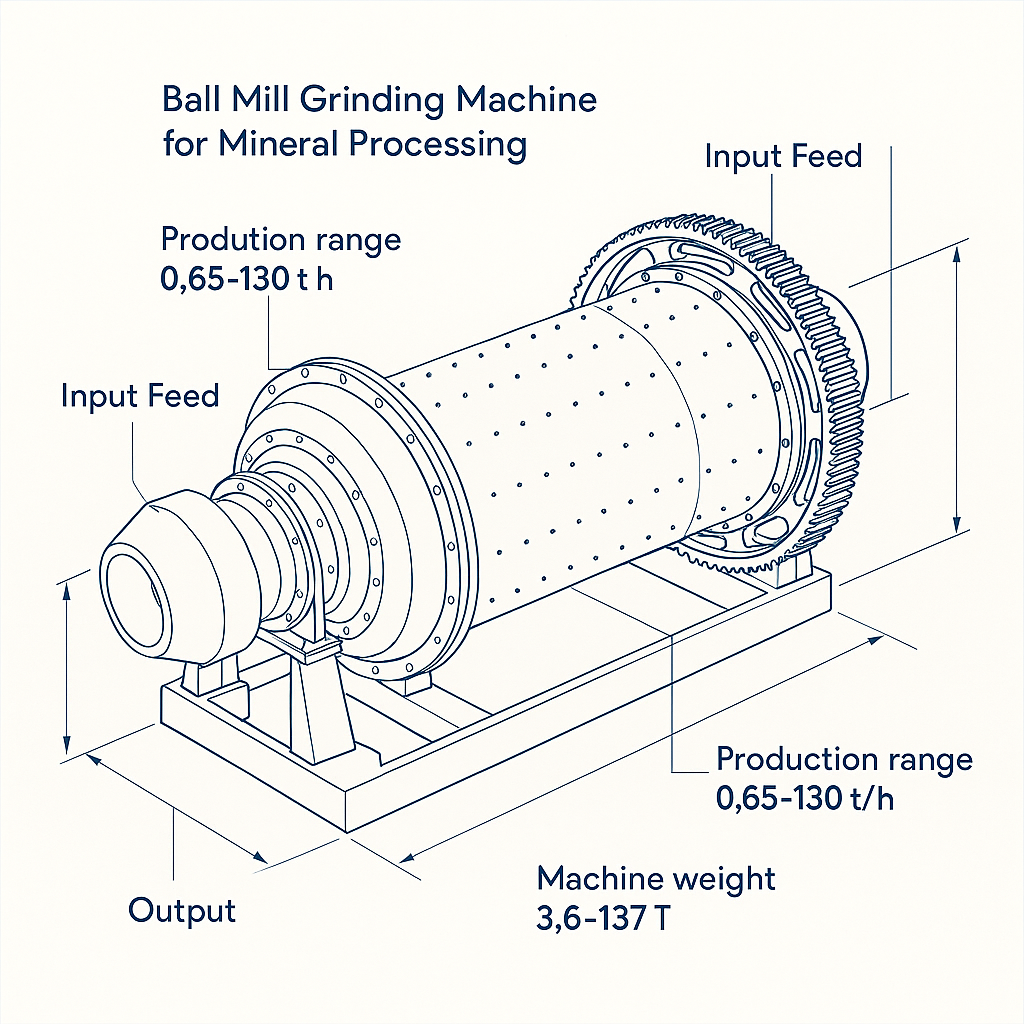

3D Sketch
AI-generated labelled 3D blueprint sketch — illustrative, not a manufacturing drawing.
Complete End-to-End Process
Feed Material Into Cylinder
Rotate for Impact Grinding
Iron Balls Crush and Grind Ore
Material Moves to Discharge End
Discharge by Water or Air
Why Choose Ball Mill Grinding Machine for Mineral P?
Heavy-Duty Steel Construction
Built with a robust steel structure to handle demanding grinding duties and support long-lasting industrial use.
Wide Material Compatibility
Suitable for grinding ores, ceramics, stones, and over 200 different materials across multiple processing environments.
Efficient Fine Grinding
Designed for effective grinding of materials below 300 MPa into fine powder for downstream mineral processing.
Energy-Efficient Operation
Engineered to maximise energy usage, helping improve cost-effectiveness in high-volume grinding operations.
Mobile or Fixed Configuration
Available in both mobile and fixed options to suit different site layouts, installation preferences, and operating needs.
Quality Core Components
Features a high-quality engine intended to support efficient operation and reduced maintenance requirements.
Technical Specifications
Application
Fine grinding
Suitable Materials
Ores, ceramics, stones
Material Capability
Over 200 different materials
Crushing Material Strength
Below 300 MPa
Configuration Options
Mobile and fixed
Discharge Method
Wet mill by water or dry mill by air
Model 900×1800
38 r/min; 1.5 T ball weight; ≤20 mm feed opening; 0.075-0.8 mm output; 0.65-2 t/h; 18.5 kW; 3.6 T
Model 900×2100
38 r/min; 1.3-1.4 T ball weight; ≤15 mm feed opening; 0.075-0.8 mm output; 0.7-3.5 t/h; 18.5 kW; 3.9 T
Model 900×3000
38 r/min; 2.7 T ball weight; ≤20 mm feed opening; 0.075-0.8 mm output; 1.1-3.5 t/h; 22 kW; 4.5 T
Model 1200×2400
32 r/min; 3.8 T ball weight; ≤25 mm feed opening; 0.075-0.6 mm output; 1.5-4.8 t/h; 30 kW; 11.5 T
Model 1500×4500
27 r/min; 14 T ball weight; ≤25 mm feed opening; 0.075-0.4 mm output; 3-12 t/h; 110 kW; 21 T
Model 1830×7000
24 r/min; 25 T ball weight; ≤25 mm feed opening; 0.075-0.4 mm output; 7.5-17 t/h; 245 kW; 36 T
Model 2200×7500
21 r/min; 33 T ball weight; ≤25 mm feed opening; 0.075-0.4 mm output; 16-29 t/h; 380 kW; 65 T
Model 3200×4500
18 r/min; 65 T ball weight; ≤25 mm feed opening; 0.075-0.4 mm output; 25-130 t/h; 800 kW; 137 T
Optional Modules
Mobile Configuration
Fixed Configuration
Industries Served
Mineral Processing Plants
Lime Plants
Energy and Mining
What's Included
Ball mill grinding machine
High-quality engine
