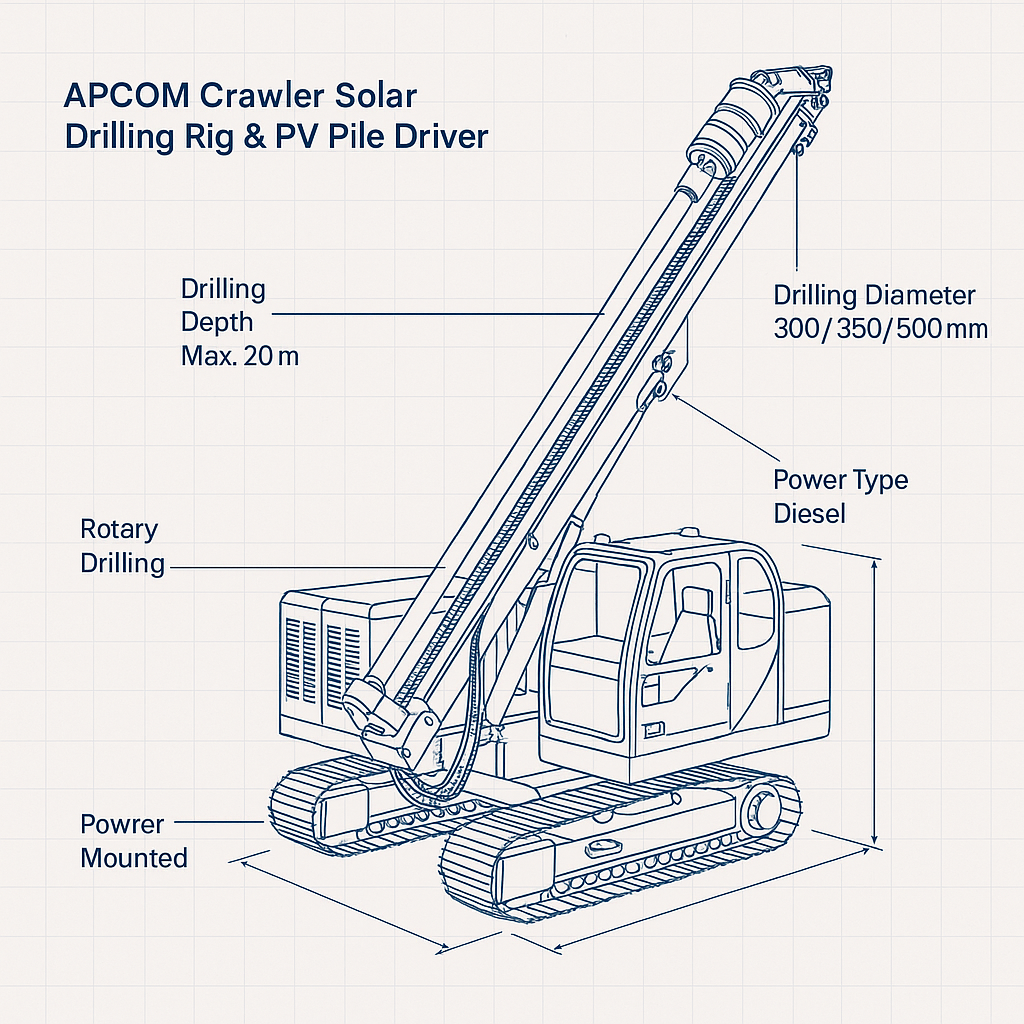

APCOM Crawler Solar Drilling Rig & PV Pile Driver
Deep, wide-diameter pile drilling for utility-scale solar farms
Diesel-powered crawler rig for photovoltaic pile drilling and rotary drilling. Handles 300 mm, 350 mm and 500 mm holes to a maximum depth of 20 m, with hydraulic drilling for hard rock and rough ground.
1-Year Warranty
Air Compressor Certified
Test Report Provided
Video Inspection Provided
Free Replacement Parts
Guide Price
R 962 500
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
Max. 20 m
Drilling Depth
300 / 350 / 500 mm
Drilling Diameter
Diesel
Power Type
Crawler Mounted
Mobility
5,280 KG
Weight
1 Year
Warranty
Business Solution Overview
One Rig for Drilling and Pile Driving: The APCOM unit performs both solar pile driving and rotary drilling, reducing the number of separate machines a contractor must mobilise to a PV site and simplifying site logistics.
Built for Hard Rock and Rough Ground: Hydraulic drilling and crawler tracks allow the rig to keep working in hard rock and tough ground conditions, where wheeled or lighter machines would struggle to stay productive.
Low Maintenance, High Efficiency: The manufacturer positions the rig around easy operation and low maintenance cost, which helps contractors protect margins on long solar farm installation programmes.
Warranty and After-Sales Support: The machine carries a 1-year warranty, free replacement parts and online technical support, backed by a provided test report and video inspection for buyer confidence.
Verified Supplier Credibility: APCOM supplies the rig with an air compressor certification, a test report and video inspection documentation, giving African buyers documented evidence of build quality before delivery.
Why Choose APCOM Crawler Solar Drilling Rig & PV Pi?
Solar Pile Driving and Rotary Drilling
A new-design machine that handles both PV pile driving and rotary drilling, so one rig covers the full foundation workflow on a solar farm.
Wide Diameter Range
Drills 300 mm, 350 mm and 500 mm holes, giving contractors flexibility across different photovoltaic pile designs and ground conditions.
Deep Hole Capability
Reaches a maximum drilling depth of 20 m, with standard 2 m and 3 m depths for typical solar pile installation.
Crawler Mobility
Crawler tracks let the rig move across rough, unprepared ground between pile positions without additional site preparation.
Easy Operation, Low Maintenance
Simple controls and a low-maintenance design help operators stay productive while keeping running costs down.
Proven Core Components
Built around a PLC, diesel engine, air compressor host, air-end and hydraulic motor for reliable hydraulic drilling performance.
Technical Specifications
Brand Name
APCOM
Type
DTH Drill Rig / Solar Pile Driver
Power Type
Diesel
Mobility
Crawler
Drilling Depth
Max. 20 m (Standard 2 m / 3 m)
Drilling Diameter
300 mm, 350 mm, 500 mm
Air Compressor
30–33 m³/min, 25 bar
Core Components
PLC, Engine, Air Compressor Host, Diesel Engine, Air-End, Hydraulic Motor
Weight
5,280 KG
Dimensions (L×W×H)
5,420 × 2,308 × 2,500 mm
Warranty
1 Year
Certification
Air Compressor Certified
Key Selling Points
Easy to Operate, High Efficiency, Low Maintenance Cost
Test Report
Provided
Video Inspection
Provided
Industries Served
Solar PV & Renewable Energy
Piling & Ground Engineering
Hard Rock Mining
Ore & Mining Drilling
Construction Foundations
What's Included
APCOM Crawler Solar Drilling Rig / PV Pile Driver
Free replacement parts
Online technical support
Test report
Video inspection
