Concrete & Batching Plants
35 m³/h Fully Automatic Electric Mobile Concrete Mixing Plant
Automated mobile batching for dependable on-site concrete production

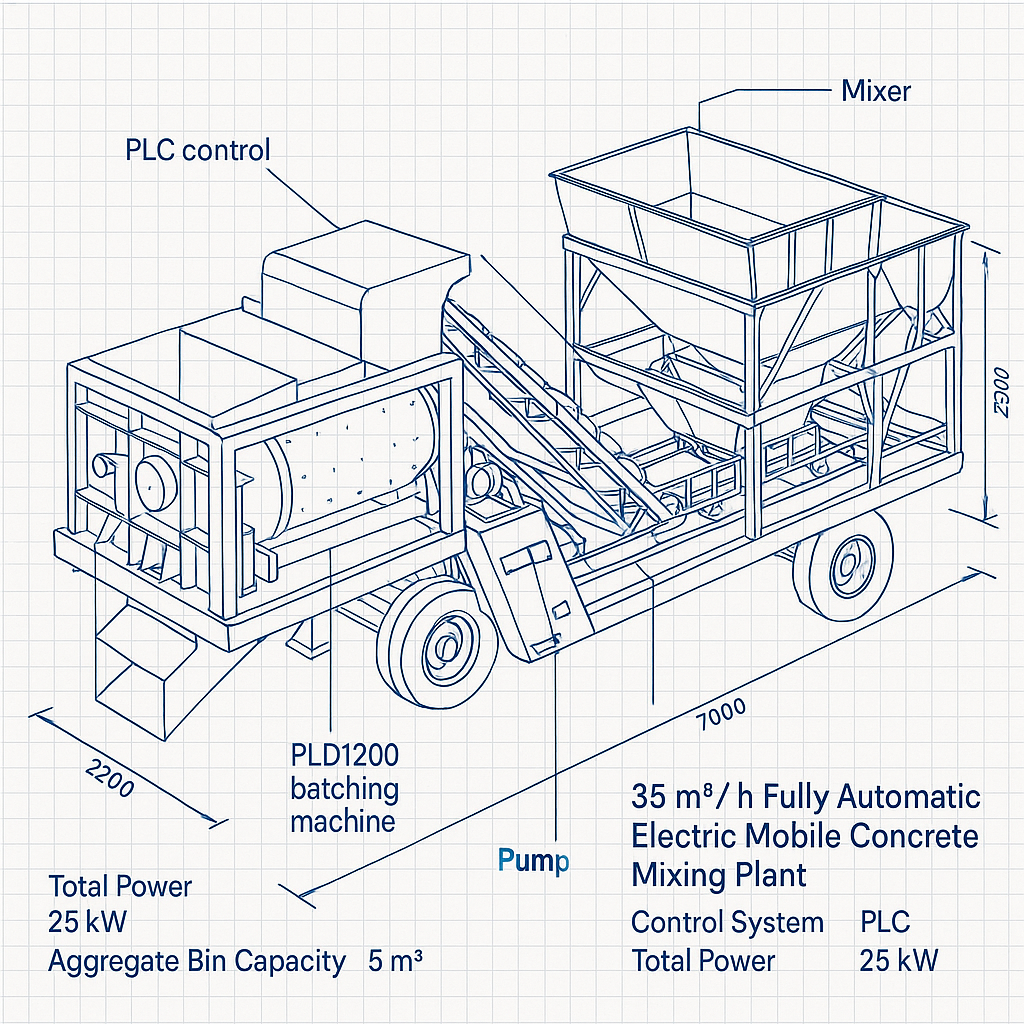

A 35 m³/h fully automatic electric mobile concrete mixing plant with PLC control for on-site batching. It combines a PLD1200 batching machine, mixer, pump and sensors in a portable configuration for construction projects.
Fully Automatic
PLC Controlled
Electric Powered
Portable Design
1-Year Warranty
Guide Price
R 788 799.98
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
35 m³/h
Production Capacity
PLC
Control System
25 kW
Total Power
5 m³
Aggregate Soil Capacity
15 s
Mixing Time
1,010 mm
Discharge Height
Business Solution Overview
Automated Batching Operation: PLC-based fully automatic control supports a more streamlined batching process with reduced manual intervention during concrete production.
Mobile On-Site Production: The portable configuration is suited to projects that need concrete produced at the work location rather than relying solely on fixed batching infrastructure.
Fast Mixing Cycle: With a stated mixing time of 15 seconds and 35 m³/h production capacity, the plant is configured to support ongoing site concrete demand.
Construction Project Versatility: The plant is specified for building, road, bridge, foundation and broader infrastructure work, allowing one mobile solution to serve multiple project types.
Warranty And Technical Support: A 1-year warranty, free replacement-parts support and online technical assistance are included to support operation and maintenance.
Complete End-to-End Process
Batch Aggregates
PLC-Controlled Operation
Mix Materials
Pump Water
Produce Concrete On Site
Why Choose 35 m³/h Fully Automatic Electric Mobile?
Fully Automatic PLC Control
The plant uses a PLC control system to support fully automatic concrete batching and mixing operation.
Mobile Plant Configuration
Its portable configuration is designed for deployment at construction sites where fixed batching plants may not be practical.
35 m³/h Production Capacity
The stated 35 m³/h capacity supports on-site concrete production for ongoing construction requirements.
15-Second Mixing Time
The specified 15-second mixing time supports a rapid mixing cycle.
Integrated Water Pump
A 1.5 kW single water-pump motor is specified as part of the electric plant configuration.
Warranty And Support
The plant includes a 1-year warranty, free replacement-parts support and online technical assistance.
Technical Specifications
Product Name
35 m³/h Full-Automatic Electric Mobile Concrete Mixing Plant PLC Motor Pump Portable Batching Plant
Machine Type
Production Line Batching Machine
Production Capacity
35 m³/h
Batching Machine Model
PLD1200
Aggregate Soil Capacity
5 m³
Discharge Height
1,010 mm
Mixer Power
5.5 × 2 kW
Mixing Time
15 s
Storage Hoppers
2/3 bins
Control System
PLC
Power Type
Electric Power
Total Power
25 kW
Water Pump Motor
1.5 kW, single
Gross Weight
28,000.0 kg
Package Size
2000 × 1500 × 300 cm
Warranty
1 Year
Industries Served
Building Construction
Road Construction
Bridge Building
Foundation Work
Infrastructure Projects
What's Included
Fully automatic mobile concrete mixing plant
PLC control system
PLD1200 batching machine
Mixer, motor, pump and sensors
1-year warranty
Free replacement-parts support
Online technical assistance
