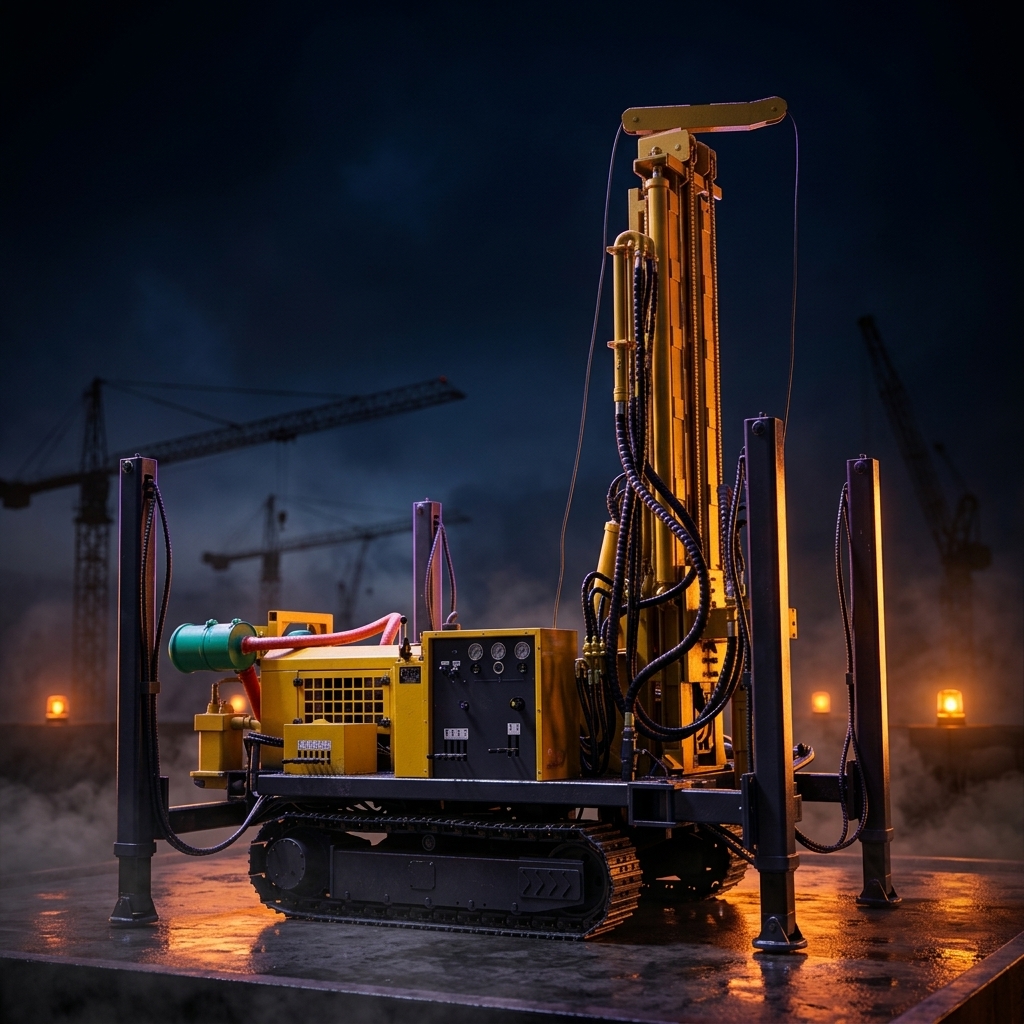

200m Water Well Borehole Drilling Rig
Crawler-mounted pneumatic rig for boreholes, irrigation and geothermal wells
A lightweight crawler-type pneumatic drilling rig designed for water wells, irrigation wells, geothermal wells and air holes. Suitable for mountain and rock formations, with drilling depth up to 200 m and hole diameter up to 300 mm.
Crawler Type
Pneumatic Drilling Rig
Up to 200 m Depth
Rock Formation Suitable
Guide Price
R 1 519 999.99
Guide price excl. VAT & delivery — final quotation tailored to your specification.
Get your exact quote
200 m
Drilling Depth
100-300 mm
Hole Diameter
20-40 m/h
Rock Drilling Speed
1.7-3.5 MPa
Air Pressure
17-31 m³/min
Air Consumption
6.5 t
Machine Weight
Business Solution Overview
Versatile Borehole Application: One rig can be used across water wells, irrigation wells, geothermal wells and air holes. This helps contractors and project owners use the same machine across multiple drilling requirements.
Built for Rock and Mountain Conditions: The rig is specifically described for mountain and rock formation water engineering. This makes it a practical choice for tougher drilling environments where general-purpose equipment may be less suitable.
Productive Drilling Performance: With stated rock drilling performance of 20 m to 40 m per hour, the machine is positioned to support efficient project execution. Faster progress on suitable formations can improve equipment utilisation and job turnaround.
Broad Drilling Range: A drilling depth of up to 200 m and hole diameter up to 300 mm gives this rig flexibility for a range of borehole specifications. That range can help reduce the need for multiple specialised machines.
Crawler-Mounted Mobility: The crawler-type design supports movement on uneven ground and drilling sites with more challenging access. This can improve deployment efficiency for rural, agricultural and mountainous projects.
Complete End-to-End Process
Move Rig to Site
Set Drilling Position
Operate with Compressed Air
Advance Borehole
Why Choose 200m Water Well Borehole Drilling Rig?
Pneumatic Crawler Rig
This crawler-type pneumatic drilling rig is designed for borehole work where mobility and drilling capability are both important. The configuration supports use on varied terrain.
Multi-Purpose Well Drilling
Suitable for water wells, irrigation wells, geothermal wells and air holes. This makes it useful for agricultural, utility and water access projects.
Rock Formation Capability
The rig is described for mountain and rock formation water engineering. It is intended for drilling conditions where harder ground is encountered.
Large Bore Diameter Range
With a hole diameter range of 100 mm to 300 mm, the machine can accommodate a broad range of borehole requirements within its stated specification.
Efficient Drilling Output
Stated rock drilling performance of 20 m to 40 m per hour supports productive operation on suitable formations and drilling conditions.
Long Single Advance Length
A once-time advance length of 3000 mm supports deeper progression per cycle, helping maintain drilling continuity during operation.
Technical Specifications
Model
HQZ220L
Rig Type
Pneumatic drilling rig (crawler type)
Weight
6.5 t
Dimensions
3442 × 2200 × 2800 mm
Hole Diameter
100-300 mm
Drilling Depth
200 m
Once-Time Advance Length
3000 mm
Minimum Clearance
250 mm
Using Air Pressure
1.7-3.5 MPa
Air Consumption
17-31 m³/min
Equipped Capacitor
100 kW
Drill Pipe Diameter
Φ76 / Φ89 / Φ102 mm
Rig Lifting Force
20 t
Rock Drilling Speed
20-40 m/hour
Industries Served
Water Well Drilling
Irrigation Projects
Geothermal Wells
Mountain Water Engineering
Rock Formation Drilling
What's Included
200 m water well drilling rig
Crawler-type pneumatic drilling machine
