| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah@0.2C | |
| Energy | 1280Wh | |
| Internal Resistance | ≤50mΩ | |

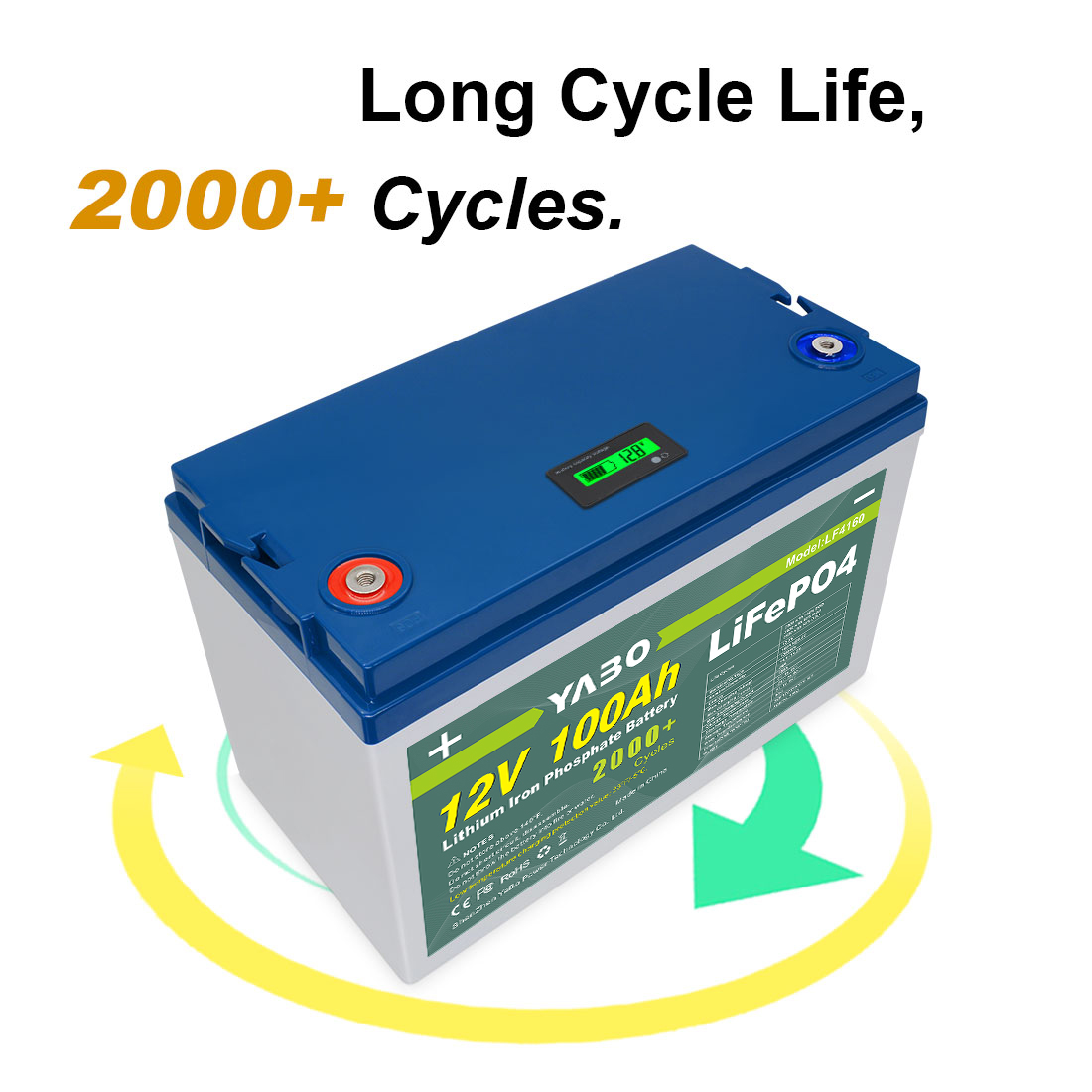

| Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 14.0~14.6V |
| Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
| Charging Current | 20A | |
| Max.Charging Current | 50A | |
| Standard Discharging | Discharging Current | 50A |
| Max. Continuous Current | 80A | |
| Max.Pulse Current | 200A(<3S） | |
| Discharging Cut-off Voltage | 10.0 | |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP55 | |
| Structure | Cell & Format | IFR32700 N65,4S17P |
| Casing | Plastic | |

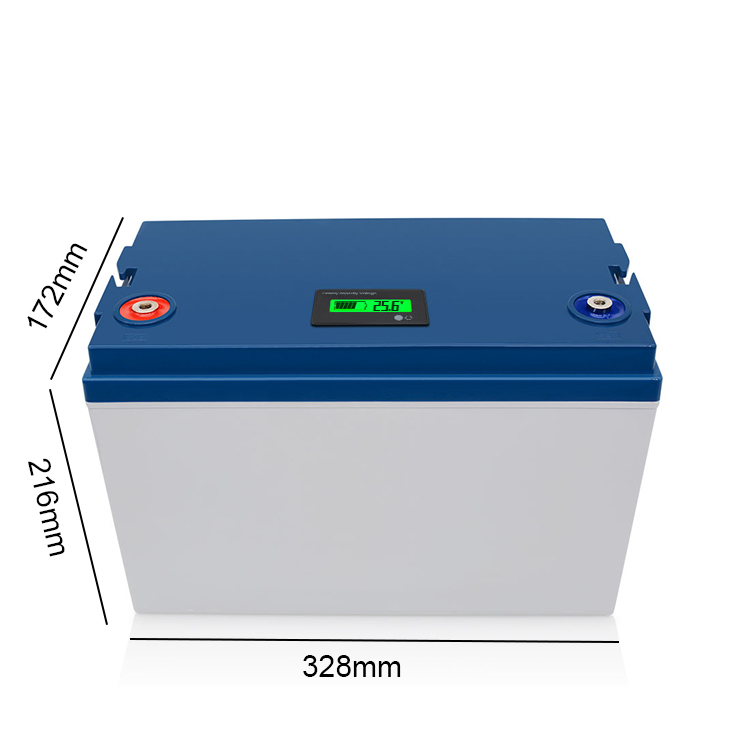

| Dimension(L*W*H*TH) | 328*172*216*216 | |
| Weight | Approx. 12.5Kg | |
| Terminal | M8 |
Details Images

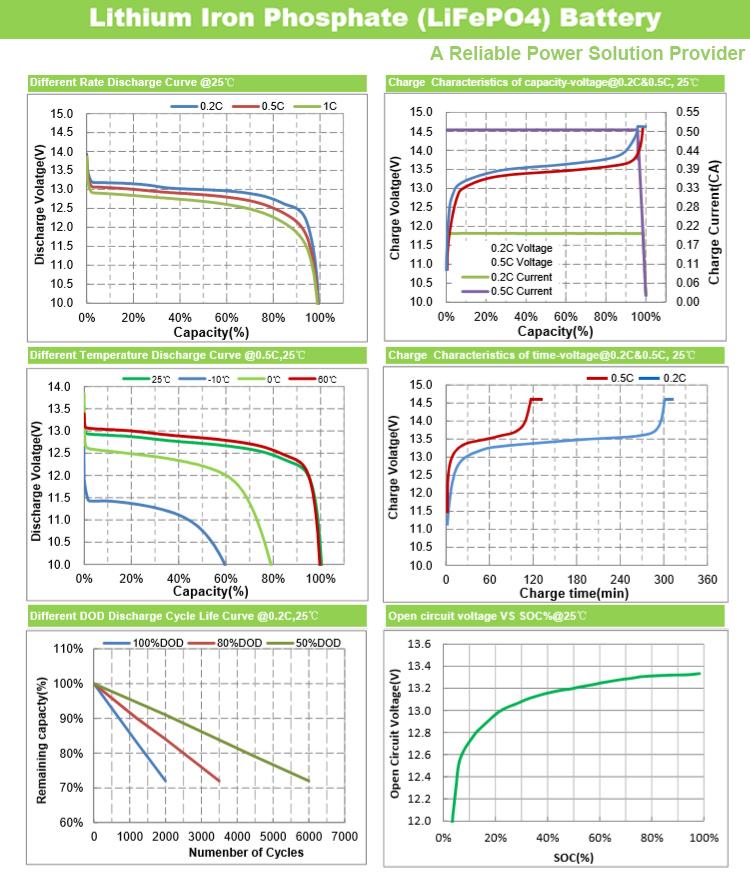

Test Chart
