The XHBQ-D3DCPMTHC is an energy recovery ventilation system designed for residential and commercial HVAC systems. It exchanges energy from exhausted air to precondition incoming outdoor air, improving indoor air quality while reducing energy costs.
ERV systems exchange energy contained in exhausted air with incoming outdoor air, cooling and dehumidifying in summer while humidifying and pre-heating in winter, thus enhancing energy efficiency and indoor air quality.

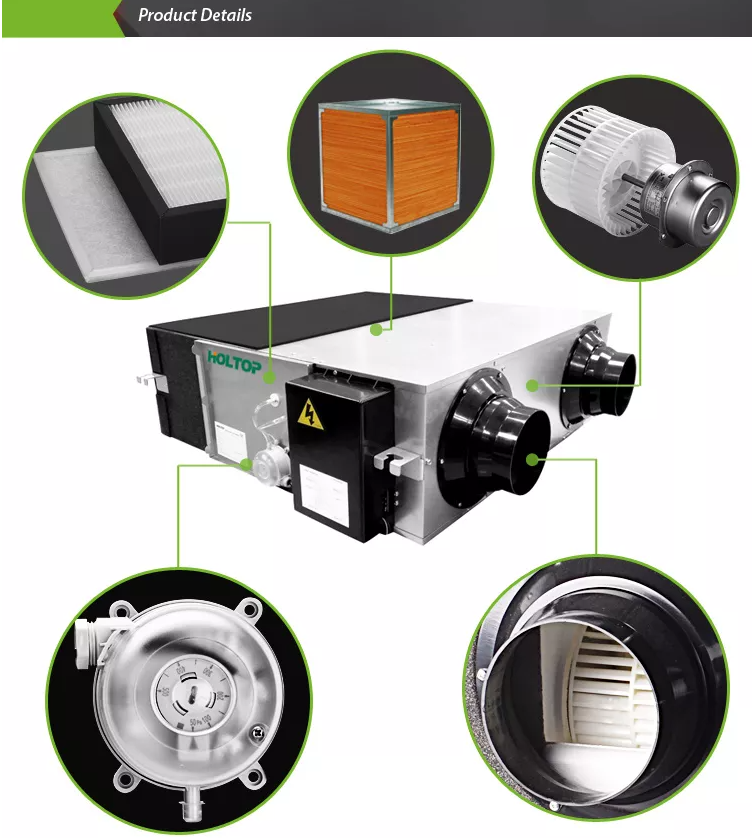

Key features include an energy-saving BLDC motor, high-efficiency enthalpy heat recovery, a G3+F7 filter, intelligent control system, double filter alarms, auto bypass based on outdoor temperature, and multiple fan speeds.
The XHBQ-D3DCPMTHC has an airflow capacity of 300 m3/h, which is equivalent to approximately 83 l/s.
The ventilator features double filter alarms, timer alarms, and alarms for different pressure gauges.
The noise level of the XHBQ-D3DCPMTHC is approximately 34.5 dB(A), making it a quiet option for ventilation.
Yes, the XHBQ-D3DCPMTHC includes a 7-day time-clock control standard and is compatible with Modbus for integration with building management systems.
The XHBQ-D3DCPMTHC requires a power supply of 220~240V, single-phase, at 50Hz.
The XHBQ-D3DCPMTHC weighs approximately 34.5 kg.
The temperature efficiency during cooling ranges from 68% to 82%, while during heating, it ranges from 61% to 72%.
The XHBQ-D3DCPMTHC utilizes BLDC fan motors, which are known for their energy efficiency and quiet operation.
Yes, the XHBQ-D3DCPMTHC is equipped with a defrost feature to ensure optimal performance in colder conditions.
The XHBQ-D3DCPMTHC is designed to work with a duct size of 150 mm.
Yes, a CO2 sensor is available as an optional feature for the XHBQ-D3DCPMTHC.
The external pressure rating for the XHBQ-D3DCPMTHC is 75 Pa.
