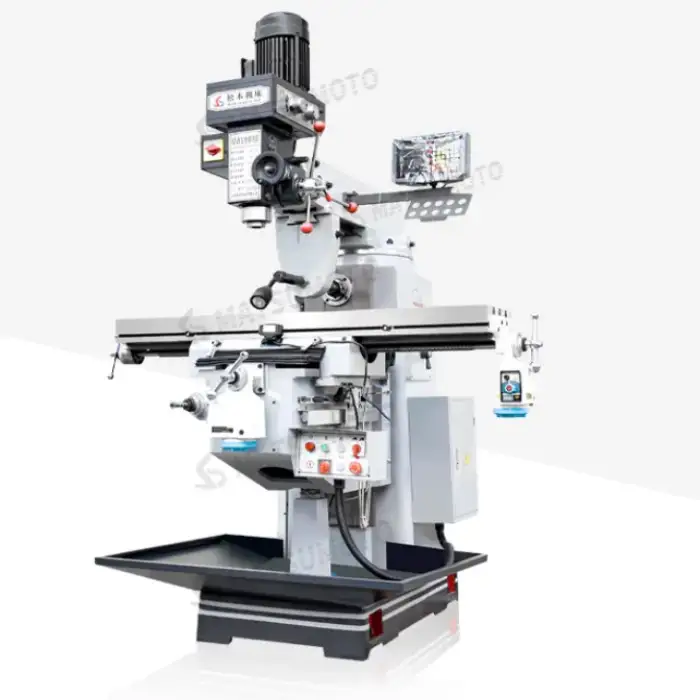

The model number of the milling machine is X6330.
The X6330 can perform milling, drilling, and tapping operations, making it suitable for various machining tasks.

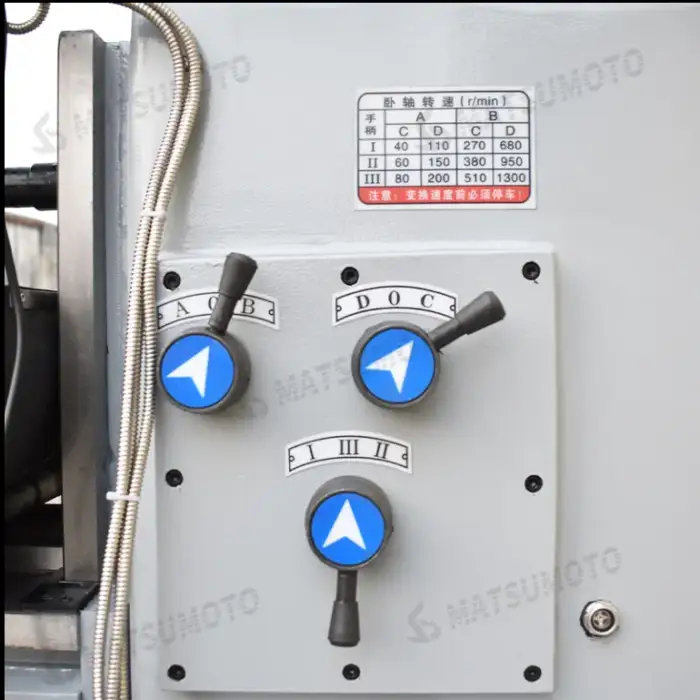

The spindle speed range is 80-1400 r.p.m. for vertical milling and 45-1350 r.p.m. for horizontal milling.
The maximum table load capacity is 150 kg.
The X6330 milling machine weighs 1980 kg.
The travel dimensions are 900 mm for the X-axis, 420 mm for the Y-axis, and 400 mm for the Z-axis.
The machine uses an MT4 taper for vertical operations and an NT40 taper for horizontal operations.
Yes, the machine operates at a voltage of 380V, which can be customized as needed.
The size of the machine's table is 1370 x 305 mm.
Key features include a high-quality gear head design, multifunctional capabilities, precise table travel, flexible spindle speeds, and robust construction.
It is ideal for professional workshops, small fabrication shops, and educational institutions for technical training purposes.
Yes, the milling head can rotate 90° left and right, and 45° back and forth.
The X6330 is suitable for precision machining in metalworking, fabricating parts in engineering projects, and small to medium production runs.
The spindle motor power is 2.2KW for vertical operations and 3.7KW for horizontal operations.
The machine has 3 T-slots that are 16 mm wide with a pitch of 65 mm.
