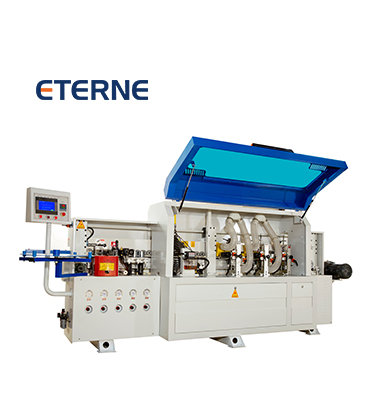

This automatic edge banding machine is suitable for straight edge banding of solid wood board, fiberboard, particleboard and other board workpieces, the edge sealing material can be solid wood strip, PVC, melamine, veneer, etc. Imported motor and high quality electrical components.Product serialization and diversified customer selection. High precision and efficiency.
Model
ET-360B
Input Voltage
380V(220V,400V,415V, 440V etc)
Edge Thickness
0.4-3 mm
Edge Width
10-60 mm
Panel Length
Min.120 mm
Panel Width
Min.60 mm
Panel Thickness
10-50 mm
Transport Motor
1.5 kw
Panel Preheating power
0.3 kW
Glue Melting Power
1.5 kw
Gluing Motor
0.55 kW
End-trimming Motor Power
0.37 kw*2
Rough-trimming motor power
0.75 kw*2
Fine-trimming Motor Power
0.75 kw*2
Polishing Motor
0.18 kw*2
Total Power
12.5 kw
Scraping Blade model
R2*2 or R3*2

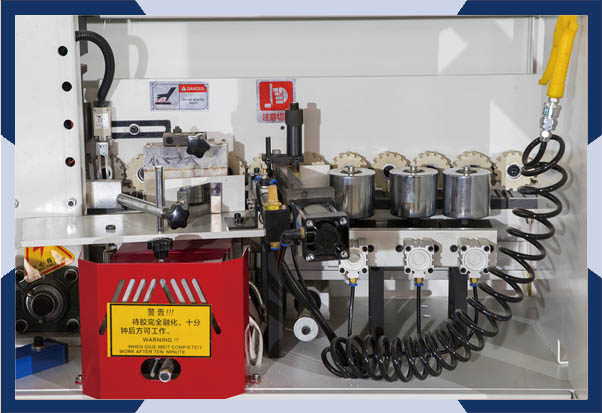

Gluing and Pressing
The glue box is coated with Teflon, which makes the box can be cleaned easilyr. It has temperature maintaining function, can shorten heating time and avoid the glue carbonization. The machine can use high temperature EVA hot melt glue and can deliver the glue by spiral structure. The glue box size is 200*150*450mm.
End-trimming mechanism is to cut the forward and rear tape after gluing and press process by the movement of the precise guide track, it is with automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly.

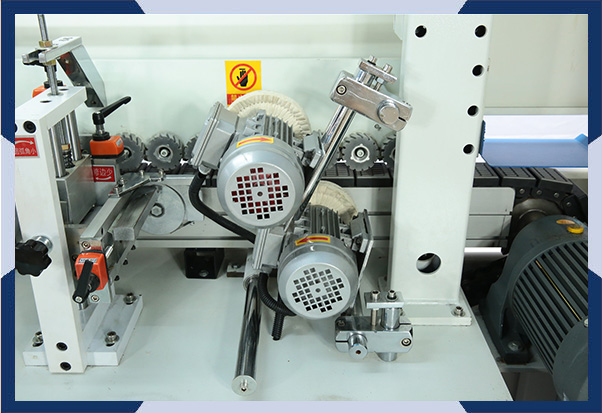

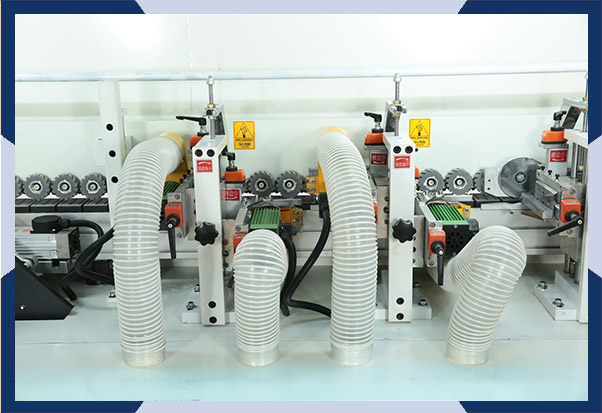

Rough &Fine Trimming unit, there are two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel to ensure both sides of the edge smooth and even.

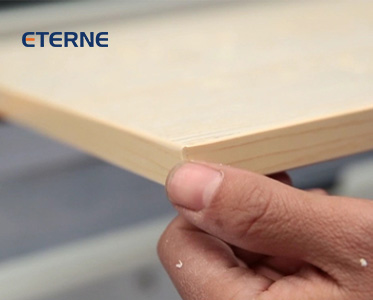

Scraping & Buffing unit for a perfect finishing of the applied edge.Buffing unit is equipped with cotton polishing wheels to make smooth surface by end-polishing.
Model
ET-60E
ET-360A
ET-360B
ET-360YC
ET-360YCC
ET-468
ET-360F
Motor power
5.1KW
6.5KW
8KW
12.5KW
22KW
16KW
15KW
Panel width
≥60mm
Panel thickness
10~60mm
Edge band thickness
0.4~3.0mm
Edge band width
12~65mm
Feed speed
0~13m/min
Working pressure
0.7 Mpa
Size(LxWxH)mm
2740*850*1480
3700*930*1600
4080*930*1600
4900*930*1600
5700*930*1600
6600*1200*1600
5900*930*1600
ET-60E
gluing,trimming,scrapping and buffing,also with manual end cutting
ET-360A
gluing,end cutting,fine trimming,scrapping and buffing
ET-360B
gluing,end cutting,rough trimming,fine trimming,scrapping and buffing
ET-360YC
pre-milling,gluing,end cutting,rough trimming,fine trimming,scrapping and buffing
ET-360YCC
pre-milling,gluing,end cutting,rough trimming,fine trimming,scrapping,vertical slot, horizontal slot and buffing
ET-468
pre-milling,gluing,end cutting,rough trimming,fine trimming,scrapping,profiling and buffing

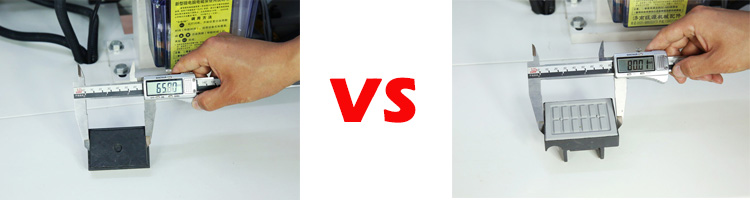

1.Chain block quality comparison
2.Inductive switch comparison

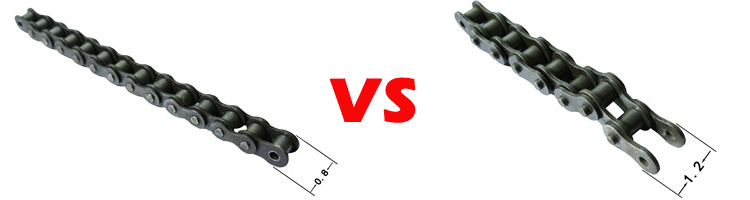

3.Chain comparison
Shandong Eterne Machinery Co.,Ltd. is a manufacturer based on woodworking machinery and equipment with high-tech products as direction. Our main products are automatic edge banding machine, woodworking engraving machine, metal engraving machine, drill row and so on.
The head company“Wanfa Machinery” has more than 30 years of mechanical production experience, it covers 16,000 square meters, has a complete testing and experimental equipment, the application of leading software design and development products, has an excellent research and development environment.
The research and development capabilities of new products have always been in the leading position. The products have always maintained the market position of high technical grade, good quality performance and reasonable cost performance. ET machienry had been exported to many countries of the world such as America, Russia, Indonesia, Uzbekistan, Algeria, Mongolia etc more than 20 countries.
Eterne people make full use of technology and brand advantages, established a developed sales network throughout China, at the same time we established a good after-sales service network, can provide customers with quality technical advice and installation and maintenance services.
