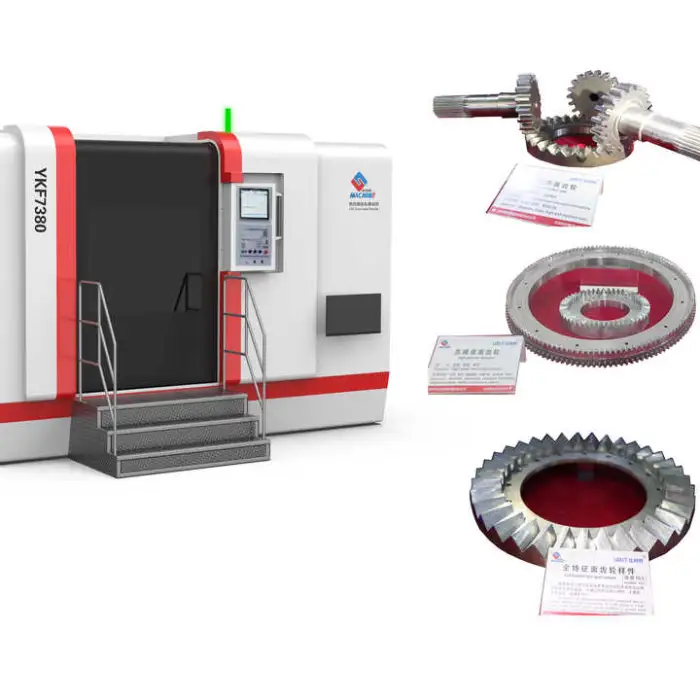

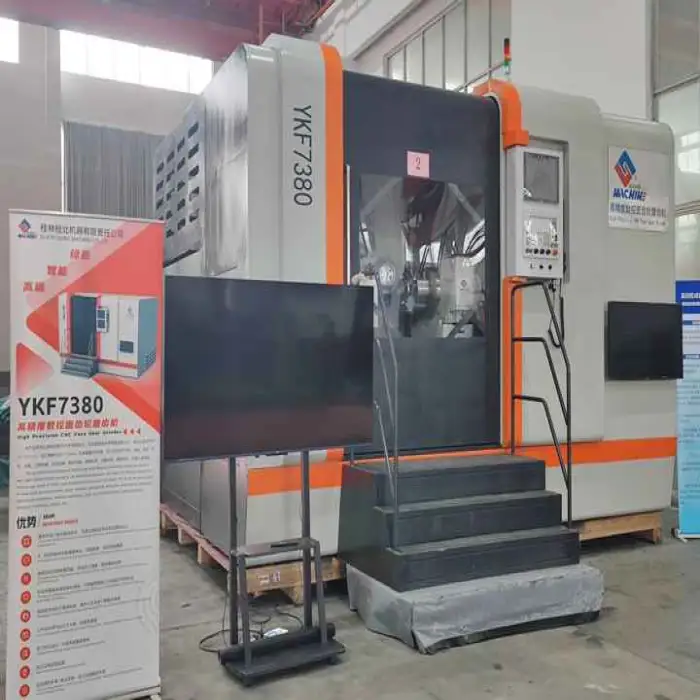

The Model YKF7380 can grind gears with a diameter range of 50 to 800 mm.
The machine operates at a voltage of 380V and has a power rating of 15 kW.
Yes, the Model YKF7380 is a CNC (Computer Numerical Control) face gear surface grinding machine.
The maximum thickness of the grinding wheel for the Model YKF7380 is 80 mm.
The Model YKF7380 weighs approximately 17,000 kg.
The Model YKF7380 supports a gear modulus range of 1 to 12 mm.
The pressure angle range for the Model YKF7380 is between 20 to 25 degrees.
Key features include high productivity, advanced CNC technology, large gear diameter capability, and a robust design.
Yes, a machinery test report is provided with the Model YKF7380.
Yes, comprehensive support including video and online technical assistance is available.
It is suitable for manufacturing gears for automotive and machinery, precision grinding for aerospace components, and custom gear production.
Yes, the Model YKF7380 can be used for the repair and refurbishment of worn gears.
The dimensions of the Model YKF7380 are 4500 mm (L) x 4290 mm (W) x 3000 mm (H).
The 5% discount is applied at the time of purchase, making it a great opportunity to enhance your machining capabilities.
The Model YKF7380 has a high grinding accuracy rating, denoted as ++++4.
