Sunpal Solar Waterpump System

The Sunpal Solar Waterpump System is an efficient and environmentally friendly solution for water pumping needs. Designed to harness solar power, this system provides a reliable and sustainable source of energy for pumping water, making it ideal for agriculture, irrigation, and other water-based applications. The system is built to deliver optimal performance while maintaining ease of installation and use.

Key Features

• Solar Panel: The system is powered by a 280W Mono 60 Cells solar panel, which efficiently converts sunlight into electrical energy, ensuring reliable operation throughout the day.
• DC Cable: The system includes a 4mm² DC cable for safe and efficient power transmission between the solar panel and pump.
• DC Disconnect Switch: Equipped with a 1000VDC 16A DC disconnect switch, ensuring safe operation and easy maintenance.
• AC Inverter: The system features a 15KW AC inverter, which allows the conversion of DC power from the solar panel into usable AC power for the water pump.
• Water Head Range: With a water head range of 20 to 18, this system can pump water effectively across various elevation levels, making it suitable for different terrains.
• Mounting System: The ground mounting system is designed to securely hold the solar panels in place, ensuring optimal solar exposure and efficient energy capture.
• Warranty: The Sunpal Solar Waterpump System comes with a 3-year warranty, ensuring long-lasting performance and reliability.

Conclusion

The Sunpal Solar Waterpump System is an ideal choice for anyone looking to utilize solar energy for water pumping applications. With its high-quality solar panel, efficient inverter, and reliable components, this system offers a sustainable and cost-effective way to meet your water pumping needs. It is perfect for agricultural, residential, and commercial use where water supply is essential.

Product Info Gallery

What's Included:

Note: Product dimensions and physical appearance in this data sheet are nominal.Sunpal Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

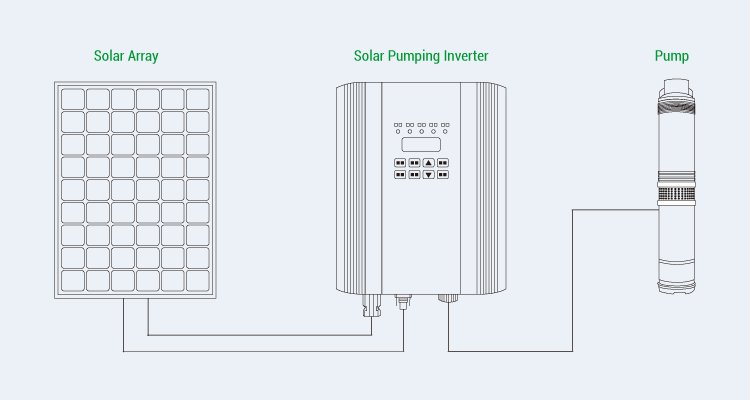

Solar Water Pumping System Configuration

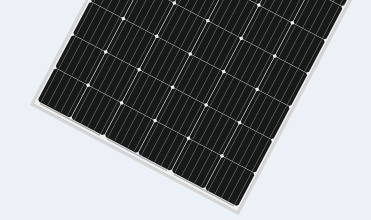

Mono Solar Panels

Peak Power Watts: 280W (SP280M-60), Poly Optional.
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)

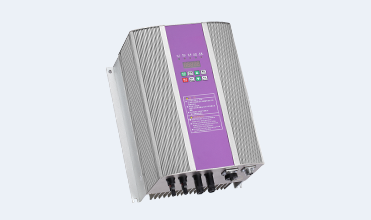

Solar Pump Inverter

Inverter Power: 5.5/7.5/15KW

Max. DC Input Voltage: 850V

MPP Voltage: 500-700VDC

Warranty: 3 Years (STD)

Wifi Stick For STD, Lan & GPRS Optional.

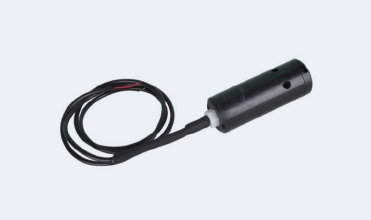

Water Level Switch

Water level switch is a reliable and user-friendly water level control device, it can be used for dry run protection in a well or overflow protection in a tank. The water level switch has the advantages of small size, fast response, high resistance to load impulse, and long lifetime.

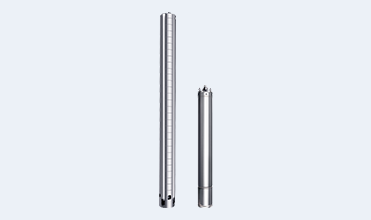

Permanent Magnet Solar Pump (AC)

Daily Water Flow: 10 - 20 m³ / 80 - 160 m3 / 700- 1100m³

Water Head: 145 - 90m / 79 - 43m / 22 - 18m

Pump Outlet Dia.: 30 mm  65 mm  150 mm

Pump Outlet Dia.:   1"1/4     2"1/2       6"

Adapting Well Dia.: 125 mm/200-250 mm/200-250 mm

Pump Body Material: AISI 304

Pump Enclosure Class: IP68

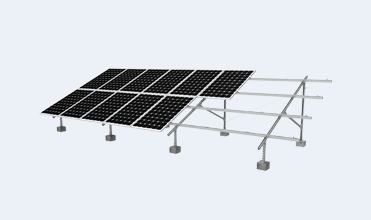

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

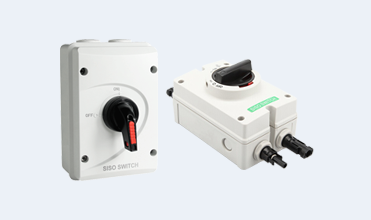

DC Disconnect Switch

IP Rating: IP66

Rated Voltage: 1000VDC

Connection Type: M20,M25,MC4

Rated Current: 16A,20A

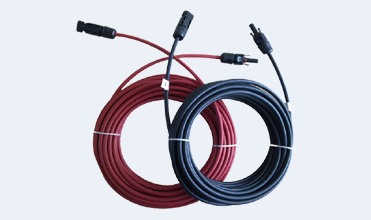

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional

Rated Voltage:600VDC(UL)/1000VDC(TUV)

Rated Current: 55A,70A

Colors: Black For STD, Red Optional.

Lifetime:≤25 Years

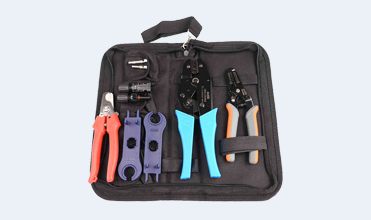

PV Tools

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
