Stainless Steel Tube End Forming Machine Cylinder Roll Mouth Hydraulic Flanging Reverse Mouth
- Section : Machinery
- Category : Machine Tool Equipment
- SKU : 1601385398613

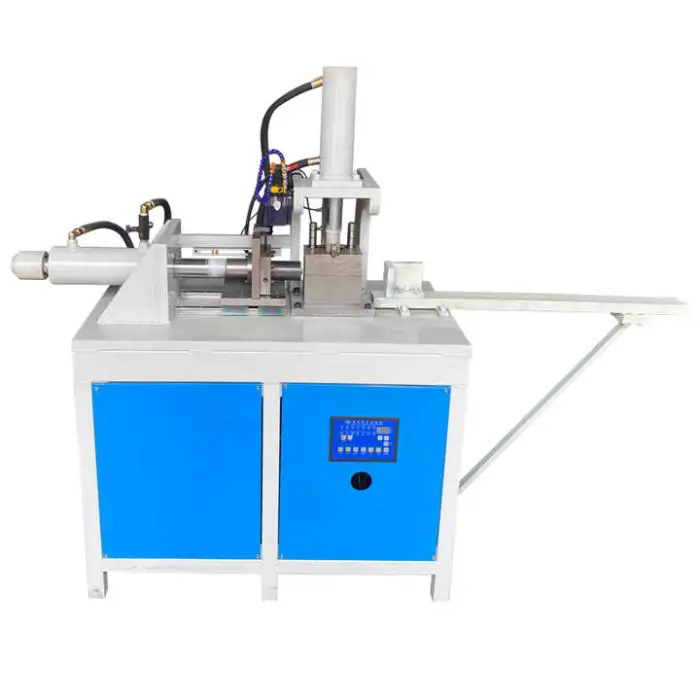

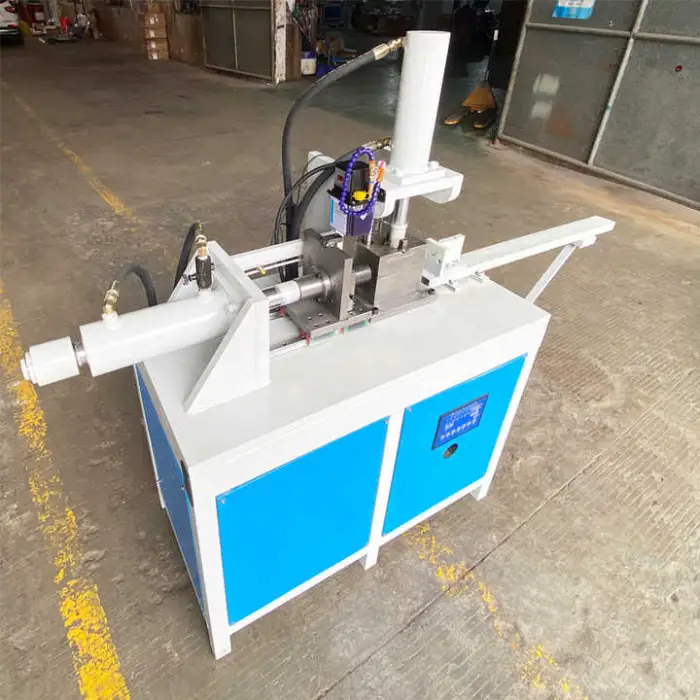

Stainless Steel Tube End Forming Machine Cylinder Roll Mouth Hydraulic Flanging Reverse Mouth
The Stainless Steel Tube End Forming Machine is a powerful tool designed for efficient tube processing. This semi-automatic machine is perfect for forming and flanging stainless steel tubes. It offers reliability and precision, making it a great choice for your metalworking needs.
Specifications
| Attribute | Details |
|---|---|
| Max. Shrinking Capacity (Diameter) | 50 mm |
| Max. Tube Contracting Length | 300 mm |
| Power | 2.2 kW |
| Weight | 500 kg |
| Max. Shrinking Capacity (Thickness) | 3 mm |
| Tube Contracting Cycle | 2 - 4 s |
| Material Processed | Stainless Steel |
| Key Selling Points | Competitive Price |
Key Features
- Video outgoing inspection for quality assurance.
- Includes core components like a reliable pump.
- Comes with a detailed machinery test report.
- Extra services available for enhanced functionality.
- Semi-automatic operation for ease of use.
Applications
- Manufacturing stainless steel tubes for various applications.
- Flanging tube ends for better fitting and sealing.
- Used in construction and fabrication industries.
- Ideal for creating custom tube shapes and sizes.
- Perfect for workshops focusing on metal processing.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is this machine used for?
The machine is a semi-automatic hydraulic tube end forming unit designed for roll mouth, flanging, reverse mouth and shrinking operations on stainless steel tubes for fabrication, construction and custom tube work.
2. What are the maximum tube size and wall thickness it can process?
Maximum shrinking (diameter) is 50 mm and maximum material thickness is 3 mm. Tube contracting (working) length is up to 300 mm.
3. What is the power requirement and machine weight?
Rated power is 2.2 kW and the machine weight is approximately 500 kg. Contact the supplier for specific voltage and electrical configuration options.
4. How fast is the forming cycle?
Typical tube contracting cycle time is 2–4 seconds per operation, though actual throughput depends on operator speed, tube length and selected tooling.
5. Which materials can be processed?
The machine is designed primarily for stainless steel. Other ductile metals may be possible but should be evaluated with sample testing and vendor consultation.
6. Is the machine fully automatic?
No — it is semi-automatic. Operators load and position tubes and the machine performs forming cycles hydraulically; some manual intervention for handling and tooling changes is required.
7. What safety features are included?
Standard safety provisions include machine guards and emergency stop functionality. Specific safety features can vary by model and should be confirmed with the supplier before purchase.
8. Does the machine come with tooling and pump?
The standard supply includes core components such as a reliable hydraulic pump. Required forming dies/tooling may be included or offered as optional extras—confirm the exact scope with the vendor.
9. What quality assurance is provided?
Each machine undergoes video outgoing inspection and is supplied with a detailed machinery test report documenting performance and acceptance checks.
10. Are installation, commissioning and training available?
Yes. Extra services such as on-site installation, commissioning and operator training are available from the manufacturer or distributor—arrange details at time of order.
11. What maintenance is required?
Routine maintenance includes hydraulic oil level and cleanliness checks, periodic oil/filter replacement, inspection of seals and hoses, lubrication of moving parts and checking fasteners. Follow the supplier's maintenance schedule for intervals.
12. Is spare parts and after-sales support available?
Yes. The manufacturer/distributor provides spare parts and after-sales support. For lead times and parts lists, contact your vendor with the machine serial number.
13. Can this machine produce custom end shapes or sizes?
Yes. With appropriate tooling and parameter adjustments, it can create a variety of end forms (roll mouth, flanged, reverse mouths, shrink fits) for custom tube geometries.
14. How is the machine packaged and shipped?
The machine is heavy (about 500 kg) and is typically crated for export. Forklift or crane is required for loading/unloading. Exact packaging details and shipping options are provided by the supplier.
15. What information should I provide to get a quote or compatibility check?
Provide tube material, outer/inner diameter, wall thickness, required end-form type (flange, roll mouth, reverse mouth), production volume and desired electrical supply. The vendor will advise tooling needs, lead time and pricing.
