Solar Power Station Ground Screw Piling Machine Crawler Small Drilling Rig Photovoltaic Piling Machine
- Section : Machinery
- Category : Engineering & Construction Machinery
- SKU : 1600725383700

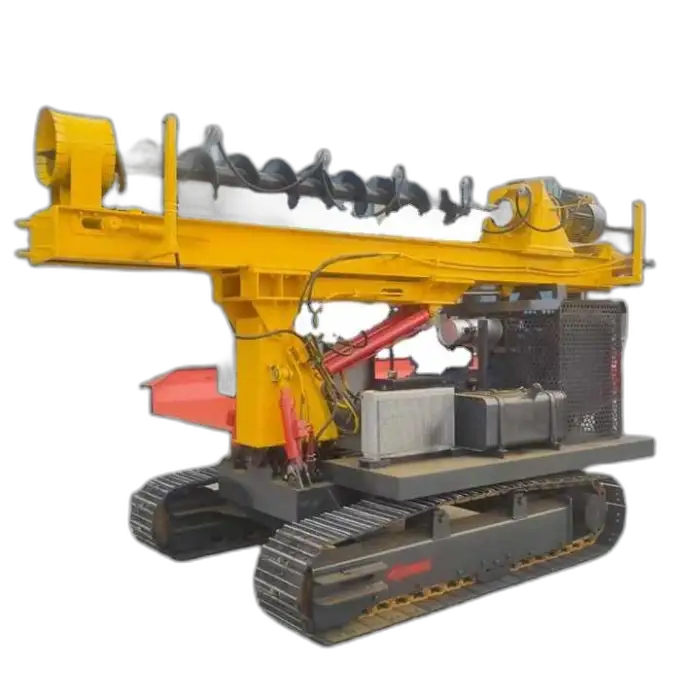

Solar Power Station Ground Screw Piling Machine Crawler Small Drilling Rig Photovoltaic Piling Machine
The Solar Power Station Ground Screw Piling Machine is a powerful and efficient tool for installing photovoltaic piles. This small drilling rig is designed to make your solar power projects easier and faster. With its advanced features and high operating efficiency, it is perfect for various soil conditions. Whether you need to drill deep or create wide holes, this machine has you covered.
Specifications
| Attribute | Details |
|---|---|
| Brand Name | XRCore |
| Weight | 5600 kg |
| Model | XR-300C |
| Engine | 4108 Weichai Diesel |
| Drilling Depth | 3500 mm |
| Drill Hole Diameter | 90-300 mm |
| Drilling Speed | 0-1200-120 r/min |
| Travel Speed | 20-30 km/h |
| Track Width | 400 mm |
| Rotation | 360 degrees |
| Pressurization System | Hydraulic Motor |
| Selling Units | Single item |
Key Features
- High operating efficiency for faster project completion.
- Compact design for easy transport and maneuverability.
- Can drill holes from 90 mm to 300 mm in diameter.
- Adjustable drilling speed for different soil types.
- 360-degree rotation for precise positioning.
Applications
- Installing solar power station foundations.
- Setting up photovoltaic systems in various terrains.
- Drilling for ground screws in residential solar projects.
- Supporting renewable energy initiatives.
- Enhancing efficiency in solar energy installations.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 04 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the Solar Power Station Ground Screw Piling Machine used for?
It is a compact crawler drilling rig designed for installing photovoltaic piles and ground screws for solar power stations, residential solar projects and other photovoltaic foundation applications.
2. What are the main specifications of the XR-300C model?
Key specs: brand XRCore, model XR-300C, weight 5600 kg, engine Weichai 4108 diesel, max drilling depth 3500 mm, drill hole diameter 90–300 mm, adjustable drilling speed up to 1200 r/min, travel speed 20–30 km/h, track width 400 mm, 360° rotation, hydraulic motor pressurization system.
3. What drilling diameters and depths can this machine handle?
It can drill holes with diameters from 90 mm to 300 mm and reach depths up to 3500 mm, depending on soil conditions and tooling.
4. What engine and power system does the machine use?
The XR-300C is powered by a Weichai 4108 diesel engine and uses a hydraulic motor pressurization system to drive drilling and rotation functions.
5. Is the machine suitable for different soil types?
Yes — it is designed for a wide range of soil conditions (sandy, loamy, clay). For very hard rock or highly compacted strata, specialized rock bits, pre-drilling or consultation with the supplier is recommended.
6. How mobile is the machine and how is it transported?
The compact crawler design and 5600 kg weight make it relatively easy to maneuver on site. For road transport, use an appropriate flatbed trailer or low-loader and follow local transport regulations. Use lifting equipment rated for the machine weight when loading/unloading.
7. What control and positioning features does it have?
It offers 360-degree rotation for precise positioning and an adjustable drilling speed range to match different soil types and tooling requirements.
8. What drill speed range does the machine offer?
The drilling speed is adjustable up to approximately 1200 r/min, allowing operators to optimize speed for different soil conditions and auger sizes.
9. What attachments and tooling are compatible?
The machine is compatible with standard auger bits and ground screw tooling within the 90–300 mm diameter range. For special tooling, extensions or pile-driving accessories, consult the supplier for available options and compatibility.
10. What are the basic maintenance requirements?
Regular maintenance includes engine servicing per manufacturer intervals, checking and changing hydraulic oil and filters, greasing pivot points, inspecting and maintaining the tracks, and replacing worn auger bits or cutting edges. Follow the operator manual for detailed schedules.
11. What safety precautions should operators follow?
Operators should be trained and familiar with the machine manual, wear appropriate PPE, secure the work area, use emergency stop procedures as needed, check stability on slopes, and ensure proper lifting techniques during transport and setup.
12. What is the typical travel speed on site?
The machine's travel speed is listed at 20–30 km/h, suitable for relocating on site or short transfers; road transport should be done on a trailer per local regulations.
13. How can I get spare parts, service or technical support?
Contact the XRCore dealer or the machine supplier for spare parts, service agreements and technical support. Provide the model (XR-300C) and serial number when requesting parts or service information.
14. Are there operator training or certification requirements?
While specific certification depends on local regulations, operators should receive training on machine controls, safe drilling practices, maintenance procedures and emergency protocols. The supplier can often provide or recommend training.
15. How do I inquire about pricing, lead time or customization?
Request a quote from the XRCore dealer or sales representative with project details (quantity, required drilling diameter/depth, terrain, and any special tooling). They can provide pricing, delivery lead times and available customization or optional accessories.
