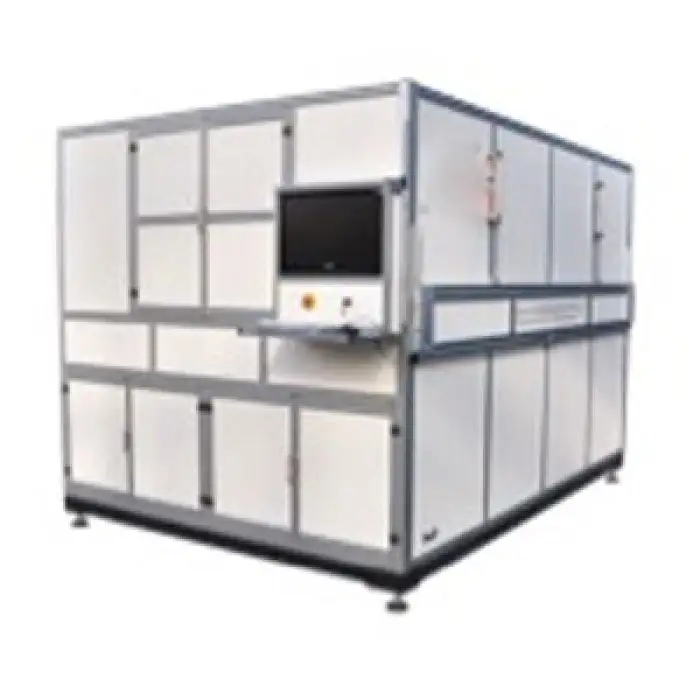

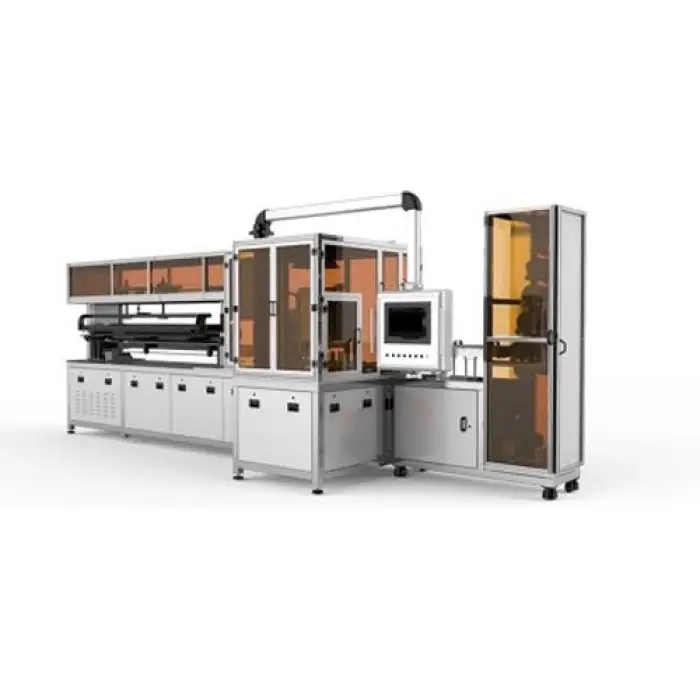

Solar Panels Manufacturing Plant Automatic Solar Cells Making Machines
The Solar Panels Manufacturing Plant Automatic Solar Cells Making Machines is an advanced solution for the production of high-quality photovoltaic panels. This automated system is designed for efficiency and precision, making it the perfect choice for large-scale solar panel production lines. With its high throughput and innovative technology, this machine ensures consistent quality and high productivity in the manufacturing process.
Key Features:
- High Soldering Capacity: Capable of soldering up to 1200 to 4000 solar cells per hour, ensuring a high production rate for large-scale manufacturing needs.
- Minimal Breakage: With a breakage rate of less than 0.2%, this machine ensures minimal wastage and maximum yield, making it a cost-effective solution for solar panel production.
- Flexible Soldering Head: The soldering head is compatible with 2 to 5 busbars simultaneously, allowing for flexible production of solar cells with varying busbar configurations.
- Busbar Peel Strength: The machine ensures a busbar peel strength greater than 2N, providing strong and reliable connections for solar cells.
- Versatile Busbar Configurations: Supports 5BB, 6BB, and 9BB busbars, accommodating different solar panel designs and improving the versatility of the production process.
- Adjustable String Spacing: The string spacing can be adjusted between 10mm to 40mm, providing flexibility to meet specific production requirements.
- Efficient Photovoltaic Panel Production: Designed to streamline the manufacturing of solar panels, enhancing efficiency and reducing the overall production time while maintaining high-quality standards.
- Automated and Manual Functions: The system combines both automated and manual options for various stages of the solar panel manufacturing process, offering ease of operation and flexibility for different production environments.
| Overall dimension | 3875mm×1320mm×2100mm | |
| Transmission mode | All Inclusive hemp belt delivers assembly, servo positioning | |
| Soldering max capacity | 1200-4000PCS/hour | |
| Breakage | ＜0.2% | |
| Size of panel | 125mm*125mm，156mm*156mm（40mm-156mm）*156mm | |
| Soldering head | Compatible 2-5 busbar at the same time | |
| Busbars peel strength | ＞2N | |
| Cell spacing | 1.5mm-40mm Adjustable | |
| Deviation of Ribon and grid line | ＜±0.2mm | |
| Battery string straightness deviation | ＜1mm | |
| Power supply | 3-phase 380V，50HZ(need reliable grounding) | |
| Applicable air pressure | 0.6～0.8MPa | |
| Compressed air flow | 100L/min | |
| Power consumption | 12.5KW |
This Solar Cells Making Machine is an essential tool for modern solar panel manufacturing plants, offering a combination of speed, precision, and flexibility to ensure optimal production outcomes. With its advanced features and high efficiency, it provides an excellent solution for producing photovoltaic panels that meet global industry standards.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum soldering capacity of the machine?
The machine can solder between 1200 to 4000 solar cells per hour, ensuring high production rates for large-scale manufacturing.
2. What is the breakage rate during production?
The breakage rate is less than 0.2%, which minimizes wastage and maximizes yield during the manufacturing process.
3. Can the soldering head accommodate different busbar configurations?
Yes, the flexible soldering head is compatible with 2 to 5 busbars simultaneously, allowing for versatile production of solar cells.
4. What are the supported busbar configurations?
The machine supports 5BB, 6BB, and 9BB busbar configurations, making it adaptable to various solar panel designs.
5. Is the string spacing adjustable?
Yes, the string spacing can be adjusted between 10mm to 40mm to meet specific production requirements.
6. What are the dimensions of the machine?
The overall dimensions of the machine are 3875mm × 1320mm × 2100mm.
7. What type of power supply is required for the machine?
The machine requires a 3-phase 380V power supply at 50HZ, with reliable grounding.
8. What is the power consumption of the machine?
The power consumption of the machine is 12.5KW.
9. What is the maximum deviation of ribbon and grid line?
The deviation of the ribbon and grid line is less than ±0.2mm.
10. What is the battery string straightness deviation?
The battery string straightness deviation is less than 1mm.
11. What is the applicable air pressure for the machine?
The applicable air pressure for the machine ranges from 0.6 to 0.8 MPa.
12. What is the compressed air flow requirement?
The machine requires a compressed air flow of 100L/min.
13. Does the machine offer automated functions?
Yes, the system combines both automated and manual functions for various stages of the solar panel manufacturing process.
14. What sizes of panels can be produced?
The machine can produce panels sized 125mm x 125mm and 156mm x 156mm, as well as panels with sizes up to 40mm x 156mm.
15. What makes this machine cost-effective?
With a low breakage rate and high production capacity, the machine minimizes wastage and maximizes efficiency, making it a cost-effective solution for solar panel production.
