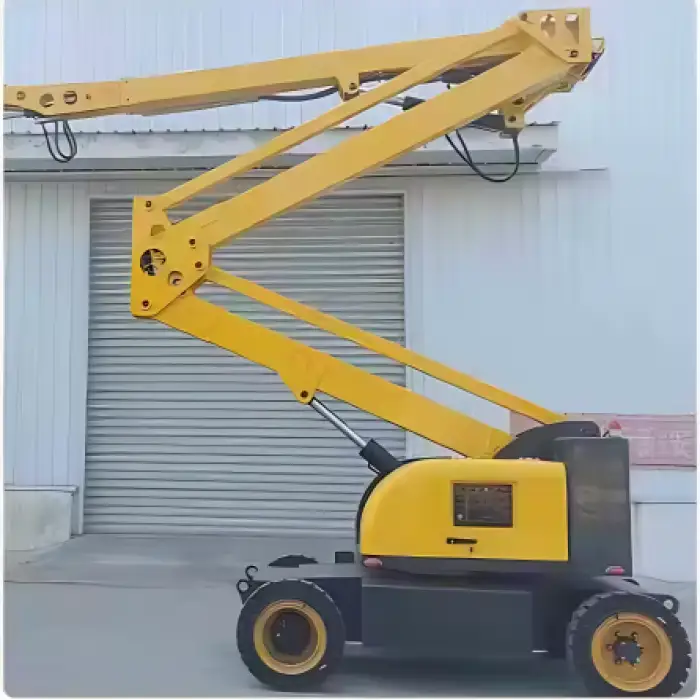

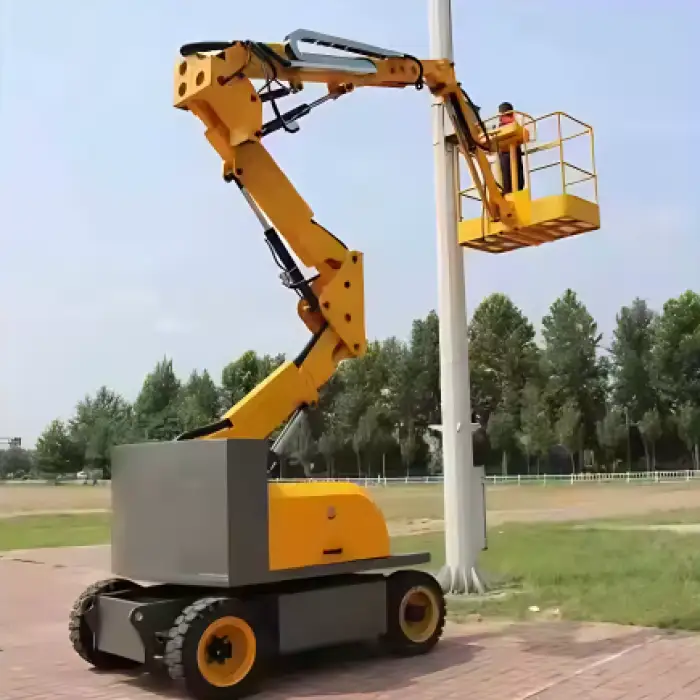

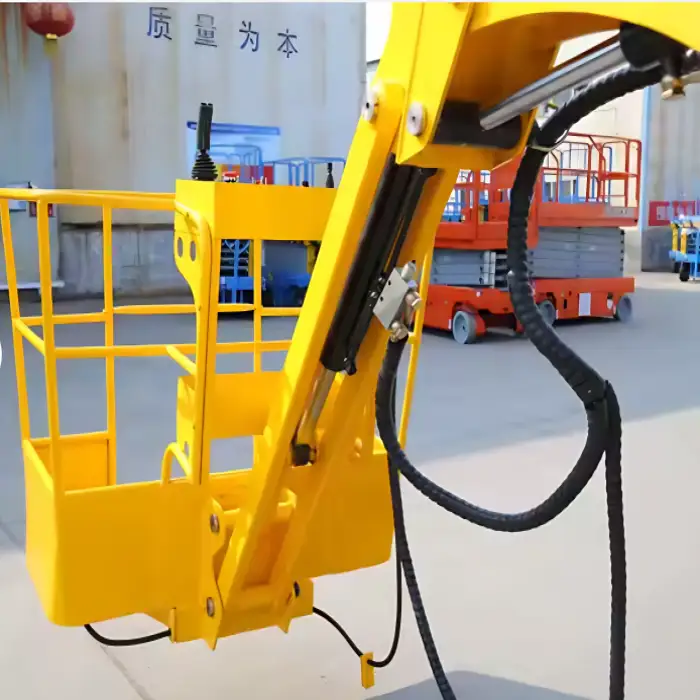

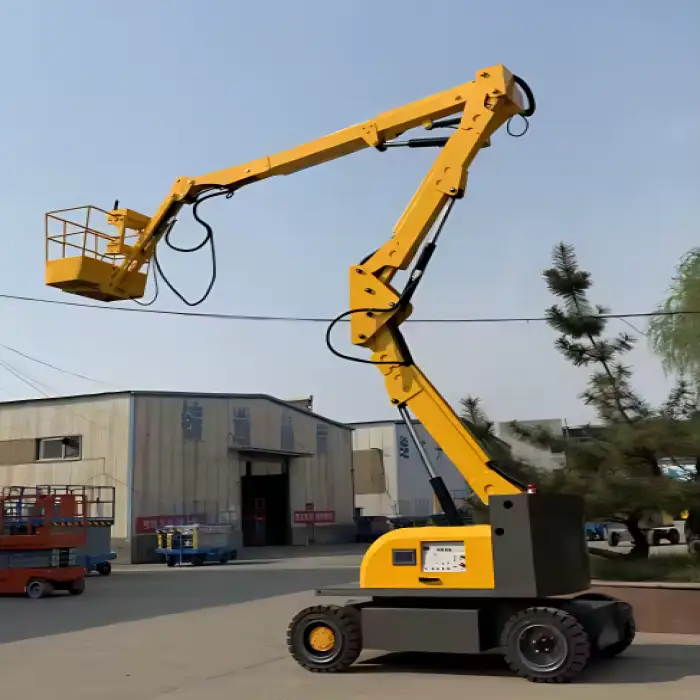

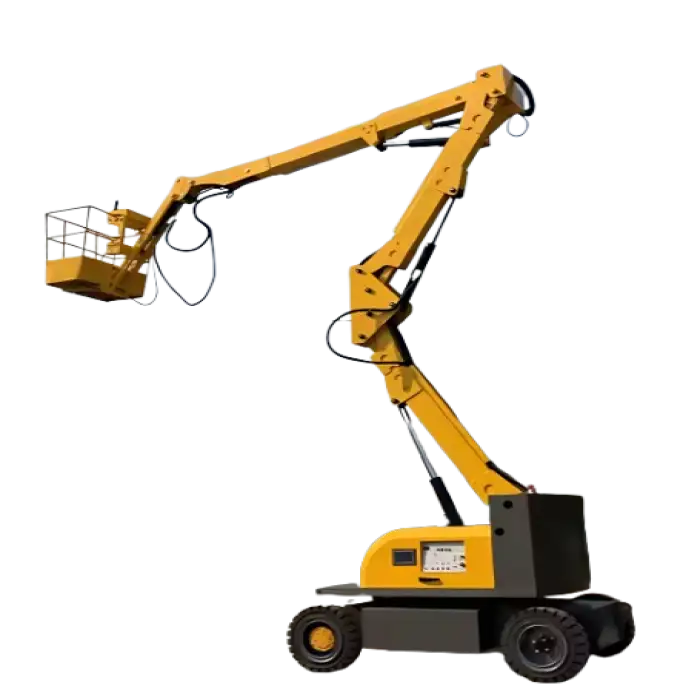

The Self-Propelled Curved Arm Lift is a versatile and powerful hydraulic vehicle-mounted elevating platform, perfect for a variety of industries. Whether you’re in construction, manufacturing, or retail, this lift ensures safety, efficiency, and ease of use in any lifting task.
| No. | Item | Parameter |
|---|---|---|
| 1 | Max working height | 18m |
| 2 | Max platform lift height | 16m |
| 3 | Maximum operating radius | 8.9m |
| 4 | Maximum spanning height | 8.2m |
| 5 | Max Load capacity | 230kg |
| 6 | Driver item | Motor rear axle drive |
| 7 | Battery capacity | 2V×24/250AH |
| 8 | Charger | 48V/30A |
| 9 | Travel motor | AC6.5kw/48V |
| 10 | Lift motor | 4kw/DC48v |
| 11 | Platform size | 1.88*0.78m |
| 12 | Max overall size | 7.382.092.2m |
| 13 | Height of platform after shrinking | 150mm |
| 14 | Axis distance | 2100mm |
| 15 | Wheelbase | 1800mm |
| 16 | Boom quantity | 3 knots (The third section is the telescopic arm) |
| 17 | Boom swing | ≤0.5% |
| 18 | Fly arm luffing range | -60°/+80° |
| 19 | Walking speed (closed state) | 4km/h |
| 20 | Chassis maximum allowable angle | 1.5°/3° |
| 21 | Turntable rotation angle | 355° non-continuous |
| 22 | Gradeability | 25% |
| 23 | Drive steering form | Rear wheel drive, front wheel steering |
| 24 | Minimum turning radius | Outer wheel: 4.55m, Inner wheel: 1.85m |
| 25 | Platform rotation angle (optional) | ±80° |
| 26 | Control voltage | 24V |
| 27 | Tire | 28×9-15 solid tire |
| 28 | Hydraulic oil tank volume | 60L |
| 29 | Self weight | 7500kg |
This Self-Propelled Curved Arm Lift is an excellent solution for companies requiring reliable and efficient lifting equipment for various tasks, ensuring safety and productivity in the workplace.
