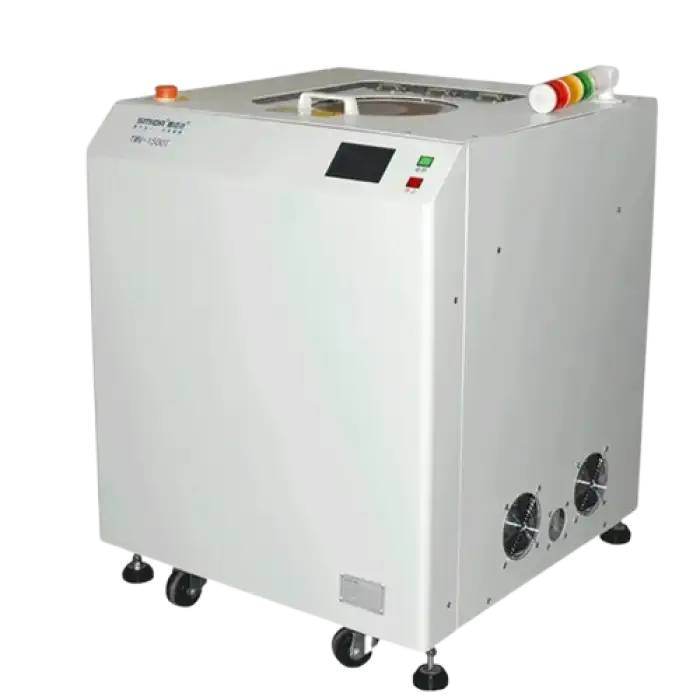

The 1500ml Planetary Centrifugal Mixer is a high-performance laboratory mixer designed for handling high viscosity materials and composite products. Its precision and versatility make it an ideal choice for mixing raw materials in a range of advanced applications, including cosmetics and chemicals.
Planetary centrifugal mixer---Vacuum---Fixed roration ratio
Capable of evenly stirring various materials in a short period of time, including high viscosity materials, liquids, and even nanoscale powder materials.
Both liquid and solid, liquid and liquid, and solid and solid substances can be uniformly mixed...
Products with vacuum decompression can also remove sub micron sized bubbles from the material.
▶Rotation/revolution, even mixing of high-viscosity material using 2 centrifugal forces, rotation and revolution in a short time.
▶Mixing capacity varies from a few grams up to 1.5kg by using different containers, it is able to deal with small amount experiment to mass production.
▶Up to 20 preset programs(Can be customized), every program can be set to 5 different mixing time and speed, it is able to deal with different types of the materials.
▶Max rotation speed is 2500rpm, even the high viscosity material can be mixed evenly .
▶The key parts are all imported and the big brand in the industry, which guarantees the stability of high load long-term use.
▶Some functions can be customized according to customer's request.
Principle | The interaction between rotation and revolution, generate eddy currents and upward and downward convection, complete mixing and defoaming of materials. | ||
Speciality | Mix multiple materials evenly in a short period of time; Without mixing blades, it will not damage the material; No direct contact with materials, no pollution to materials. |
Product name | Planetary centrifugal deaeration mixer |
Way of working | Rotation/Revolution/Non-contact/Vacuum |
Revolution speed | 100-2500rpm |
Rotation speed | 0-2 revolution rotation speed ratio adjustable revolution rotation speed ratio fixed |
Continuous running time | 30mins |
Mixing program | 5 segments/group, 20groups |
Vacuum measurement method | High precision vacuum sensor |
Work environment | 10-35℃, 35%-80%RH |
Safety function | Emergency stop button, Door lock sensor, Vibration sensor, Vacuum sensor |
Models | Maximum capacity | Power | Vacuum capacity | Overall size(mm) | Weight |
CMV-180S | 150ml, 150g*2 or 700ml, 350g*2 | AC220V, 1.5KW | 21m³/0.5±0.5kpa | L800*W580*H650 | 13kg |
TMV-200T | 300ml, 150g*2 | AC220V, 1.5KW | 16m³/0.5±0.5kpa | L800*W550*H620 | 120kg |
TMV-500T | 700ml, 350g*2 | AC220V, 1.5KW | 21m³/0.5±0.5kpa | L800*W650*H620 | 120kg |
TMV-1000T | 1500ml, 750g*2 | AC220V, 1.8KW | 21m³/0.5±0.5kpa | L930*W670*H720 | 175kg |
Mixing Capacity
Our containers have complete specifications and sizes, you can choose containers with the maximum capacity of the equipment or use your own company's containers to customize adapters to meet the needs of different customer groups, from research experiments to production.
