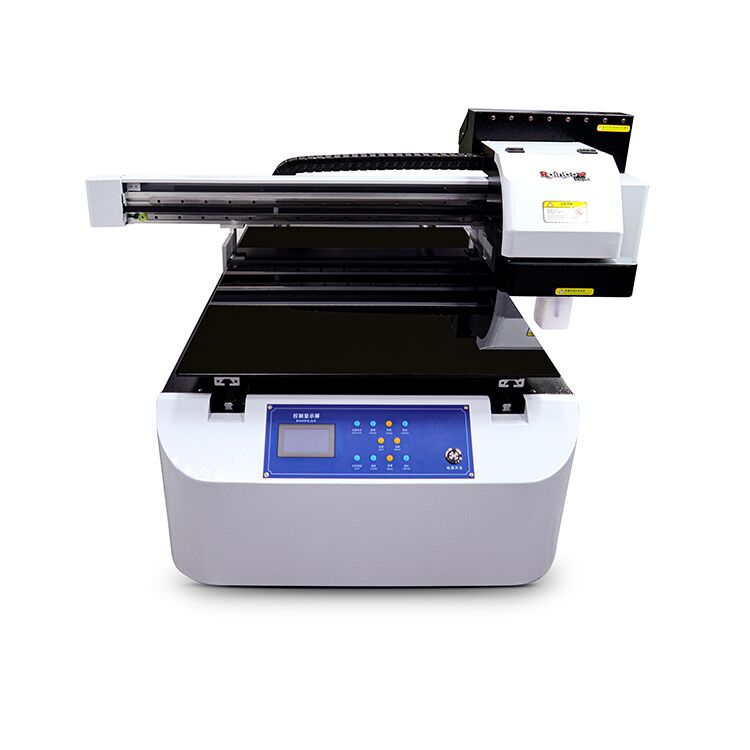

| Specs of Rainbow Nano 9 UV flatbed printer | |||
| Name | Rainbow Nano 9 A1+ 6090 digital uv printer | Working Environment | 10 ~ 35 ℃ HR40-60% |
| Machine Type | Automatic Flatbed UV digital printer | Printer Head | Three Printer Heads |
Features | · The UV light source can be adjusted | RIP Software | Maintop 6.0 or PhotoPrint DX 12 |
| · Auto height measurement | Operation System | All Microsoft Windows system | |
| . Power auto flash clean | Interface | USB2.0/3.0 Port | |
| ·Print on most material directly | Languages | English/Chinese | |
| · Ideal for industrial bulk production with high printing speed | Ink Type | UV LED curing ink | |
| · Finished products is Water proof, UV proof, and Scratch proof | Ink System | CISS Built Inside With Ink Bottle | |
| · Finished product is suitable for outdoor use | Ink Supply | 500ml/Bottle | |
| · Max printing Size: 60*90cm | Height Adjustment | Automatic with Sensor. | |
| · With fixed angel | Driving Power | 110 V/ 220 V. | |
| · The printing machine can print white color and 3D emboss effect | Power Consumption | 1000W | |

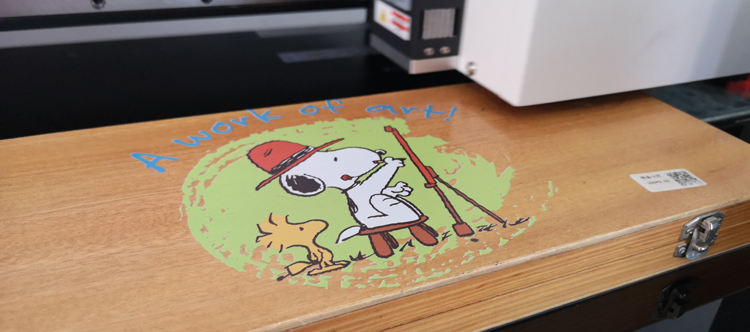

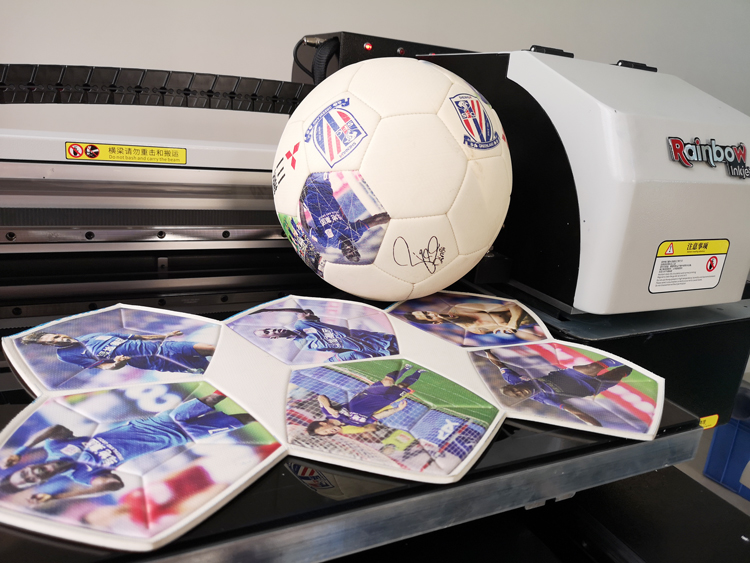

| Materials to Print | · Metal, Plastic, glass, wood,Acrylic, Ceramics,PVC,Steel board,Paper, | Media Feeding System | Auto/Manual |
| ·TPU, Leather, Canvas, etc | Ink Consumption | 9-15ml/SQM. | |
| UV Curing System | Water Cooling | Print Quality | 720×720dpi/720*1080DPI（6/8/12/16pass） |
| Printing Method | Drop-on-demand Piezo Electric Inkjet | Machine Dimension | 106x104x65CM |
| Printing Direction | Smart Bi-directional Printing Mode | Packing Size | 116x114x85CM |
| Printing Speed | About 5 minutes for 720*720dpi, 600mm*900mm size | Machine Net Weight | 135kg |
| Max. Print Gap | 16cm | Gross.Weight | 185kg |
| Power Requirement | 50/60HZ 220V(±10%)<5A | Packing Way | Wooden Case |
Details Images

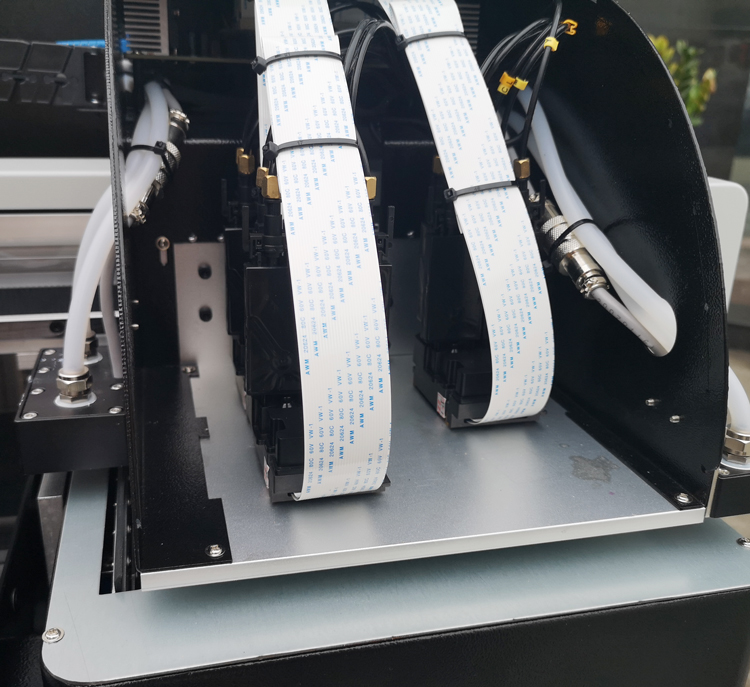

The machine uses 4 pieces head main board but we install it with three heads——this make printer work more stable because we use higher configuration main board.

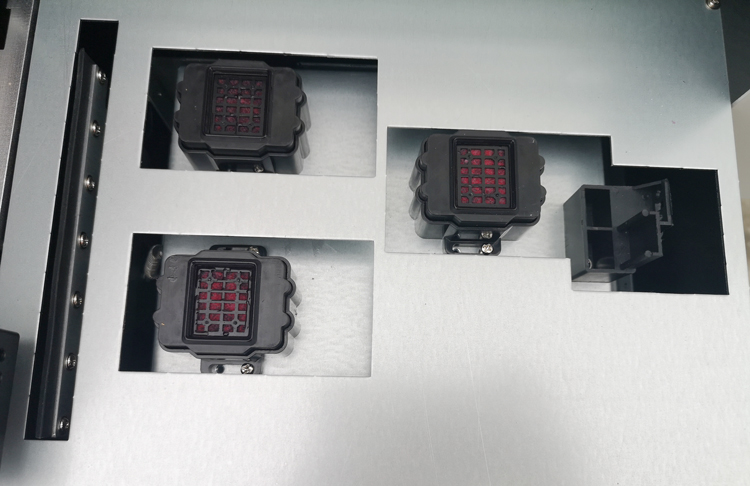

Three pieces print heads makes the printing speed very quick, and all colors can be printed.

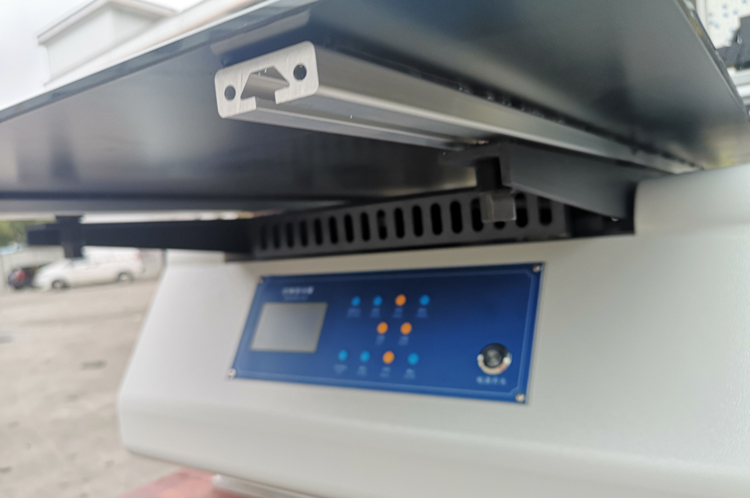

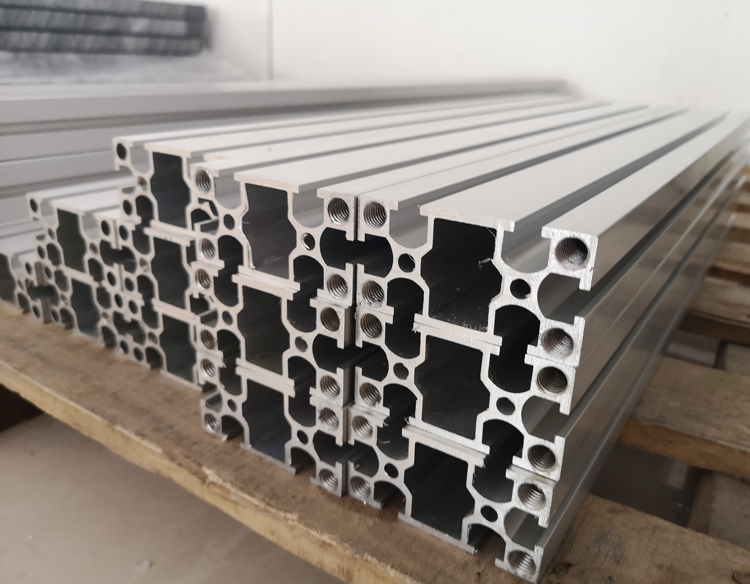

Nano 9 uses thick mold opening and customization frame which helps to improve the printing accuracy on any materials.

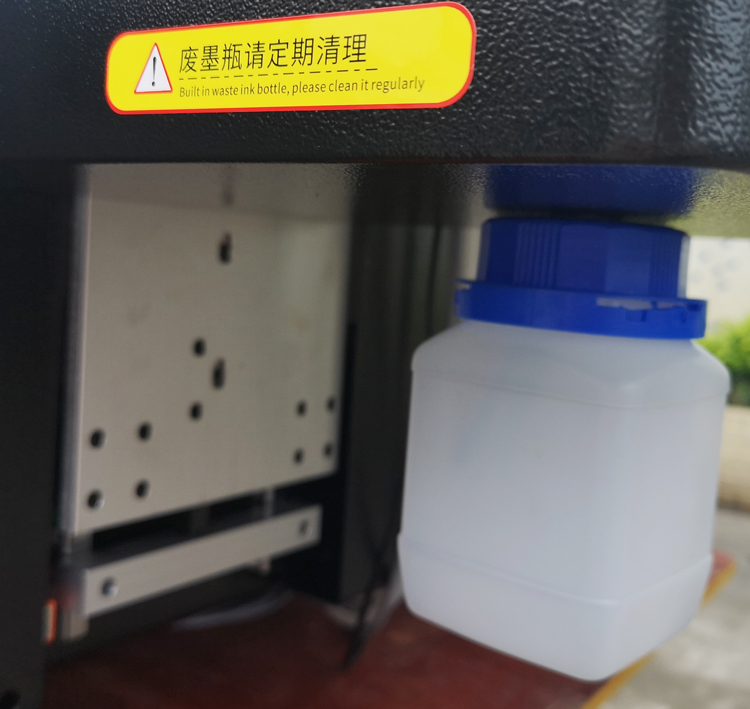

The uv printer uses transparent waste ink tank, we can check the tank is full or not so that we can clean it by checking it.

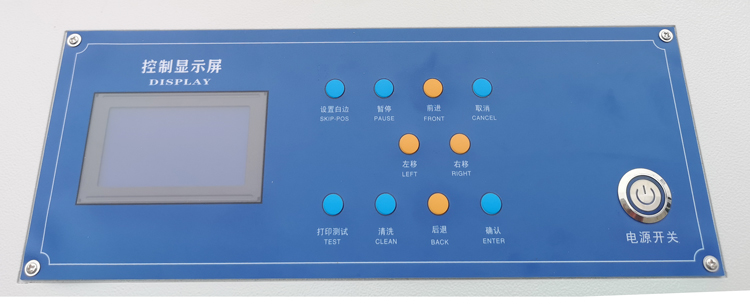

Large English/Chinese control button helps easy control of the machine.

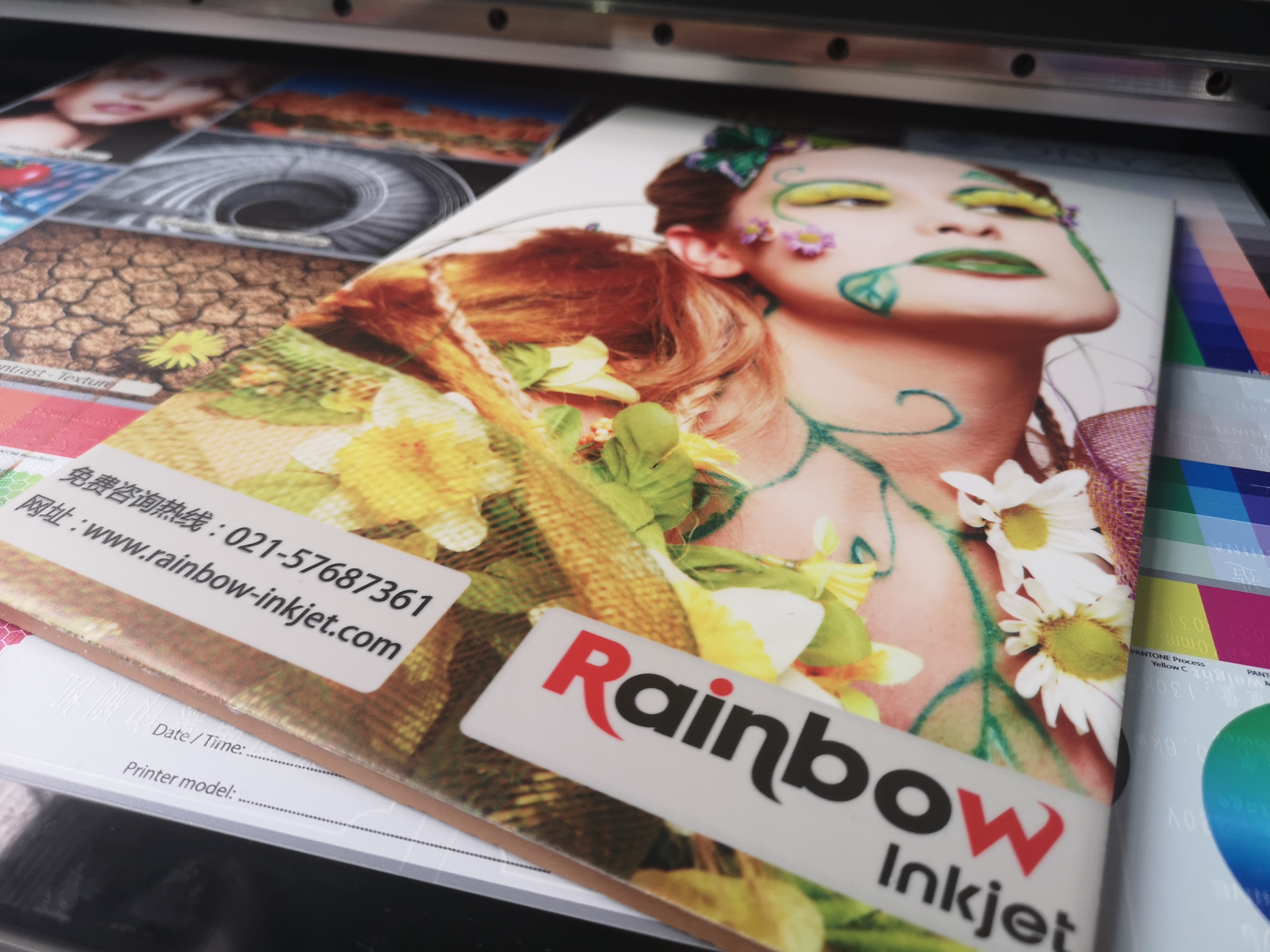

The uv printer can print with 3D texture effect and vanish glossy effect.

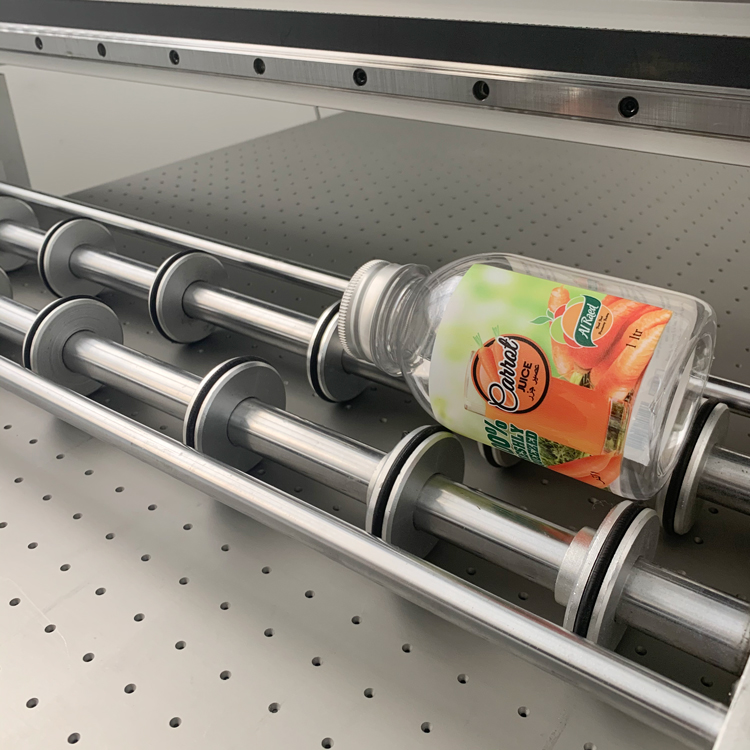

Nano 9 equipped with two kinds of rotary devices for any bottles printing, the allowed diameter is from 1cm to 12cm, all tiny cylinder can be printed
