Q35Y-20 Hydraulic Ironworker 90T 100T Hydraulic Combined Punching and Shearing Machine Power Press
- Section : Machinery
- Category : Machine Tool Equipment
- SKU : 1601380914279

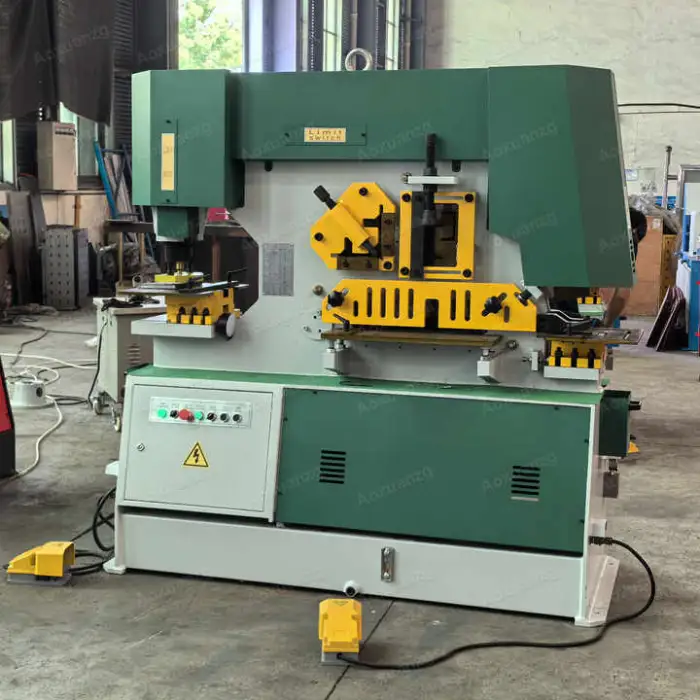

Q35Y-20 Hydraulic Ironworker 90T 100T Hydraulic Combined Punching and Shearing Machine Power Press
The Q35Y-20 Hydraulic Ironworker is a powerful and versatile machine designed for punching and shearing steel and metal. It combines strength with ease of use, making it an essential tool for metalworking professionals. With a nominal force of 900 KN, this machine can handle tough tasks efficiently. Whether you need to punch holes or shear metal sheets, the Q35Y-20 is up to the job.
Specifications
| Attribute | Details |
|---|---|
| Power Source | Hydraulic |
| Nominal Force | 900 KN |
| Voltage | 380V, 220V |
| Weight | 2.5 t |
| Motor Power | 5.5 kW |
| Max Shearing Thickness | 20 mm |
| Punching Pressure | 900 KN |
| Certification | CE, ISO |
Key Features
- Multifunctional design for punching and shearing.
- Durable construction for long-lasting use.
- Easy to operate with standard controls.
- Powerful hydraulic system for efficient performance.
- Compact design for space-saving in workshops.
Applications
- Metal sheet punching for fabrication tasks.
- Shearing metal sheets for precise cuts.
- Manufacturing components for construction projects.
- Metalworking in workshops and factories.
- Custom metal part production for various industries.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the nominal force (tonnage) of the Q35Y-20 Hydraulic Ironworker?
The Q35Y-20 has a nominal punching/shearing force of 900 kN, which is approximately a 90‑ton class ironworker (often marketed as 90T–100T).
2. What are the main functions of this machine?
It is a combined hydraulic ironworker designed for punching holes and shearing metal sheets and shapes. The multifunctional design supports punching, flat bar and angle shearing, and other common metalworking tasks.
3. What is the maximum shearing thickness?
Maximum shearing thickness is 20 mm for appropriate mild steel materials as specified.
4. What are the electrical requirements and motor power?
The machine is hydraulic and supplied for 380V or 220V electrical systems. The motor power is 5.5 kW. Confirm whether you need single‑phase or three‑phase supply with your supplier/installation team.
5. How heavy is the machine and how much workshop space does it need?
Net weight is approximately 2.5 tonnes. The design is compact for space‑saving, but recommended floor space and layout details should be obtained from the datasheet or manufacturer for installation planning.
6. What certifications does the Q35Y-20 carry?
This model carries CE and ISO certifications, indicating compliance with relevant European safety and international quality management standards.
7. What tooling does the ironworker use and is tooling included?
The machine uses punch and die tooling compatible with its punch station capacity. Standard tooling may be included depending on the supplier/package. For specialty dies (round, oblong, special sizes) order compatible tool sets from the manufacturer or approved tooling suppliers.
8. What routine maintenance is required?
Regular maintenance includes checking and topping hydraulic oil, inspecting and changing filters, greasing moving parts, checking tooling for wear, and inspecting hoses and fittings for leaks. Follow the manufacturer's maintenance schedule in the user manual for intervals and lubricant specifications.
9. What type of hydraulic oil should be used?
Use the manufacturer‑recommended hydraulic oil and viscosity grade. Many hydraulic ironworkers operate with mineral hydraulic oil in a typical ISO VG range (e.g., VG32–VG46), but always confirm the exact grade and change intervals in the machine manual.
10. What safety features should I expect and what safety measures are recommended?
Standard controls are provided for easy operation; typical safety measures include emergency stop, machine guards, and interlocks where applicable. Always use appropriate guarding, personal protective equipment, and follow safe operating procedures as described in the manual. Additional safety accessories may be available as options.
11. Can the machine handle different metal types (e.g., stainless steel, aluminum)?
Yes — it can punch and shear various metals (mild steel, stainless steel, aluminum), but maximum thickness/quality depends on material properties. Harder metals or thicker sections may require reduced capacities or special tooling — consult the supplier for guidance.
12. Is installation or a concrete foundation required?
A stable, level floor is required; some installations benefit from anchoring to a concrete foundation for safety and precision. Exact installation and foundation requirements should be provided by the manufacturer or in the installation manual.
13. Are spare parts and service available?
Spare parts and service are generally available through the manufacturer or authorized distributors. It's recommended to establish service/support arrangements at purchase and keep a set of commonly used spare parts (seals, filters, tooling) on hand.
14. Can this machine be customized or fitted with optional attachments?
Yes — many ironworkers offer optional tooling, attachments, and safety accessories to expand capability. Contact the manufacturer or supplier to discuss available options and custom configurations to meet your production needs.
