The ZX7550ZW has a maximum drilling diameter of 50 mm.
The maximum end milling width is 100 mm.

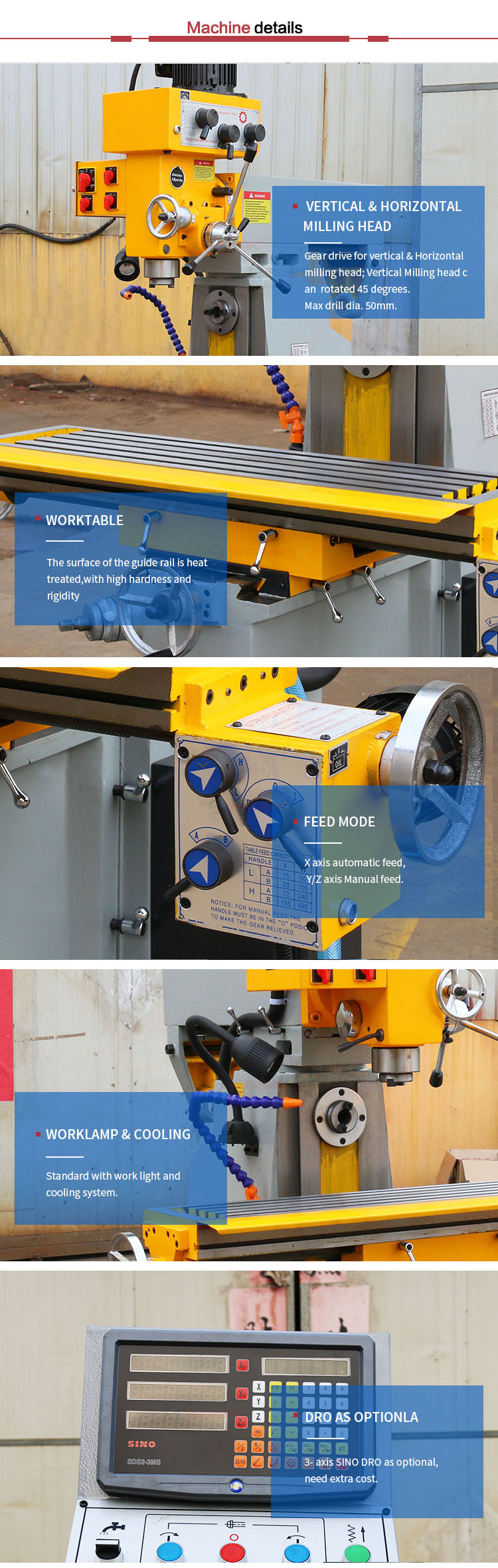

The spindle speed range is 90-2000 RPM for vertical milling and 80-1300 RPM for horizontal milling.
The distance from the spindle nose to the table surface is adjustable between 90-490 mm.
The maximum vertical milling diameter is 25 mm.
Yes, the ZX7550ZW can handle tapping operations with a maximum tapping diameter of M16.

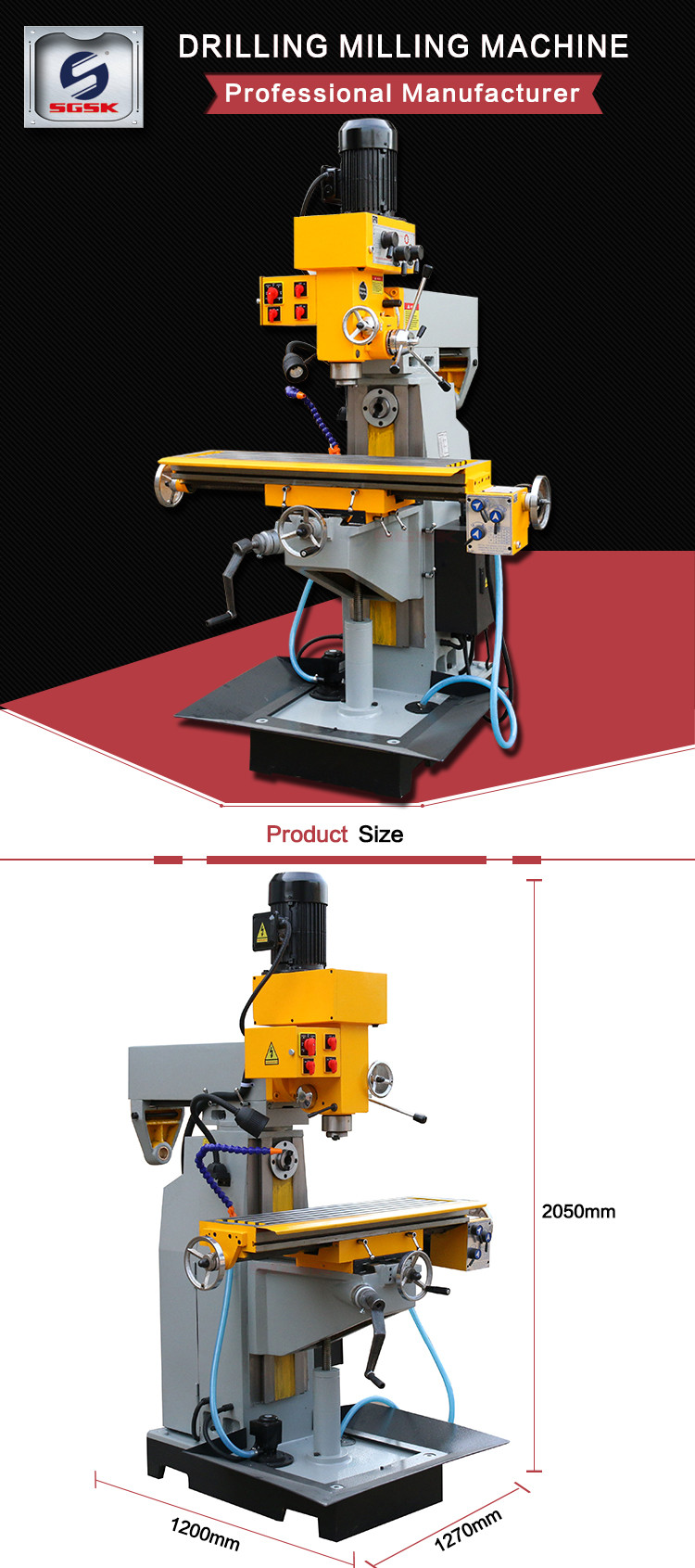

The overall dimensions are 1280 mm x 1285 mm x 2080 mm.
The machine weighs between 900 kg and 1000 kg, depending on the configuration.
The ZX7550ZW uses an MT4 spindle taper.
The table size measures 1000 mm x 240 mm.
The spindle has a travel of 120 mm.
The maximum boring diameter is 120 mm.
The table feed speed range is between 16 mm/min and 480 mm/min.
The spindle motor power is rated at 1.5/2.2 kW for vertical and 2.2 kW for horizontal operations.
Yes, the ZX7550ZW is CE certified, ensuring it meets safety and environmental standards.
