The machine operates on a semi-automatic grade, allowing for both efficient operation and user-friendly controls.
The machine requires a voltage of 380V for optimal performance.
The total weight of the machine is approximately 2000 KG.

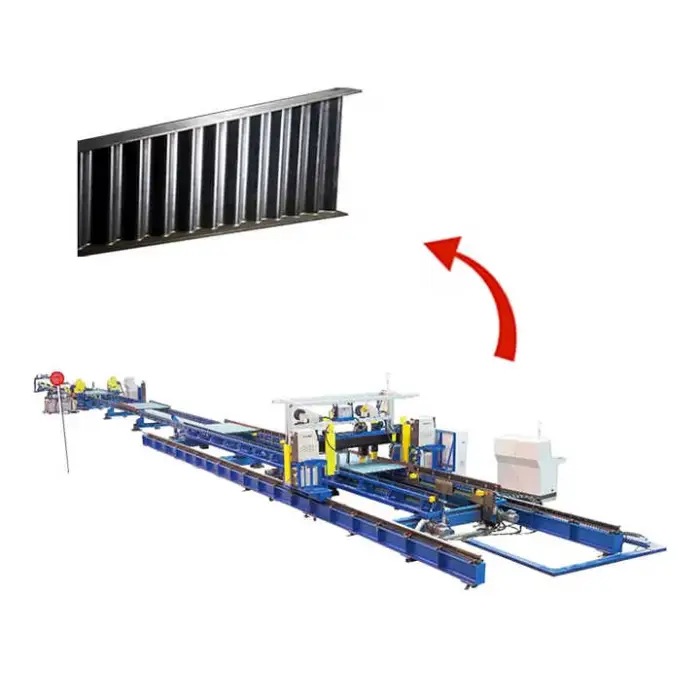

The machine can produce H beams ranging from 4 to 16 meters in length.
This machine can handle H beam heights between 300 mm and 1500 mm.
The machine can process corrugated web thicknesses of 2-6 mm for materials with a yield strength of ≤235MPa, and 2-4 mm for materials with a yield strength of ≤345MPa.
The machine can accommodate flange thicknesses ranging from 8 mm to 30 mm.
This machine is suitable for applications in construction, heavy machinery manufacturing, structural support in industrial applications, custom metal structures, and component fabrication for bridges and large structures.
Yes, it includes essential metal cutting and processing machinery, along with a coil slitting machine and a hydraulic press for strong metal forming.
The complete line layout area required for installation is 92 meters in length and 4 meters in width.
The single package size is 40X30X1 cm, and the single gross weight is 6.000 KG.
The semi-automatic operation allows for faster processing times while maintaining precision, reducing the need for constant manual intervention.
Yes, the machine is designed to produce H beams in various sizes and thicknesses to meet different project specifications.
Yes, the sinusoidal wave height on the corrugated web is adjustable and can be set to approximately 40-43 mm.
The sinusoidal wave distance of the corrugated web is about 155 mm.
