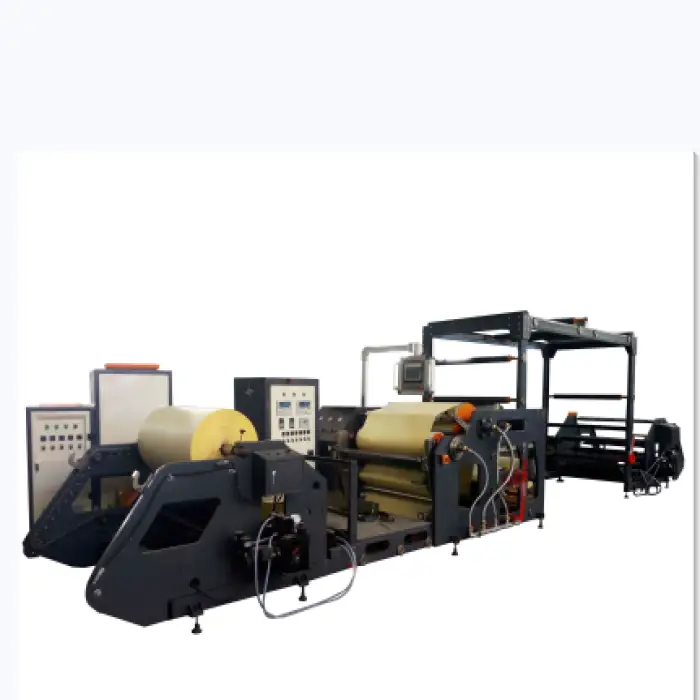

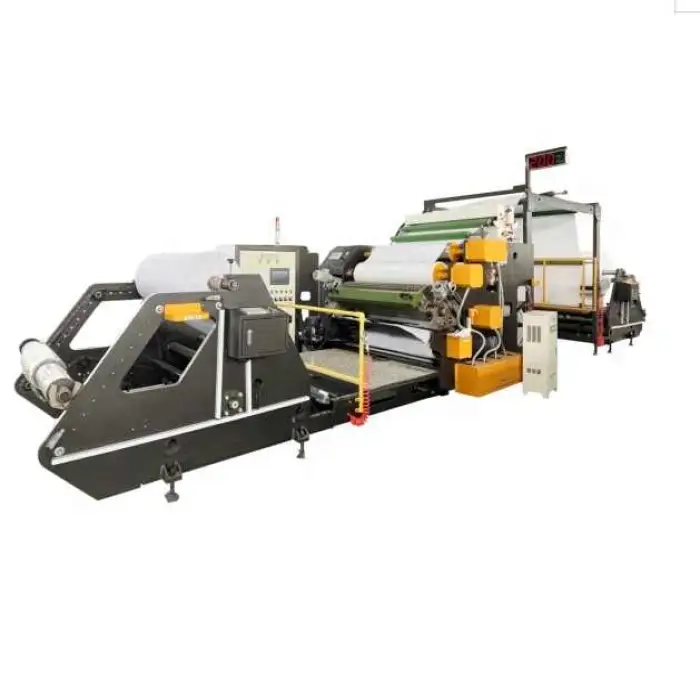

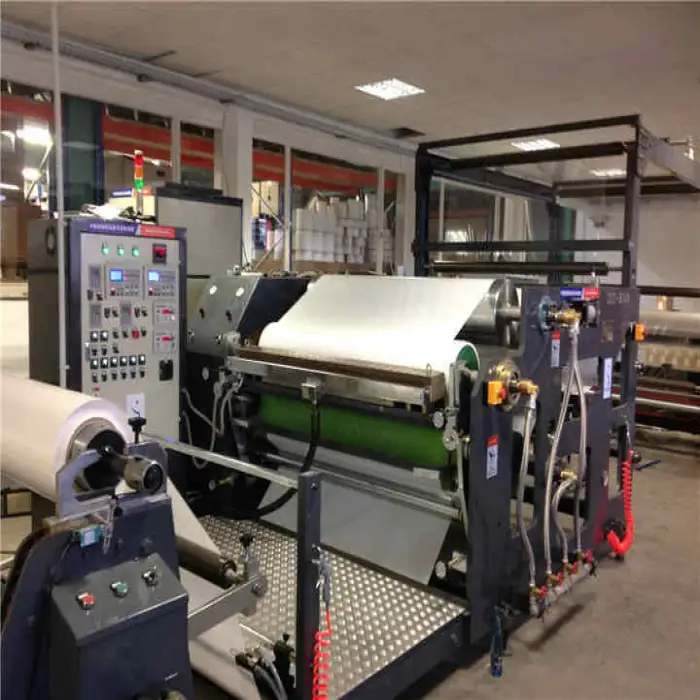

The Melt Coating Laminating Machine requires a voltage of 380V.
The machine can operate at a maximum working speed of 100m/min, with an optional lower speed of 50m/min.
The machine uses a slot die (knife coating) method for applying adhesive.
The machine can apply a coating weight ranging from 10 to 100g/m2.
This machine is designed for use with hotmelt adhesive.
The Melt Coating Laminating Machine can accommodate a coating width from 200mm to 4000mm.
The unwind and rewind diameters can range from 600mm to 1500mm.
The machine is packaged in a wooden case for safe transportation.
The gross weight of the Melt Coating Laminating Machine is 3500 kg.
Yes, the Melt Coating Laminating Machine is fully automatic.
The core components include a PLC, engine, bearing, gearbox, motor, pressure vessel, gear, and pump.
Yes, there is an optional constant tension controller available for the machine.

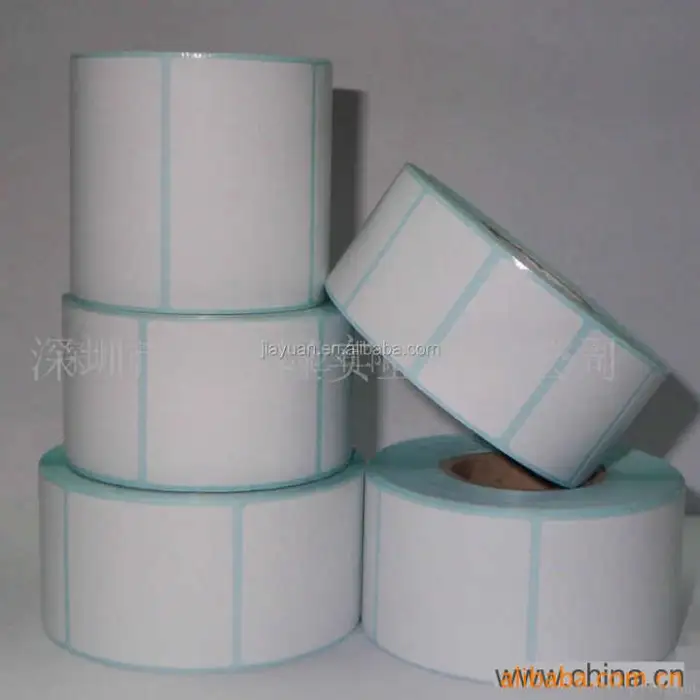

This machine is suitable for various industries, including food and beverage packaging, commodity labeling, chemical product labeling, machinery and hardware applications, as well as apparel and textiles production.
The single package size is 650 cm x 320 cm x 160 cm.
You can invest in the Melt Coating Laminating Machine by contacting our sales team or visiting our website for more information on purchase options.
