Macsensor Water Level Sensor – Industrial Grade
- Section : Consumer Electronics
- Category : Test Instruments
- SKU : 1600941492000
Macsensor Water Level Sensor – Industrial Grade
The Macsensor Water Level Sensor is designed for precise level measurement in a variety of industrial applications. Whether you need to monitor water tanks, liquid reservoirs, or other liquids, this sensor provides reliable, high-accuracy readings. Constructed from durable materials such as SUS304/316L stainless steel and polypropylene glass fiber, it is engineered to withstand demanding environments with protection ratings of IP68/IP67.
Key Features
- Material: Available in SUS304/316L stainless steel or polypropylene glass fiber for corrosion resistance and durability.
- Measurement Mode: Supports both contact and non-contact measurement modes, offering versatility for different applications.
- Measuring Range: Can measure water levels from 0 to 100 meters (with 2m available at the standard price).
- Output Signal: Offers multiple output signal options including:
- 4-20mA (standard price)
- 0-10V
- 0.5-4.5V
- SDI-12
- RS485 Modbus RTU
- Accuracy: Features an accuracy of 0.5% (standard price), with an optional 0.25% for higher precision.
- Working Temperature: Designed to operate in temperatures up to 100°C for a wide range of environments.
- Protection: Equipped with IP68/IP67 ratings for protection against water and dust ingress.
- Power Supply: Customizable to meet specific application requirements.

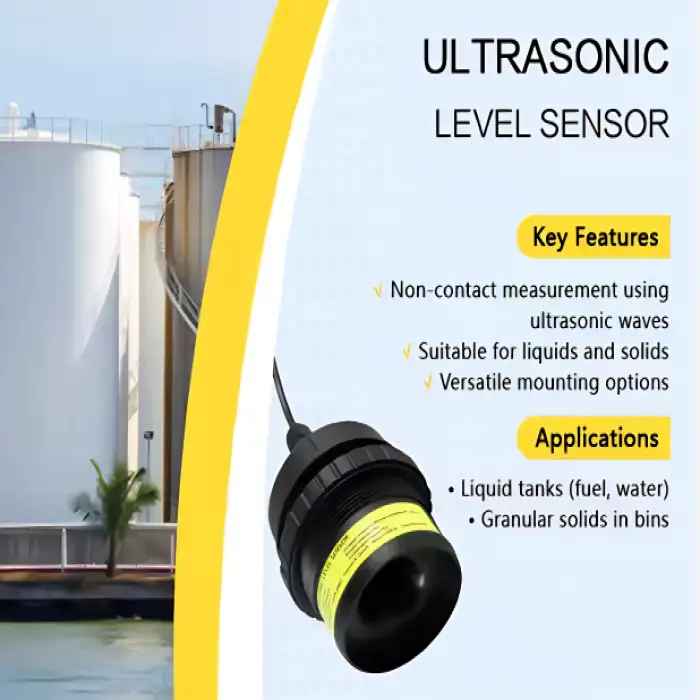

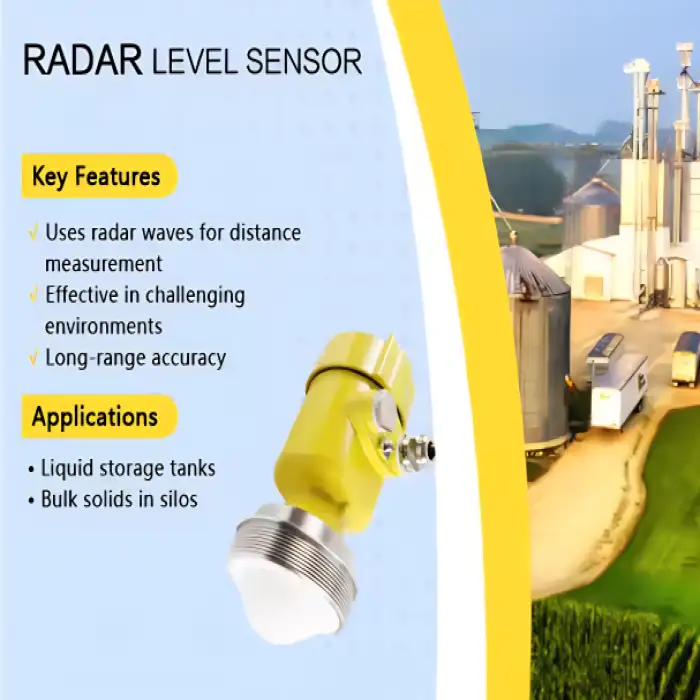

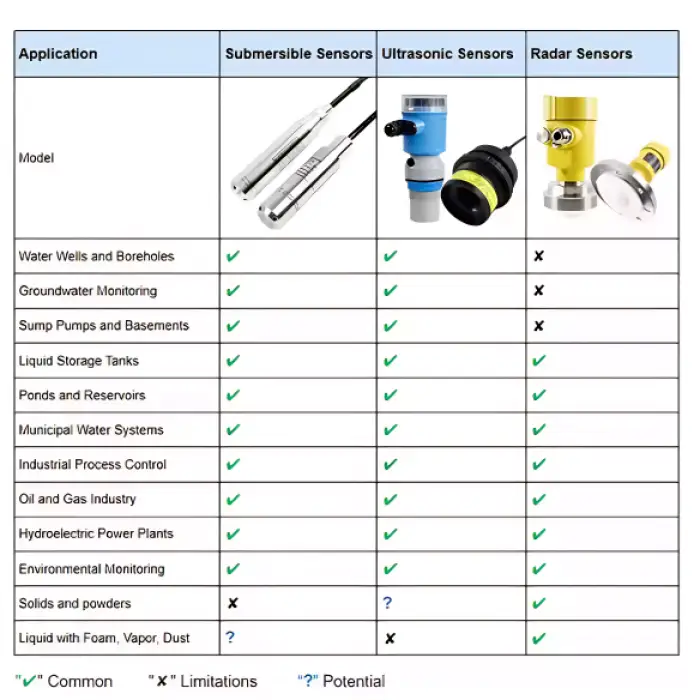

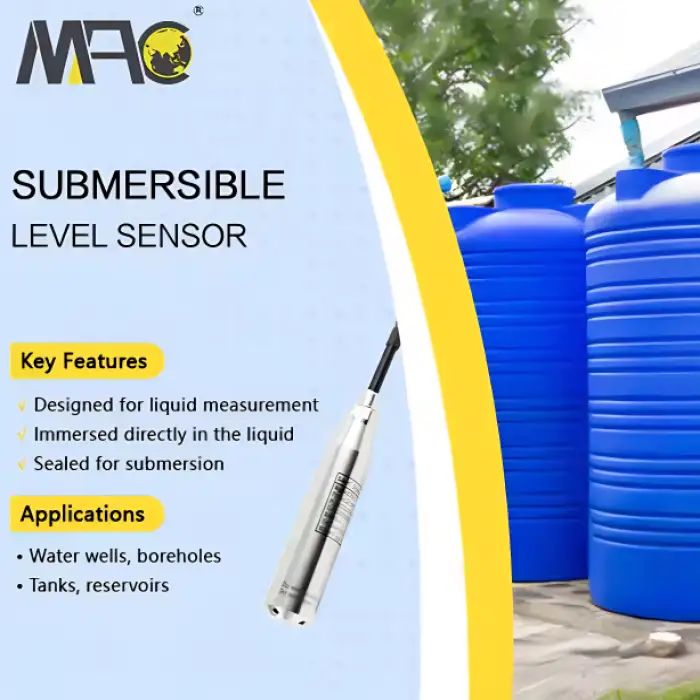

| Technology | Pressure senor | Ultrasonic | 80G Hz Radar | Wireless |
| Model | L703 | UL103 | MQ8 | MZW2603 |
| Level Range | 0-1..100m mH20 (Special by customized) | 2.5m, 5m, 10m, others on request | 0.1~120m | 0-1m... 50m level by customized |
| Output | 4-20mA, 1-5V, 0-5V, 0-10V, 0.5-4.5V Ratiometric, SDI-12, RS485 Modbus RTU | RS485+4~20mA; RS485+0~5V | 4~20mA ( with HARTbus) or RS-485 | GPRS/3G/4G/LoRa/LoRaWAN |
| Power Supply | 12-36Vdc/10-36Vdc/15-36Vdc/5Vdc/10-30Vdc | 10-30VDC(5-30VDC by customized) | 18-28VDC | DC 3.6V, 19Ah Li-Battery |
| Accuracy | ≤±0.5%F.S,≤±0.25%F.S(by customized) | 0.25%F.S, 0.5%F.S optional | ±1mm/±2mm | 0.5% F.S |
| Working Temp | -30°C...70°C or -30°C...100°C (Customized) | -10...50℃(-40...80℃ by customized) | -4...85°C | 30℃...70℃ |
| Protection | IP68 | IP67 | IP68 | IP68 |
| Key Features | Submerged for continuous level monitoring, Commonly used in wastewater management, environmental monitoring, and industrial processes. | Non-contact measurement using ultrasonic waves, suitable for applications where direct contact is impractical. | The higher frequency allows for better performance in complex environments and with low-reflective substances. Commonly used in industries like chemical processing, oil and gas, and pharmaceuticals. | Eliminates the need for wired connections, providing flexibility in installation. Suitable for locations where running wires is challenging or expensive. |
| Applications | Typically used for measuring liquid levels in tanks, wells, reservoirs, and other liquid storage systems. | Measures liquid or solid levels in tanks and vessels across various industries. Ideal for water treatment, manufacturing, and agriculture. | Ideal for measuring liquid levels in challenging conditions, such as high temperatures, high pressures, or in environments with dust, foam, or vapor. | Used for monitoring and transmitting level data wirelessly to a central control system. |
Applications
The Macsensor Water Level Sensor is perfect for monitoring water levels in water tanks, sewage treatment plants, industrial tanks, and other liquid monitoring systems, ensuring accurate and real-time data collection.
Product Info Gallery
2. Select the Sensor Type:
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 01 Feb, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
