Industrial Automatic Woodworking Wood Board Finger Joint Shaper Tenoner Jointing Jointer Tenoning Cutter Machine Equipment
- Section : Machinery
- Category : Woodworking Machinery
- SKU : 1600601135880

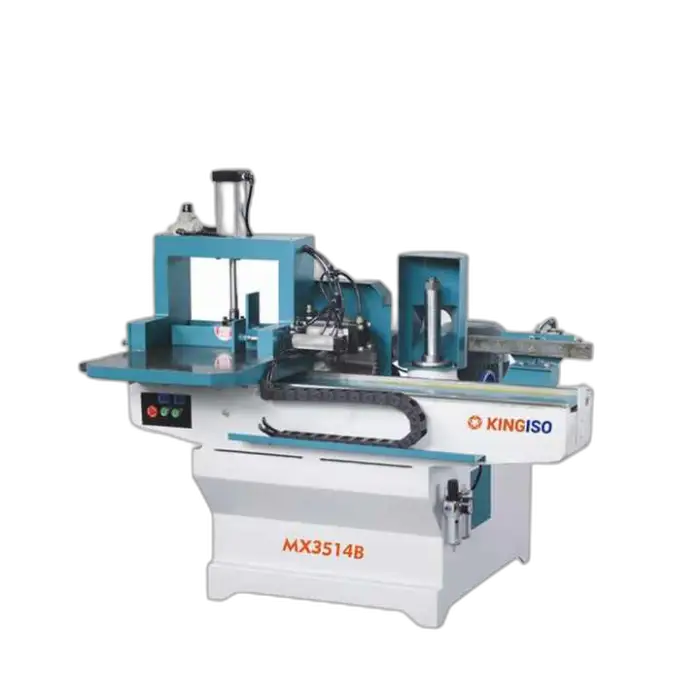

Industrial Automatic Woodworking Wood Board Finger Joint Shaper Tenoner Jointing Jointer Tenoning Cutter Machine Equipment
The Industrial Automatic Woodworking Wood Board Finger Joint Shaper Tenoner Jointing Jointer Tenoning Cutter Machine Equipment is designed to help you create strong and precise wood joints. This powerful machine makes woodworking easier and more efficient. With its advanced features and user-friendly design, you can achieve professional results with minimal effort.
Specifications
| Attribute | Details |
|---|---|
| Power Source | Electrical |
| Core Components | PLC, Engine, Motor |
| Voltage | 220V/380V/Custom |
| Weight | 550 KG |
| Power | 9.7 kW |
| Air Pressure | 0.4-0.6 MPa |
| Video Outgoing Inspection | Provided |
| Machinery Test Report | Provided |
| Dimension (L*W*H) | 1500 x 1410 x 1460 mm |
| Worktable Size | 650 x 540 mm |
| Max Working Width | 400 mm |
| Working Thickness | 140 mm |
| Shaper Spindle Diameter | 50 mm |
| Finger Cutting Knife Diameter | 160 mm |
| Shaper Spindle Speed | 7000 rpm |
| Cut Off Saw Speed | 2840 r/min |
| Cut Off Saw Shaft Diameter | 25.4 mm |
| Cut Off Saw Diameter | 305 mm |
| Shaper Spindle Power | 7.5 kW |
| Packaging Details | Pack in wooden case or according to your request |
| Port of Dispatch | Qingdao, Shanghai, Guangzhou or as your request |
| Selling Units | Single item |
| Single Package Size | 270 x 173 x 155 cm |
| Single Gross Weight | 2000.000 KG |
| Supply Ability | 50 sets per Month |

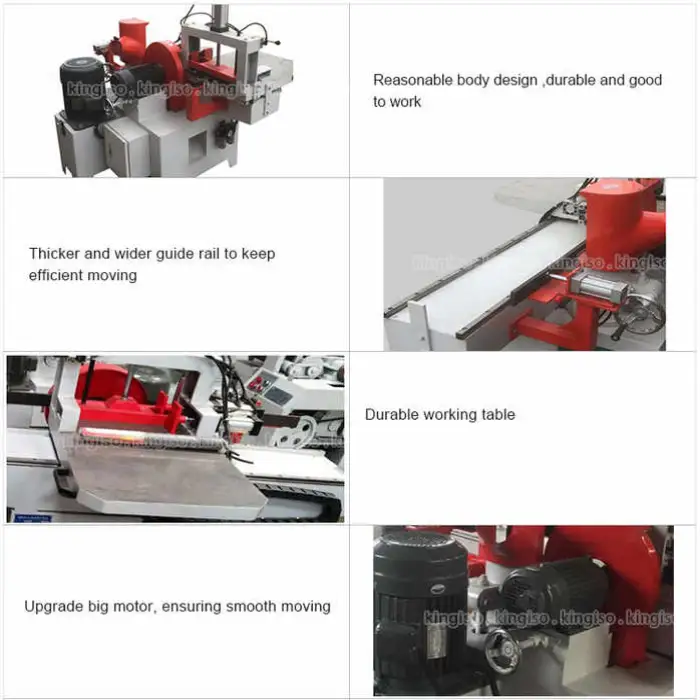

Key Features
- Easy to operate with a user-friendly interface.
- Powerful 9.7 kW motor for efficient performance.
- Handles a maximum working width of 400 mm.Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is this machine used for?

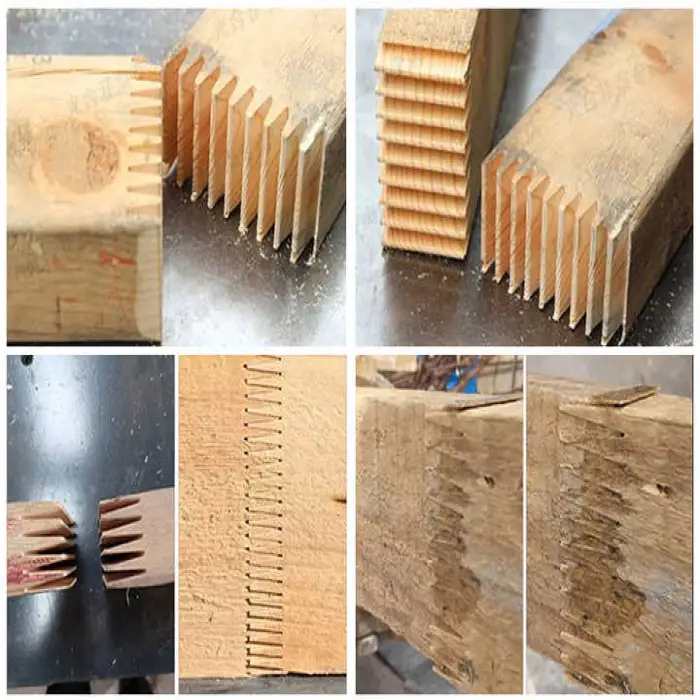

This is an industrial automatic woodworking machine for producing finger joints, tenons and jointed edges on wood boards — combining shaper, tenoner, jointing and cut-off functions to create strong, precise wood joints.
2. What are the maximum workpiece dimensions the machine can handle?
Maximum working width is 400 mm and maximum working thickness is 140 mm. Worktable size is 650 x 540 mm.
3. What are the electrical and pneumatic requirements?
Electrical power is 9.7 kW. Voltage options are 220V, 380V or custom. Required air pressure is 0.4–0.6 MPa.
4. What are the main mechanical and control components?
Core components include PLC control, engine and motor. Key spindles and cutters include a 50 mm shaper spindle diameter, 7.5 kW shaper spindle power and a 160 mm finger cutting knife diameter.
5. What spindle and saw speeds does the machine have?
Shaper spindle speed is 7,000 rpm. Cut-off saw speed is 2,840 r/min with a 305 mm cut-off saw diameter and a 25.4 mm cut-off saw shaft diameter.
6. Is the machine easy to operate?
Yes — the unit is described as having a user-friendly interface and PLC automation to simplify operation; however operator training is recommended for safe, optimal use.
7. Does the machine come with tooling (cutters/knives)?
The specification lists cutter diameters but does not detail included tooling. Contact the supplier to confirm which cutters, knives or tooling packages are supplied or recommended.
8. What safety features are included?
Basic industry-standard safeguards are expected (guards, emergency stop, etc.), but specific safety equipment and certification levels should be confirmed with the supplier prior to purchase.
9. What inspection and test documentation is provided?
A video outgoing inspection and a machinery test report are provided with the machine.
10. How much does the machine weigh and what are its dimensions?
Net machine weight is listed as 550 kg. Packaged (single gross) weight is approximately 2,000 kg. Machine dimensions (L×W×H) are 1500 × 1410 × 1460 mm; single package size is 270 × 173 × 155 cm.
11. What are the packaging and shipping options?
The unit can be packed in a wooden case or per buyer request. Ports of dispatch available include Qingdao, Shanghai and Guangzhou, or other ports by arrangement.
12. What is the supplier's production capacity and lead time?
Supply ability is listed as 50 sets per month. Actual lead time depends on order size, customization and shipping; request a lead-time estimate from the supplier for your specific order.
13. Is after-sales support, installation or operator training available?
The specification does not list exact after-sales terms. Many suppliers offer installation support, commissioning and operator training — confirm available services and any associated costs with the seller.
14. Can this machine be customized for different voltages or configurations?
Yes — the product lists voltage as 220V/380V/Custom and indicates packaging/port options can be tailored. Contact the supplier to discuss specific customization needs.
15. What routine maintenance does the machine require?
Recommended routine maintenance includes daily cleaning of chips and dust, regular lubrication of moving parts, periodic inspection/replacement of cutters and belts, and PLC/control system checks. Follow the manufacturer's maintenance schedule and manual.
