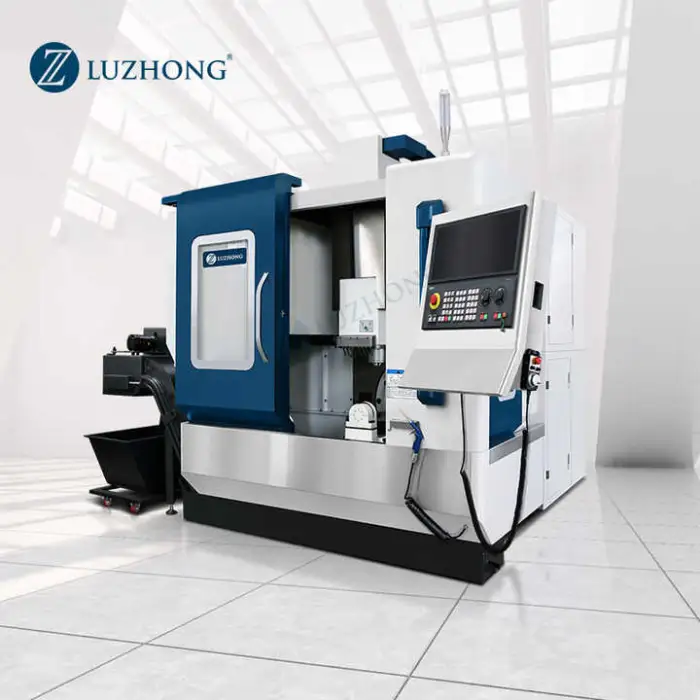

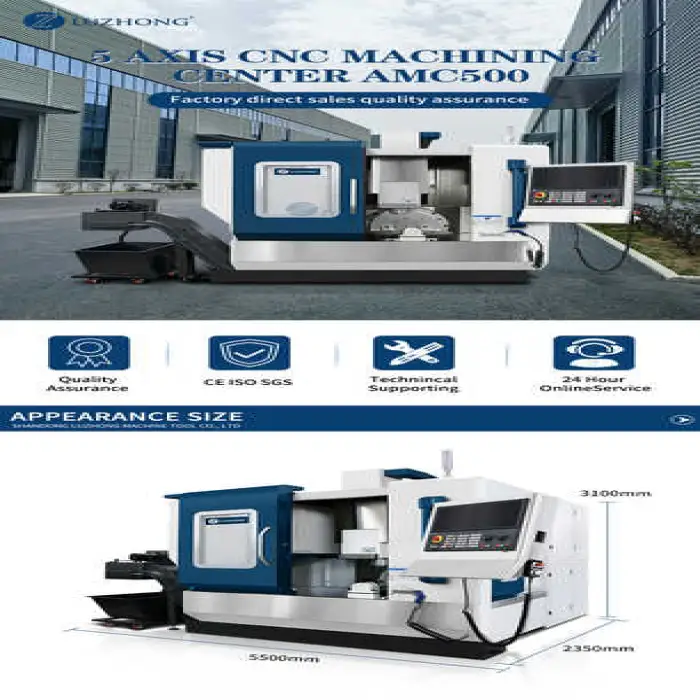

The table size of the AMC500 CNC Milling machine is 500 mm.
The table travel dimensions are 500 mm for X, 600 mm for Y, and 450 mm for Z.
The AMC500 CNC Milling machine uses an HSK-A63 spindle taper.
The maximum table load capacity of the AMC500 is 350 kg.
The AMC500 has a positioning accuracy of ±0.0075 mm.
The rapid feed speed range of the AMC500 is 1-10000 mm/min.
The AMC500 CNC Milling machine can operate at either 220V or 380V.
The minimum time for tool change in the AMC500 is just 2 seconds.
The AMC500 is equipped with a GSK CNC control system.
The AMC500 is suitable for various industries, including automotive and aerospace, as well as for custom tooling and prototype manufacturing.
The AMC500 weighs 11 tons.
Yes, the AMC500 is designed for heavy-duty machining and can efficiently handle robust tasks.
The AMC500 has a maximum spindle speed of 8000 r.p.m.
Yes, the AMC500 features a user-friendly CNC control system that makes operation easy and efficient.
The tool magazine capacity of the AMC500 is 12 tools.
