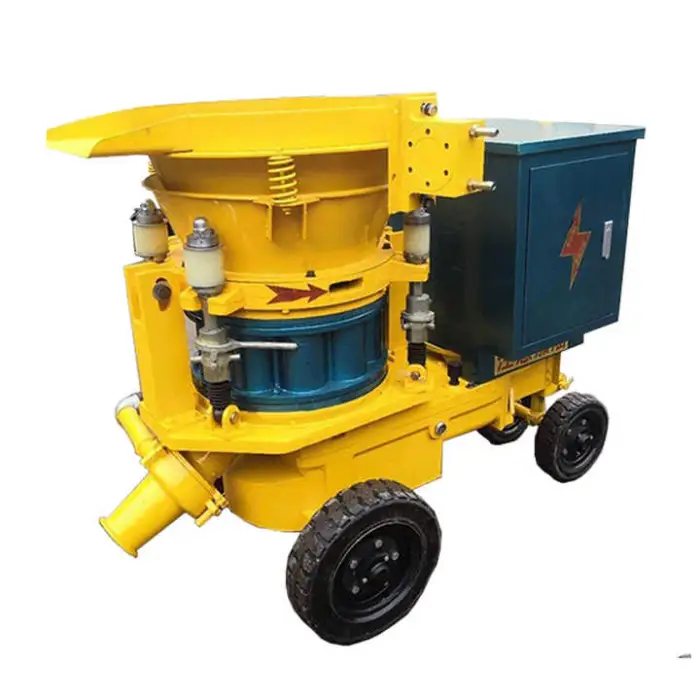

High Performance Dry-mix Concrete Aliva Shotcrete Mortar Spray Machines Gunite Machine
The High Performance Dry-mix Concrete Aliva Shotcrete Mortar Spray Machine is a powerful tool for construction projects. This machine is designed to efficiently spray dry-mix concrete, making it ideal for various applications. It offers excellent performance with a long conveying distance and can handle a variety of materials.
Specifications
| Attribute | Details |
|---|---|
| Max. Conveying Distance | 200m |
| Max Aggregate Size | 15mm |
| Hose Inner Diameter | 20 mm |
| Air Consumption | 8-10 m³/min |
| Brand Name | BE-Focus |
| Motor Power | 7.5 kW |
| Weight | 600 kg |
| Rated Voltage | 380V |
| Dimensions (L*W*H) | 1520 * 900 * 1200 mm |
| Water-Cement Ratio | 0.4-0.45 |
| Operating Air Pressure | 0.2~0.4 MPa |
| Type | Dry Mix Shotcrete Machine |
| Selling Units | Single item |
Key Features
- High-efficiency performance for quick jobs.
- Long distance conveying up to 200 meters.
- Handles aggregate sizes up to 15 mm.
- Robust design with a weight of 600 kg.
- Powerful motor with 7.5 kW for reliable operation.
Applications
- Ideal for construction works such as tunnels and underground projects.
- Used in shotcrete applications for rock stabilization.
- Perfect for spraying dry-mix concrete in large areas.
- Suitable for repairs and renovations in various structures.
- Effective in creating durable surfaces in construction sites.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 04 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum conveying distance of this shotcrete machine?
The machine supports a maximum conveying distance of up to 200 meters under recommended operating conditions.
2. What aggregate size can the machine handle?
It can handle aggregates up to 15 mm maximum particle size.
3. What type of shotcrete system is this—wet-mix or dry-mix?
This is a dry-mix shotcrete (gunite) machine; dry powder is conveyed to the nozzle and water is added at the nozzle for spraying.
4. What water-cement ratio should be used with this machine?
The recommended water-cement ratio range is 0.40–0.45, adjusted at the nozzle for optimal spray and set characteristics.
5. What are the electrical and motor requirements?
The machine is driven by a 7.5 kW motor and rated for 380 V supply (three-phase). Ensure your site electrical system meets this requirement.
6. What air supply is required to operate the machine?
Operating air pressure should be between 0.2 and 0.4 MPa, with air consumption of approximately 8–10 m³/min. Use an appropriate compressor that can maintain these parameters.
7. What is the hose size used with the machine?
The recommended hose inner diameter is 20 mm. Use hoses rated for shotcrete service and compatible with the conveying distance and pressure.
8. How heavy is the machine and how portable is it?
The machine weighs about 600 kg. It is robust and generally moved using a forklift, crane or trailer—plan lifting equipment and transportation accordingly.
9. What typical applications is this machine best suited for?
It is ideal for tunnel and underground construction, rock stabilization, large-area shotcrete spraying, structural repairs and renovation works.
10. What routine maintenance is required?
Perform regular cleaning of the material hopper, feed mechanisms and hoses after each use, check wear parts (nozzle, hose, valves), lubricate moving parts as specified and inspect the electrical and pneumatic systems before operation.
11. What common troubleshooting steps should I follow for blockages or poor spray performance?
Check for clogged hose or nozzle, verify correct aggregate grading and dryness, ensure proper water feed at the nozzle and correct air pressure/flow, and inspect the feeder and rotor for wear or foreign objects.
12. Are compressors, hoses and nozzles included or sold separately?
Standard inclusions vary by seller—compressors, hoses and nozzles are often sold separately as accessories. Confirm the supply package with the vendor or distributor.
13. What safety precautions should operators take?
Operators should wear appropriate PPE (respirator, eye/face protection, hearing protection, gloves and protective clothing), ensure adequate ventilation in confined spaces, and follow machine lockout/tagout and training procedures.
14. What are the machine dimensions and footprint for planning on-site placement?
The machine dimensions are 1520 mm (L) × 900 mm (W) × 1200 mm (H). Allow extra space around the unit for operation, maintenance and hose routing.
15. What warranty and spare parts support is available?
Warranty terms and spare parts availability are provided by the seller or manufacturer (BE-Focus). Contact your supplier or BE-Focus representative for warranty details, spare-part lists and service support.
