The machine requires a voltage of 380V.
The weight of the machine is 7200 KG.
The dimensions of the machine are 20 m (length) x 1.8 m (width) x 2 m (height).
The power consumption of the HEXING machine is 100 kW.
The extruding capacity is approximately 80-120 kg/hr.

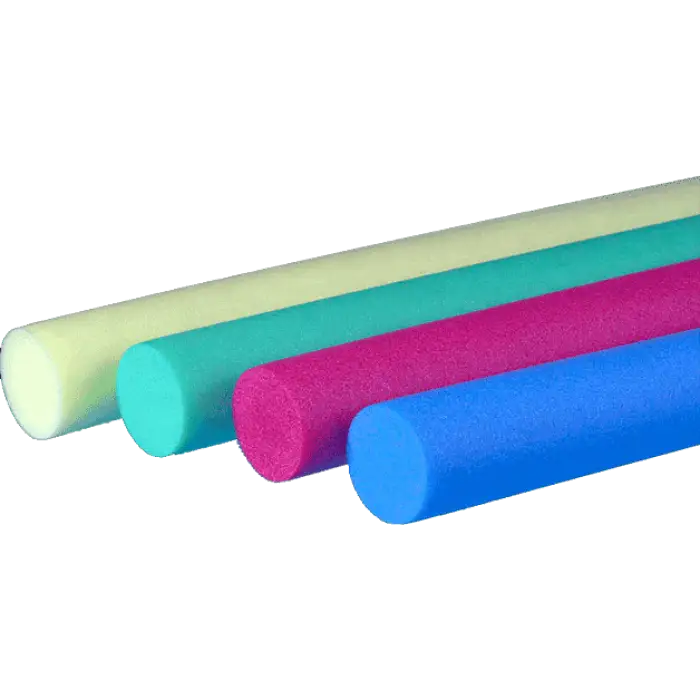

The foam pipe diameter range is from 40 mm to 100 mm.
The manufacturing line speed is adjustable between 10 to 40 m/min.
The foam rate of the machine is between 20 to 48.
The main motor has a power rating of 45 kW.
The machine requires compressed air of 0.2~0.4 m³/min at a pressure of 0.6 MPa.
Yes, the HEXING machine features automatic operation for efficient production.
Yes, a comprehensive machinery test report is provided with the machine.
Yes, video outgoing inspection is available for the machine.
Yes, the machine comes with customizable color options.
The machine utilizes a water cooling method for enhanced performance.
