Grade A Cell 48 volt 51.2v Lithium Battery 5kw 10kw 15kwh 20 kwh 30kwh Wheeled Home Energy Storage Battery
Grade A Cell 48 volt 51.2v Lithium Battery 5kw 10kw 15kwh 20 kwh 30kwh Wheeled Home Energy Storage Battery
Grade A Cell 48 volt 51.2v Lithium Battery 5kw 10kw 15kwh 20 kwh 30kwh Wheeled Home Energy Storage Battery
Grade A Cell 48 volt 51.2v Lithium Battery 5kw 10kw 15kwh 20 kwh 30kwh Wheeled Home Energy Storage Battery

0 Customer Reviews

Add To Wishlist Share to Social

Products Description

Model

5kWh

(100Ah)

10kWh

( 200Ah)

15kWh

( 300Ah)

15kWh+5kw Inverter

( 300Ah)

Nominal Voltage48V
(15S)

51.2V

(16S)

48V
(15S)

51.2V

(16S)

48V
(15S)		51.2V
(16S)		48V
(15S)		51.2V
(16S)
Energy4800Wh5120Wh9600Wh10210Wh14400Wh15360Wh14400Wh15360Wh
Capacity[email protected][email protected][email protected][email protected]
Internal Resistance100≀mΞ©30≀mΞ©100≀mΞ©30≀mΞ©20≀mΞ©20≀mΞ©20≀mΞ©20≀mΞ©
Cycle Life

>3500 Cycles @ 0.2C Charging/Discharging at100%DOD,Until 70% Capacity;

>6000 Cycles @ 0.2C/25℃ Charging/Discharging at 50%DOD,Until70% Capacity.

APP Control--Support
Bulit in Inverter-YesYes
ModesWall-mounted ESS1. Wall-mounted ESS; 2. Mobile ESS;
3. Wall-mounted ESS + APP; 4. Mobile ESS + APP
Charging Voltage53.2-54V56.8-57.6V53.2-54V56.8-57.6V53.2-54V56.8-57.6V53.2-54V56.8-57.6V
Charging Mode(CC/CV)

48V: At 0℃~45℃, charged to 54.75V at a constant current of 0.2C5A, and then changed continuously with constant voltage of 54.75V until the current was not more than 0.02C5A.

51.2V: At 0℃~45℃ temperature, charged to57.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 57.6V until the current was not more than 0.02C.

Charging Current20A
Max.Charging Current100A
Discharging Current20A
Max. Continuous Current100A
Max.Pulse Current150A(<30SοΌ‰
Discharging Cut-off Voltage(V)40.5~42V43.2~44.8V40.5~42V43.2~44.8V40.5~42.V43.2~44.8V40.5~42V43.2~44.8V
Charge Temperature0℃ to 45℃(32℉ to 113℉) @60Β±25% Relative Humidity
Discharge Temperature-20℃ to 60℃(-4℉ to 140℉) @60Β±25% Relative Humidity
Storage Temperature0℃ to 45℃(32℉ to 113℉) @60Β±25% Relative Humidity
Water Dust ResistanceIP22
Cell & FormatIFR N100,15S1P(48V); IFR N100,16S1P(51.2V)
CasingSPCC
Dimension(L*W*H)(Unit: mm)540*380*220540*380*250660*400*235700*420*235880*520*300800(905)*520*3001050*510*2901050*510*290
Weight55kg59kg88kg107kg136kg140kg145kg149kg
Terminal120A Quick insertion and removal of self-locking plugs

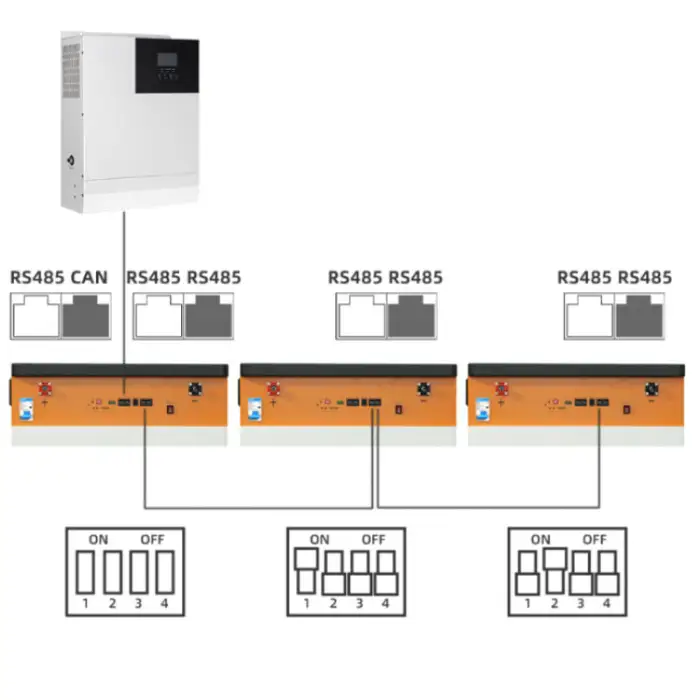

CommunicationRS485/CAN/RS232
Support InverterDeye, Voltronic Power, Growatt, GOODWE, Victron energy, SRNE
