Fully Automatic Radial Insertion Machine for Electronic Manufacturing DIP Assembly Line Through-hole Component Placement

0 Customer Reviews

Add To Wishlist Share to Social

Section : Machinery
Category : Industrial Machinery
SKU : 1601417226005

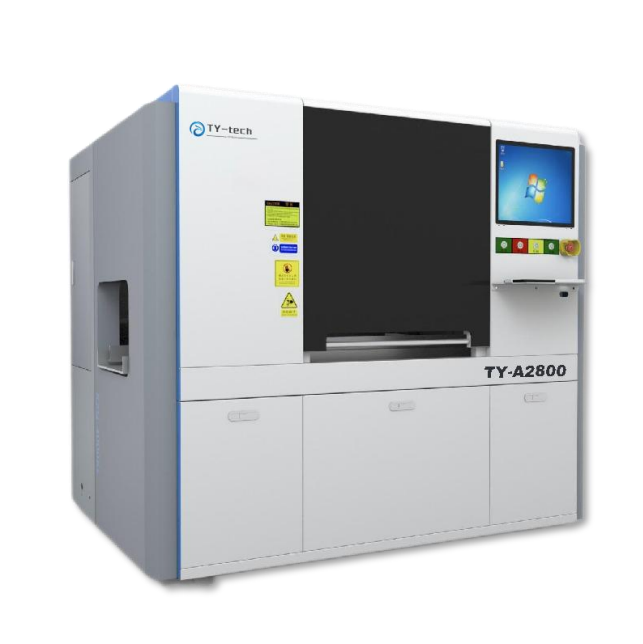

Fully Automatic Radial Insertion Machine for Electronic Manufacturing DIP Assembly Line Through-hole Component Placement

The Fully Automatic Radial Insertion Machine is designed for electronic manufacturing. It helps place through-hole components quickly and accurately. This machine is perfect for assembly lines that need to work with electronic components efficiently. With its high speed and adjustable features, it is the ideal choice for your production needs.

Specifications

Attribute	Details
Component Pin Diameter	0.4~0.6mm
Component Lead Angle	10-35 degrees (adjustable)
Cycle Rate Speed	28000 PCS/H
Feeder Capacity	10/20 Feeder Stations (Optional)
Insert Direction	0~360 degrees
Lead Span	Double space 5.5~20mm
Proforming Rate	300 PPM
PBC Size	Min 50MM x 50MM, Max 450MM x 450MM
PBC Thickness	0.79-2.36MM
Power	220V, AC Single Phase 50/60HZ
Weight	1500.000 kg
Package Size	130 x 170 x 160 cm
Warranty	1 Year

Key Features

High-speed component placement at 28000 PCS/H.
Adjustable lead angles for various components.
Flexible feeder capacity with options for 10 or 20 stations.
360-degree insert direction for optimal placement.
Comprehensive support with free replacement parts and online assistance.
Robust 1-year warranty for added peace of mind.

Applications

Ideal for electronic manufacturing assembly lines.
Perfect for placing through-hole components in PCBs.
Useful in high-volume production environments.
Great for companies looking to enhance efficiency in component placement.
Suitable for various electronic devices requiring precise assembly.
