Forming Expanded Metal Machine Tube Swaging Machine
- Section : Machinery
- Category : Machine Tool Equipment
- SKU : 60774381194

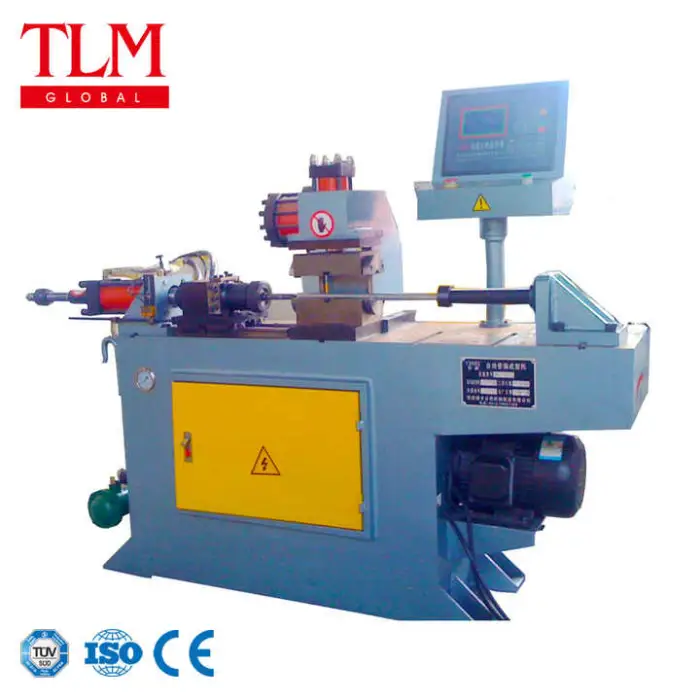

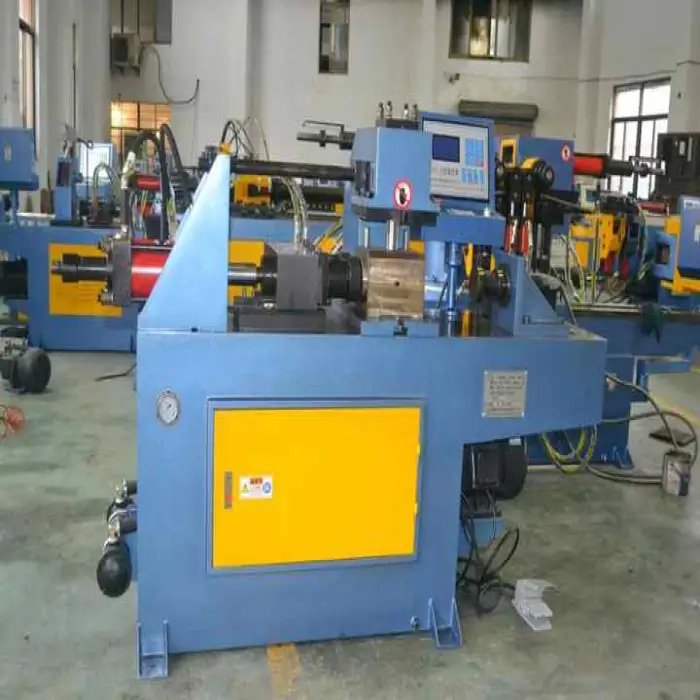

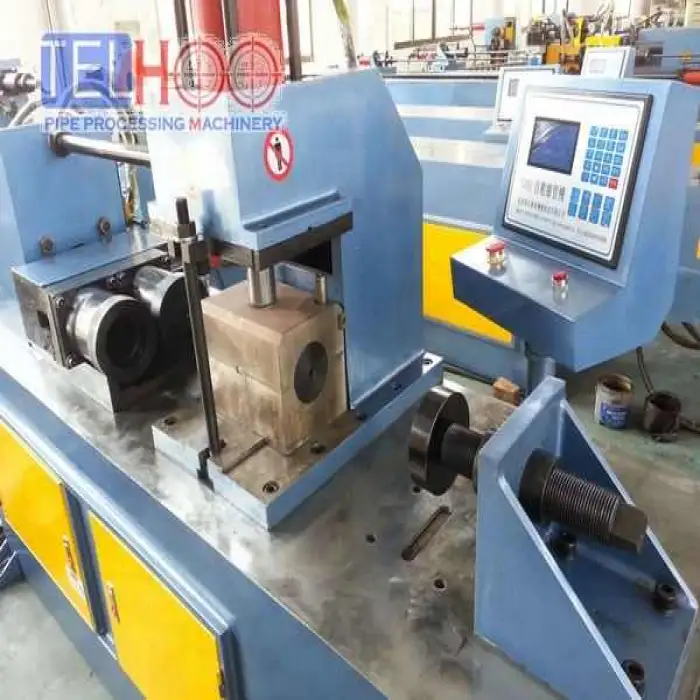

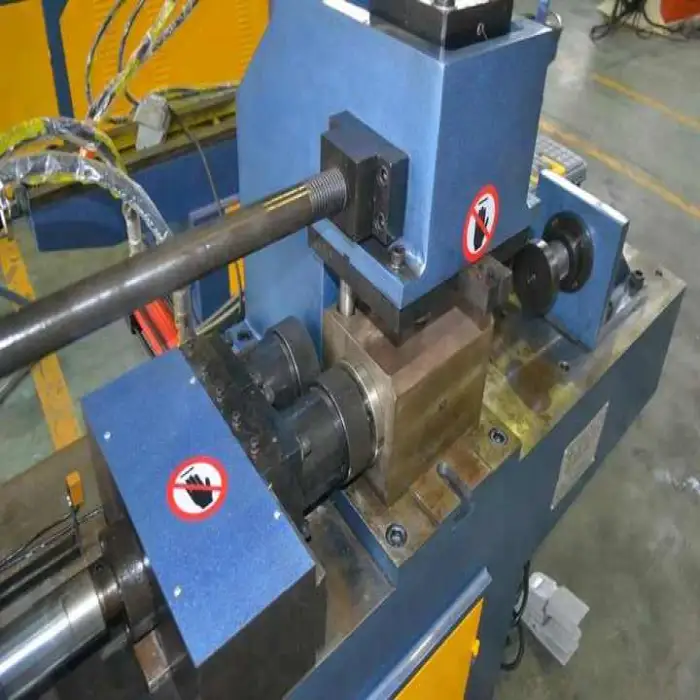

Forming Expanded Metal Machine Tube Swaging Machine
The Forming Expanded Metal Machine Tube Swaging Machine is a powerful tool designed for various metal processing needs. It is efficient and reliable, making it ideal for many industries. This machine helps in shaping and forming metal pipes, providing excellent results with every use. Whether you are working with furniture or automotive applications, this machine handles different materials with ease.
Specifications
| Attribute | Details |
|---|---|
| Model | SG60-B |
| Power | 2.2 kW |
| Weight | 500 kg |
| Max. Shrinking Capacity (Diameter) | 100 mm |
| Max. Shrinking Capacity (Thickness) | 3.5 mm |
| Tube Contracting Cycle | 3 - 5 seconds |
| Control | Hydraulic |
| Color | Blue or Customized |
| Certification | CE |
| Service Provided | Engineers available for overseas support, Online support, Video technical support |
Key Features
- Multifunctional design for various metal types.
- Automatic operation for efficient processing.
- Durable hydraulic system for heavy-duty use.
- Compact design with a weight of only 500 kg.
- Fast tube contracting cycle of 3 - 5 seconds.
Applications
- Used in furniture manufacturing.
- Ideal for automotive parts production.
- Suitable for various metal pipe processing.
- Applicable for bar forming tasks.
- Great for custom metalworking projects.
The Forming Expanded Metal Machine Tube Swaging Machine is designed to meet your metal processing needs. With its advanced features and capabilities, it ensures quality results for all applications.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the Forming Expanded Metal Machine Tube Swaging Machine and what does it do?
The machine is a hydraulic tube swaging and forming unit designed to reshape and contract metal tubes and bars. It performs operations such as shrinking/contracting tube ends, shaping pipe profiles and forming expanded metal components for applications like furniture, automotive parts and custom metalwork.
2. What are the main specifications of this model (SG60-B)?
Model: SG60-B; Power: 2.2 kW; Weight: 500 kg; Max. shrinking diameter: 100 mm; Max. shrinking thickness: 3.5 mm; Tube contracting cycle: 3–5 seconds; Control: Hydraulic; Color: Blue or customized; Certification: CE.
3. Which materials can the machine process?
It is built to handle a variety of common metal tubes and bars typically used in furniture and automotive work, such as mild steel, stainless steel and aluminum. Compatibility depends on tube diameter, wall thickness (max 3.5 mm) and material properties — for unusual alloys or limits near the machine's ratings, we recommend testing or consulting the supplier.
4. What throughput can I expect?
The tube contracting cycle is 3–5 seconds, which corresponds to a theoretical throughput of roughly 12–20 pieces per minute (≈720–1,200 per hour). Actual throughput will vary with loading/unloading time, operator skill, part handling and any secondary operations.
5. Is the machine fully automatic or manual?
The SG60-B offers automatic operation with hydraulic control for the swaging/forming actions. An operator is typically required for loading, unloading and monitoring, though automation level can depend on integration into downstream/upstream equipment.
6. What electrical supply or power requirements are needed?
The machine has a 2.2 kW motor. Specific voltage and frequency options (e.g., 220 V, 380 V, 415 V, 50/60 Hz) are not listed in the basic spec — please confirm required supply and phase with the supplier when ordering so they can configure the machine for your local power system.
7. What safety features and certifications does it have?
The machine is CE certified. It uses a durable hydraulic system and is designed with operator safety in mind. Standard safety elements include guarded working areas and emergency stop controls; exact feature set should be confirmed with the vendor and supplemented with local machine-safety measures and operator training.
8. Do you provide installation, commissioning and on-site support?
Yes. The product listing indicates engineers are available for overseas support. The supplier also offers online and video technical support. For on-site installation and commissioning, confirm availability, costs and lead times with sales when ordering.
9. Is customization available (colors, tooling, specs)?
Yes. The standard color is blue but customized colors and likely tooling/configuration options are offered. For custom capacities, tooling or integration needs, contact the supplier to discuss options, lead time and pricing.
10. What maintenance does the machine require?
Routine maintenance typically includes checking and topping hydraulic oil, inspecting seals and hoses, greasing moving parts, checking fasteners and cleaning forming surfaces. Follow the manufacturer's maintenance manual for service intervals and approved consumables. If you need a maintenance plan, request documentation from the supplier.
11. Are spare parts available and how is after-sales service handled?
The supplier provides technical support (online/video) and access to engineers for overseas support. Spare parts availability should be confirmed at purchase — ask for a spare-parts list, lead times and recommended spare inventory to minimize downtime.
12. Can this machine be integrated into an existing production line or automated cell?
Yes. The SG60-B can be integrated into production lines, but integration details (communication, conveyors, feeders, guarding) depend on your line layout and automation requirements. Discuss integration engineering with the supplier so they can provide required interfaces or customization.
13. What are the machine's physical footprint and installation space requirements?
The machine is described as compact and weighs 500 kg, but exact dimensions are not provided in the basic spec. Request detailed dimensional drawings and recommended clearances from the vendor to plan floor space, foundation and material handling.
14. What warranty and payment/shipping terms apply?
Warranty, payment terms and shipping details are not specified in the product summary. Contact the supplier or sales representative to obtain warranty coverage, lead times, shipping options, incoterms and accepted payment methods.
15. How do I request a quote, samples or a demonstration?
To get a quote, sample processing or demonstration, contact the supplier with your part drawings or sample tubes (diameter, wall thickness, material), desired throughput, voltage supply and shipping destination. The supplier can then advise tooling requirements, provide pricing and arrange testing or an on-site/remote demo.
