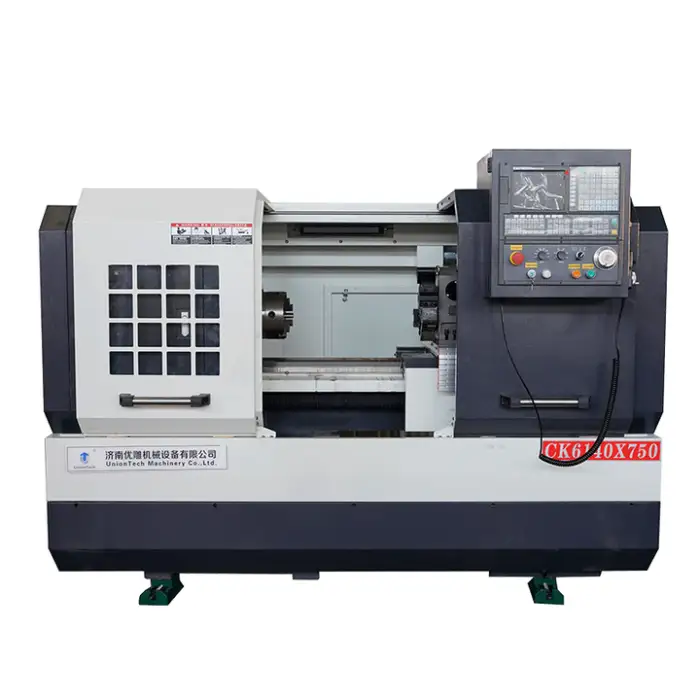

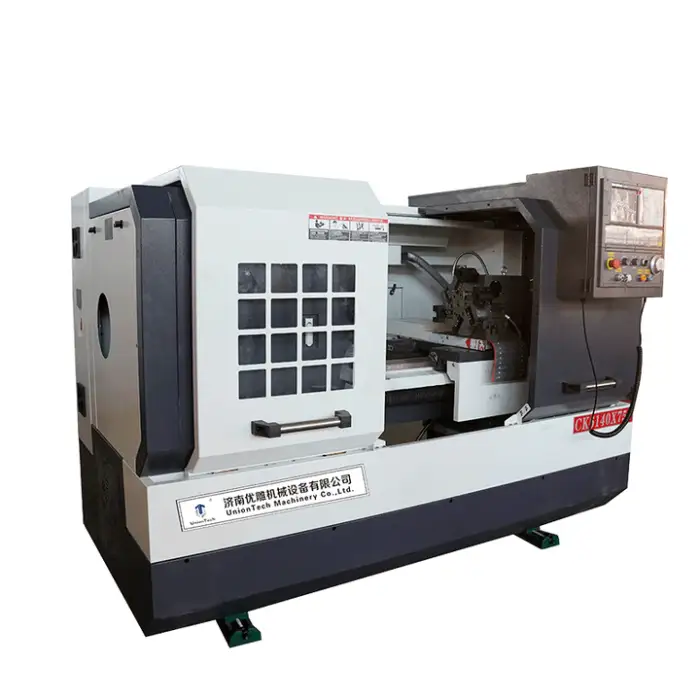

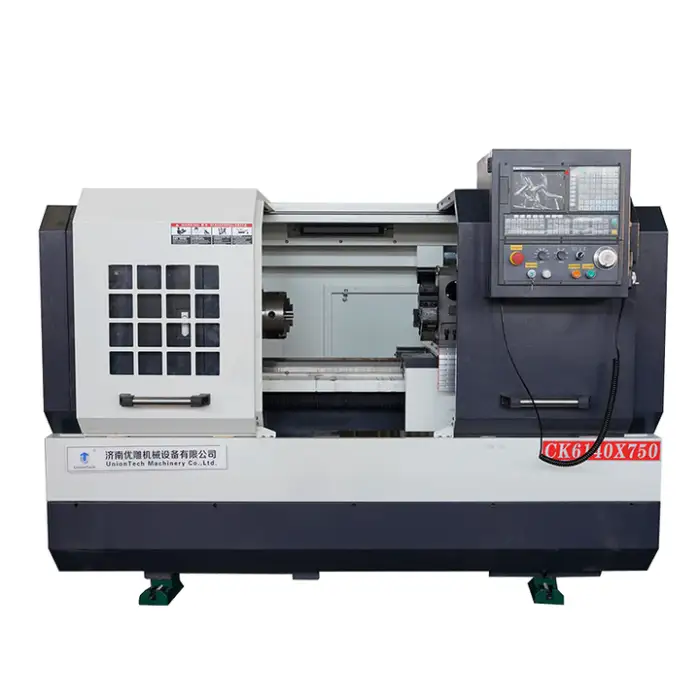

The CK6136 CK6140 CNC Lathe can handle a maximum workpiece length of 750 mm.
The maximum weight capacity of the CK6140 CNC Lathe is 200 kg.
The CK6140 CNC Lathe has 2 axes.
The spindle speed range for the CK6136 CK6140 CNC Lathe is from 50 to 2000 RPM.
The positioning accuracy of the CK6140 CNC Lathe is ±0.008 mm.
The weight of the CK6140 CNC Lathe is 1800 kg.
The CK6140 CNC Lathe uses the GSK CNC control system.
The travel distance on the X axis is 240 mm and on the Z axis is 750 mm.
The spindle motor power for the CK6140 CNC Lathe is 5.5 kW.

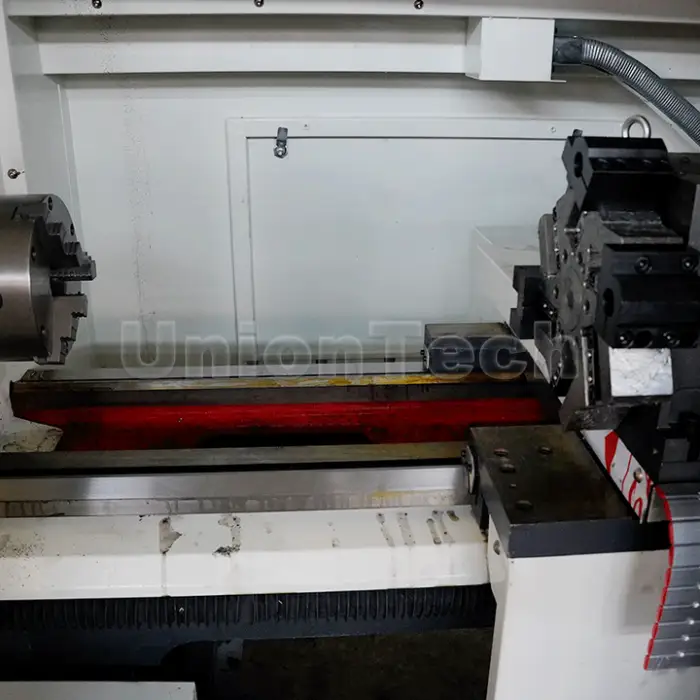

The CK6140 CNC Lathe has 8 tool post stations.
The dimensions of the CK6140 CNC Lathe are 2500 mm x 1500 mm x 1650 mm.
The CK6140 CNC Lathe requires a voltage of 220V/380V at 50Hz.
Yes, a machinery test report is provided with the CK6140 CNC Lathe.
The CK6140 CNC Lathe features a 4-position turret.
The cutting torque of the CK6140 CNC Lathe is 10.
