Flame Cutting Gantry Type Cnc Gas Cutting Machine
- Section : Machinery
- Category : Machine Tool Equipment
- SKU : 1600311464795

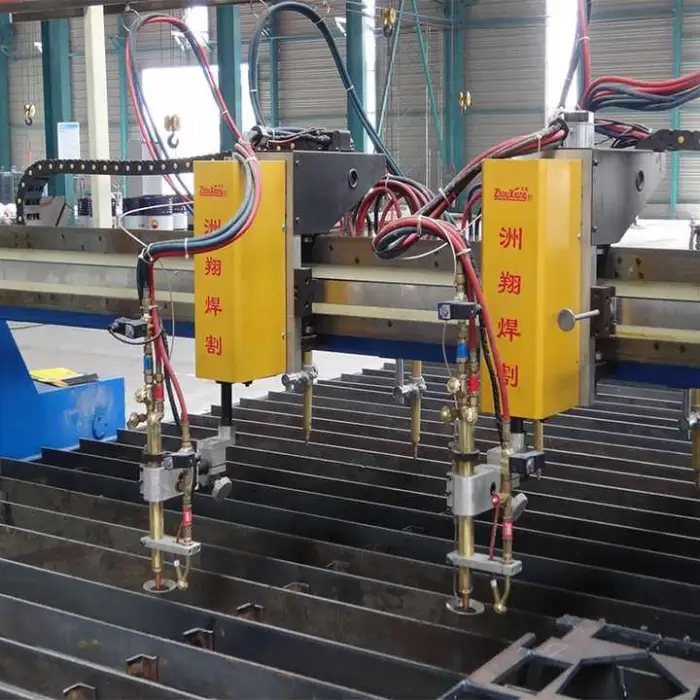

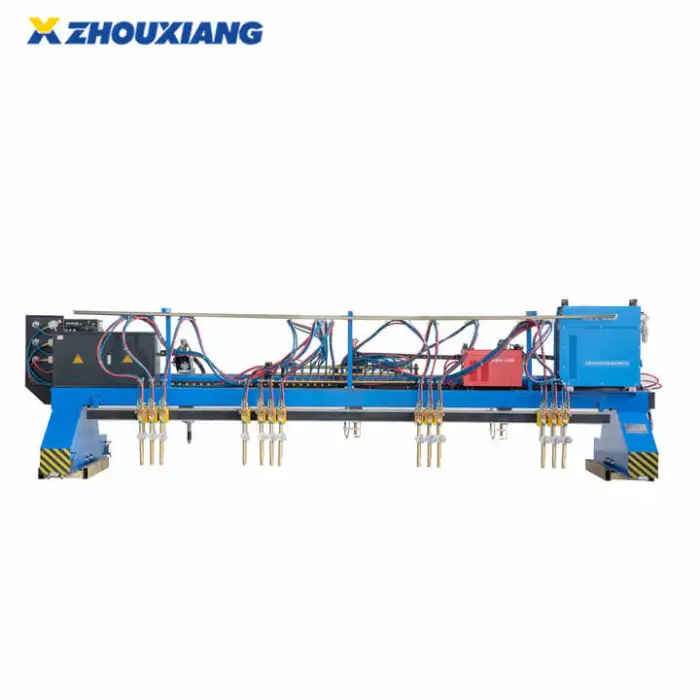

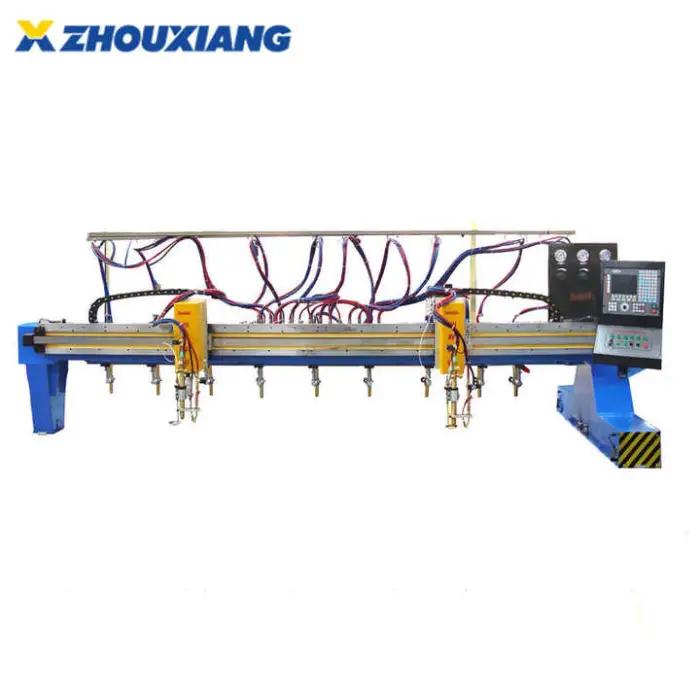

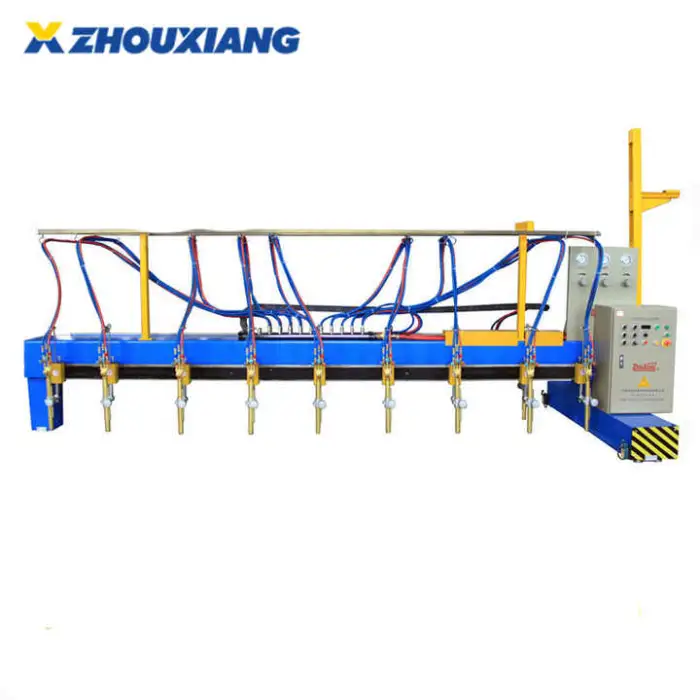

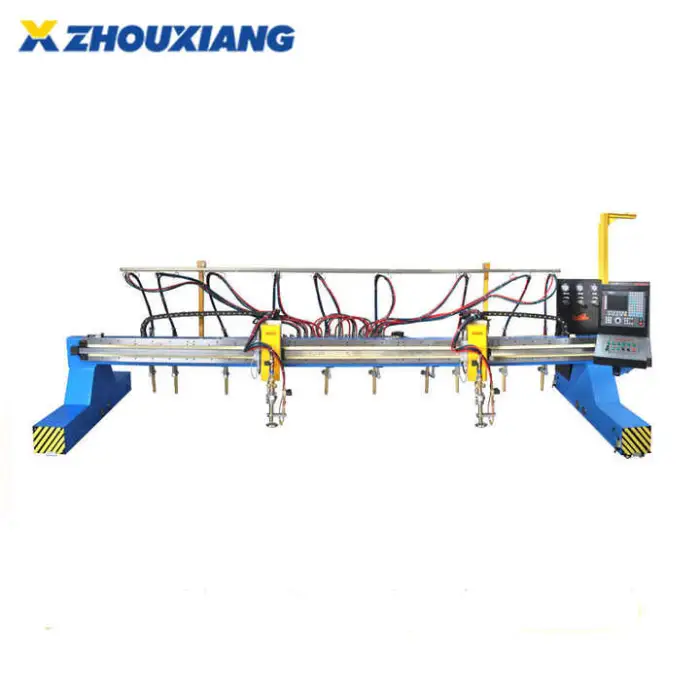

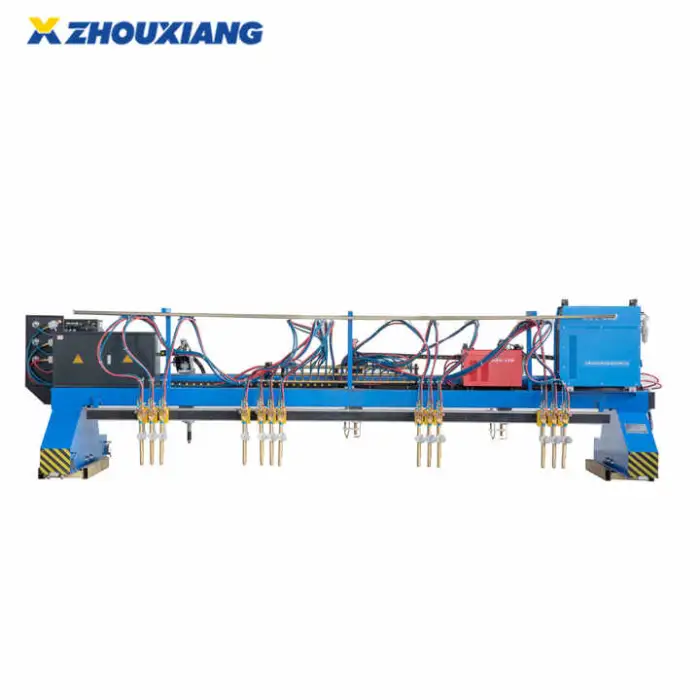

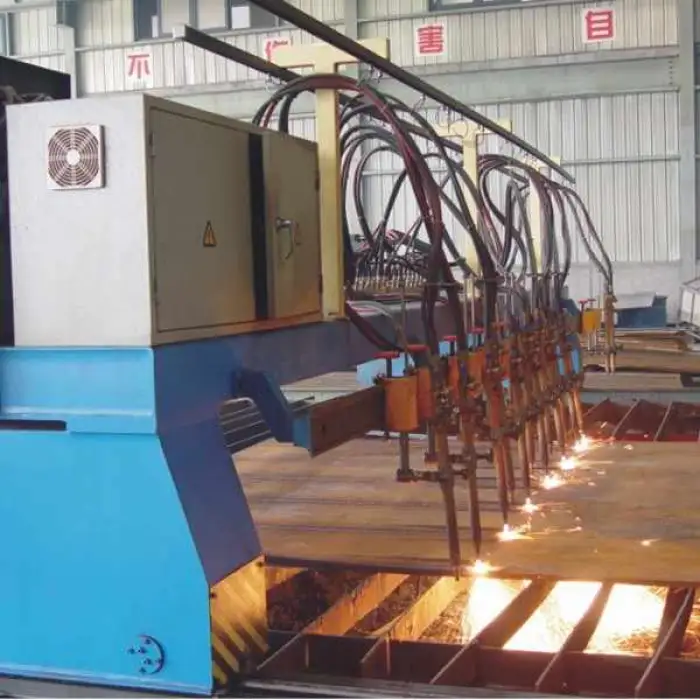

Flame Cutting Gantry Type CNC Gas Cutting Machine
The Flame Cutting Gantry Type CNC Gas Cutting Machine is a powerful tool designed for precision cutting of thick materials. It combines high productivity with advanced technology to deliver excellent performance. Whether you need to cut metal for construction or manufacturing, this machine can handle it all efficiently.
Specifications
| Attribute | Details |
|---|---|
| Cutting Thickness (mm) | 6 - 100 |
| Cutting Speed (mm/min) | 50 - 1000 |
| Cutting Precision (mm) | 0.5 |
| Core Components | PLC |
| Weight (kg) | 4000 |
| Voltage | 380V |
| Video Outgoing Inspection | Provided |
| Machinery Test Report | Provided |
| Machine Type | Straight Type Cutting Machine |
| Rated Power | 70 |
| Effective Cutting Width (mm) | 230 - 3200 |
| Rail Length (mm) | 15,000 (valid cutting length 12,500) |
| Free Running Speed (mm/min) | 5000 |
| Cutting Gas | Oxygen, Propane, or Acetylene |
Key Features
- High productivity for large-scale cutting tasks.
- Wide cutting thickness range from 6 to 100 mm.
- Fast cutting speeds up to 1000 mm/min.
- Accurate cutting precision of 0.5 mm.
- Heavy-duty design, weighing 4000 kg for stability.
- Compatible with various cutting gases.
Applications
- Metal fabrication and construction projects.
- Manufacturing of H-beams and structural components.
- Repair and maintenance of heavy equipment.
- Industrial cutting for various metal materials.
- Custom metalwork for specialized applications.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What materials can the Flame Cutting Gantry Type CNC Gas Cutting Machine cut?
Primarily ferrous metals such as carbon steel and structural steel. The machine handles plate thicknesses from 6 mm to 100 mm. For stainless steel, aluminum or non‑ferrous metals, consult the supplier—alternative processes (plasma/laser) may be preferable.
2. What is the cutting thickness range and cutting precision?
Cutting thickness range: 6–100 mm. Stated cutting precision: 0.5 mm. Actual precision depends on material, plate preparation, torch setup and cutting parameters.
3. What cutting speeds does the machine support?
Operational cutting speed range: 50–1000 mm/min depending on material and thickness. Free running speed (rapid traverse) is up to 5000 mm/min.
4. Which cutting gases are compatible with this machine?
Compatible with oxygen combined with propane or acetylene for oxy-fuel cutting. Proper gas regulators, hoses, pressure settings, and flashback arrestors/backflow preventers are required.
5. What are the electrical and power requirements?
Standard voltage: 380 V. Rated power is listed as 70 (unit not specified in the datasheet)—please confirm the exact power rating/unit (kW) with the supplier or in the technical documentation.
6. What are the machine size, rail length and effective cutting width?
Total rail length: 15,000 mm with valid cutting length of 12,500 mm. Effective cutting width range: 230–3200 mm. Machine weight: approximately 4000 kg. Verify site space and handling arrangements before delivery.
7. What type of control system does the machine use?
The core control component is a PLC-based CNC system. It supports automated gantry motion and torch control. For supported program/file formats and software features (nesting, CAD/CAM integration), confirm specifics with the manufacturer.
8. Are inspection and test reports provided?
Yes. The product listing indicates a video outgoing inspection and a machinery test report are provided prior to shipment.
9. What routine maintenance is required?
Regular tasks include: keeping rails and drive components clean and lubricated, inspecting and replacing torch tips/nozzles, checking gas hoses/regulators for leaks, verifying alignment and calibration, and backing up PLC parameters/software.
10. What safety equipment and precautions are recommended?
Use appropriate PPE (welding goggles/face shield, flame‑resistant clothing, gloves). Ensure proper ventilation or fume extraction, have fire extinguishers nearby, install flashback arrestors and check gas connections regularly. Follow local regulations for oxy-fuel operations.
11. What consumables and spare parts should I stock?
Common consumables include cutting nozzles/tips, electrodes (if applicable), hoses, filters, flashback arrestors, torch valves and O‑rings. Carry critical spares for the PLC I/O, drive motors, and gear components as recommended by the supplier.
12. Is onsite installation and commissioning available?
Most suppliers offer onsite installation, alignment and commissioning as an additional service. They can also provide operator training and initial process parameter setup—confirm availability and fees with the vendor.
13. Can the machine be customized or equipped with optional features?
Yes—common options include automatic torch height control (THC), specialized cutting tables, edge-finding/nesting software, additional torch heads for multi-gas setups, and customized effective widths. Confirm which options are available for this model.
14. How accurate and repeatable are cuts in production?
Nominal cutting precision is 0.5 mm. Repeatability depends on consistent plate positioning, machine calibration, torch condition and stable gas supply. For critical tolerances, conduct test cuts under production conditions.
15. What should I know about shipping, site preparation and handling?
The machine is heavy (~4000 kg) and long (rails 15,000 mm). Plan for suitable transport (flatbed/trailer), cranes or forklifts for unloading, a level and reinforced floor, appropriate clearances and 380 V power supply. Coordinate with the supplier for packaging and delivery requirements.
