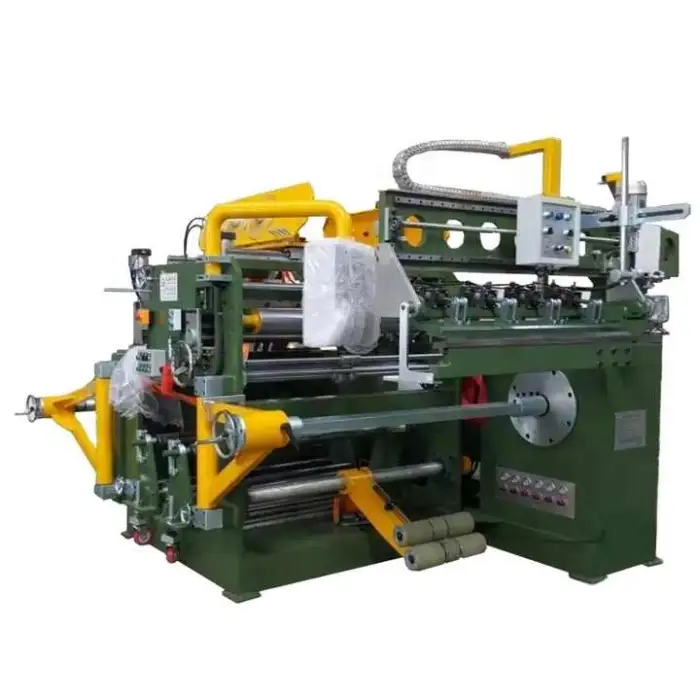

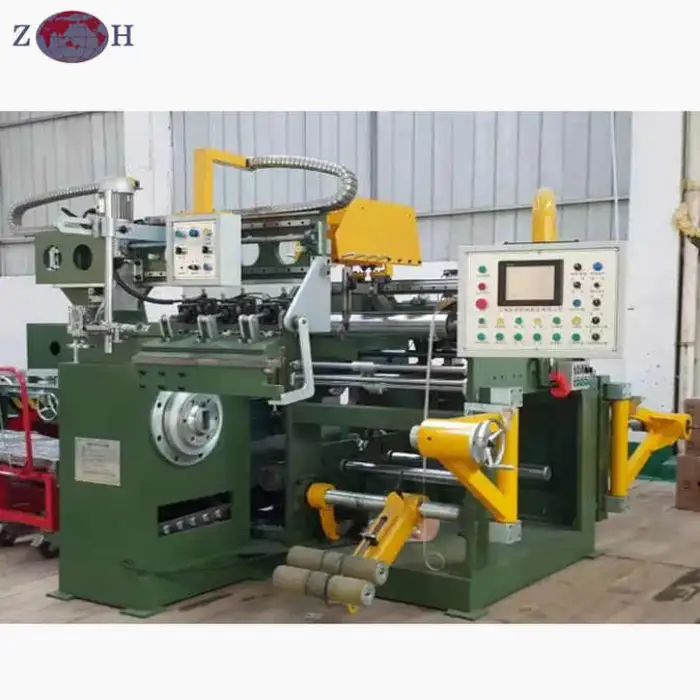

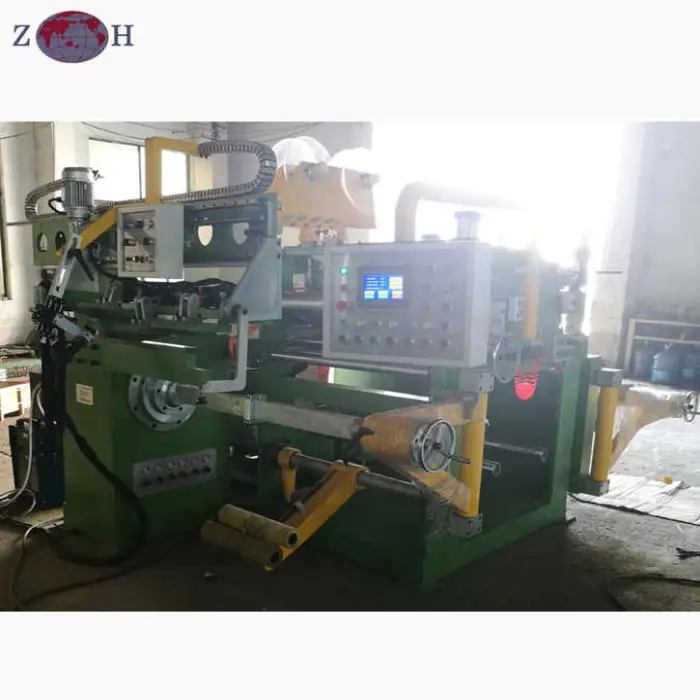

Dry-type Transformer LV Foil Coil Winding Machine

0 Customer Reviews

  • Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
  • Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
  • Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
  • Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum load capacity of the Dry-type Transformer LV Foil Coil Winding Machine?

The maximum load capacity of the machine is 5000 kg.

2. What is the length of the axis in the winding machine?

The length of the axis is 1500 mm.

3. What is the center height of the machine?

The center height of the Dry-type Transformer LV Foil Coil Winding Machine is 1000 mm.

4. What is the motor power of this winding machine?

The motor power of the machine is 15 kW.

5. Is this machine equipped with CNC functionality?

Yes, the Dry-type Transformer LV Foil Coil Winding Machine features CNC functionality for precise operation.

6. What is the weight of the machine?

The weight of the Dry-type Transformer LV Foil Coil Winding Machine is 8800 kg.

7. What types of coils can this machine wind?

The machine is designed to wind foil coils for transformers and supports both double-layer and single-layer foil winding.

8. What is the adjustable winding speed of the machine?

The foil winding speed is adjustable from 0 to 30 RPM.

9. What is the precision of the foil deviation rectifying feature?

The foil deviation rectifying precision is +/- 0.1 mm.

10. Does the machine support automatic welding?

Yes, it is equipped with automatic TIG welding for foil and busbar connections.

11. What is the finished foil coil length range produced by this machine?

The finished foil coil length ranges from 500 to 1400 mm.

12. What are the outer and inner diameters of the finished foil coil?

The outer diameter of the finished foil coil is 700 mm, and the inner diameter is 130 mm.

13. What core components are used in the machine?

The machine is equipped with a Mitsubishi PLC, servo motor, and inverter.

14. Can the machine be used for research and development purposes?

Yes, it is suitable for research and development in electrical engineering, as well as for manufacturing dry-type transformers.

15. Is a machinery test report provided with the machine?

Yes, a machinery test report is provided with the Dry-type Transformer LV Foil Coil Winding Machine.
