The maximum table load capacity is 3000 kg.
The table size of the machine is 6300 mm x 5000 mm.
The machine uses a BT50 spindle taper.
The positioning accuracy is 0.05 mm.
The spindle speed ranges from 1 to 4500 r.p.m.
The minimum time for tool changes is 6 seconds.
The machine is equipped with a Siemens CNC control system.
The machine weighs 58 tons.
This machine is suitable for aerospace, automotive, heavy machinery fabrication, custom tooling, and precision engineering projects.
The repeatability accuracy is 0.03 mm in the X, Y, and Z axes.
The rapid feed speed can reach up to 4500 mm/min.
The tool magazine can hold up to 40 tools.
Yes, it is designed for heavy-duty machining and can handle tough materials.
The dimensions are 9700 mm x 8300 mm x 3400 mm.

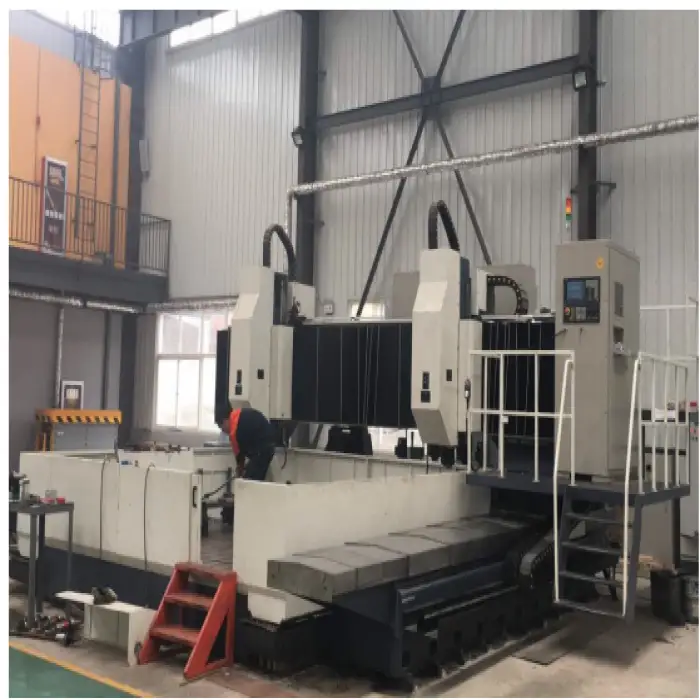

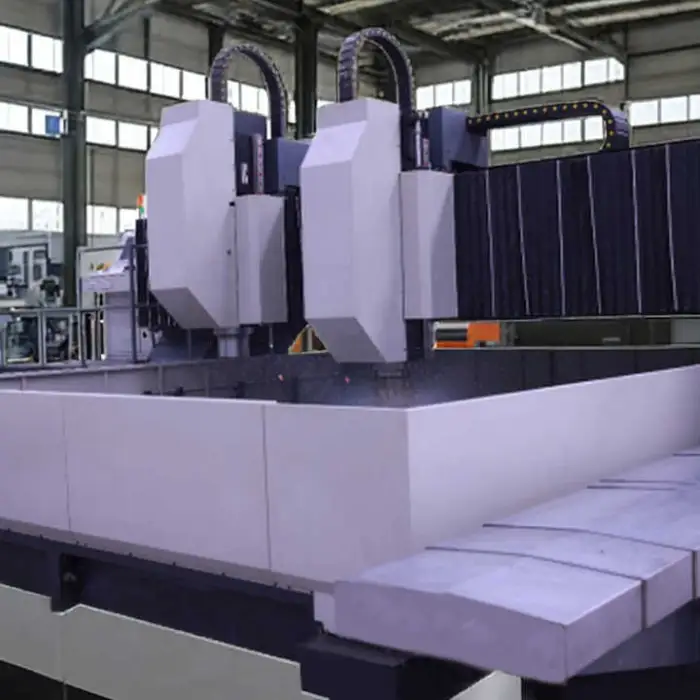

The CNC Gantry Drilling and Milling Machine is manufactured by DaHui Machine Tool Co., Ltd.
