CNC Electrical Hydraulic Press Brake
- Section : Machinery
- Category : Industrial Machinery
- SKU : 1600694692090

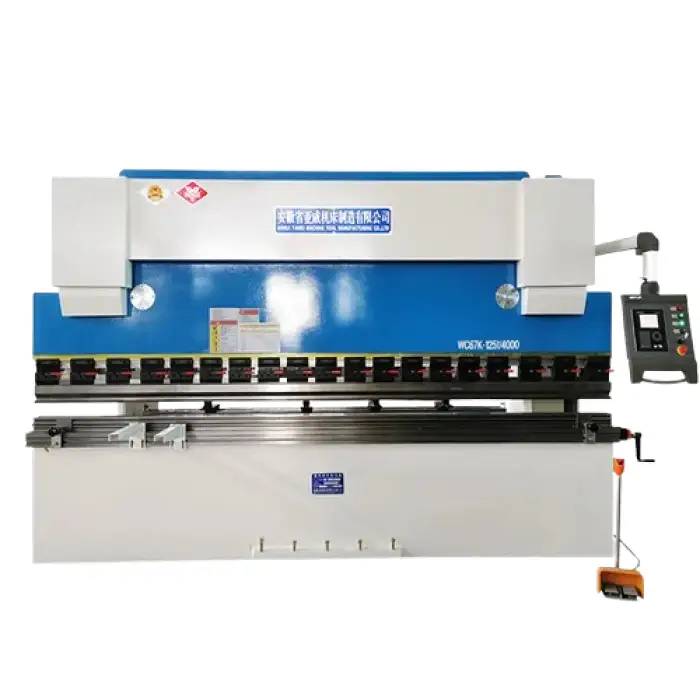

CNC Electrical Hydraulic Press Brake
The machine is made under technology from Europe. Full steel structure, stress released through vibration by adopting Germany technology. Main frame is designed and Finite Element Analyzed under ANSYS/UG software. Advanced technology with high quality, ensure efficient production and less maintenance. Accurate and effective synchronized balancing system ensure high precision. Adopted worldwide famous electrical parts, oil pump, and seals got a reliable hydraulic system. Ram stroke is adjustable and control by CNC. Bending angle controlled by CNC get accurate precision. Shift point for approach and working speed is adjustable to improve the efficiency of productivity. Simple and compact electrical system is convenience for maintenance. Relief valve protect the oil pump and hydraulic system when over-loading. Manual adjustable pressure gauge for accurate bending force
Key Features:
Energy saving rate over 50%. Take 110 ton press brake as example, customer can save energy cost.
With strong over-load capacity of servo motor, machine can get faster bending & returning speed with the same pump and valves.
Adopt no overflow technology, which can achieve better oil temperature control.
Domestic servo motor, customer can recover the cost in 1-2 years.
Standard Configuration:
Moveable front supporting arm with height adjustable.
High quality top punch and bottom die by heat treatment for long life.
Adjustable top punch clamping system.
Two back gauge fingers with micro adjustment.
Crowning compensation system ensure the sheet bending accuracy.
DELEM DA-53T CNC Control:
"Hot-key” touch navigation
10.1" high resolution colour TFT
Up to 4 axes (Y1,Y2 + 2 aux. axes)
Crowning control
Tool / material / product library
USB, Peripheral interfacing
Servo and frequency inverter control
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
Tool library 30 punches / 60 dies.
Specifications
| Attribute | Details |
|---|---|
| Model | YWS 125T/3200 |
| Pressing Force | 1250KN |
| Bending width | 3200MM |
| Distance between uprights | 2700MM |
| Throat depth | 400MM |
| Cylinder stroke | 210MM |
| Max. Open Height | 450MM |
| CNC Axes | 4+1 (Y1 Y2 X R W) |
| Bending accuracy | ±0.2 °/ meter |
| Approaching speed | 200MM/S |
| Working speed | 10MM/S |
| Return speed | 150MM/S |
| X Axis distance | 600MM |
| X Axis speed | 400MM/S |
| Oil tank Capacity | 220L |
| Main power | 10.8KW |
| Dimension (L*W*H) | 3300*1650*2520MM |
| Weight | 8800KG |
Accuracy of machine
| Attribute | Details |
|---|---|
| Bending accuracy | ±0.2°/per meter |
| Y axis repeatability | ±0.01mm |
| X axis repeatability | ±0.02mm |
| Workpiece straightness | ±0.2mm/ per meter |
| Maximum hydraulic pressure | 270bar |
Key parts imported from worldwide
| Attribute | Details |
|---|---|
| DA-53T CNC Control | DELEM from Holland |
| Electrical components | SCHNEIDER from France |
| Servo Motor | ESTUN ED3L |
| Servo driver | ESTUN ED3L |
| Main motor | ESTUN PRONET servo motor |
| Hydraulic Valve | Rexroth or HAWE from Germany |
| Servo Valve | Rexroth or HAWE from Germany |
| Oil filter | HYDAC from Germany |
| Hydraulic Seals | NOK from Japan |
| Hydraulic Piping and joints | EMB or PARKER from USA |
| Oil pump | HAWE from Germany |
| Linear scale | GIVI from Italy |
| Ball screw | HIWIN from Taiwan |
| Linear guide way | HIWIN from Taiwan |
| Crowing | Motorized villagetable deflection compensation system |
| Foot Switch with Emergency | KACON from South Korea |
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 06 Mar, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum pressing force of the CNC Electrical Hydraulic Press Brake?
The maximum pressing force is 1250 KN.
2. What is the bending width capacity of this press brake?
The bending width capacity is 3200 MM.
3. How does the CNC control system enhance precision?
The CNC control system allows for precise adjustments in bending angles, ram stroke, and speed, ensuring high accuracy in production.
4. What type of materials can be processed with this machine?
This machine can process a variety of materials, typically metals, suitable for bending applications.
5. What is the energy-saving capability of this machine?
The CNC Electrical Hydraulic Press Brake offers an energy-saving rate of over 50%, making it cost-effective over time.
6. How is the hydraulic system protected from overload?
The hydraulic system is equipped with a relief valve that protects the oil pump and hydraulic system in case of overload.
7. What is the weight of the CNC Electrical Hydraulic Press Brake?
The machine weighs 8800 KG.
8. What features ensure the longevity of the top punch and bottom die?
The top punch and bottom die are made of high-quality materials and are treated with heat for extended life.
9. What is the maximum hydraulic pressure the machine can handle?
The maximum hydraulic pressure is 270 bar.
10. Can the bending angle be controlled manually?
The bending angle is primarily controlled by CNC for precision; however, manual adjustments can be made as necessary.
11. What is the accuracy of the bending process?
The bending accuracy is ±0.2° per meter, ensuring high precision in the bending process.
12. What kind of maintenance does the electrical system require?
The simple and compact electrical system is designed for easy maintenance, requiring periodic checks and maintenance as per operational use.
13. How is the machine's approach and working speed adjustable?
The shift point for approach and working speed can be adjusted to optimize productivity and efficiency.
14. What type of CNC control does the machine use?
The machine uses the DELEM DA-53T CNC Control, which features a touch navigation interface and supports up to 4 axes.
15. Is there a warranty or service available for this machine?
Warranty and service options vary by manufacturer and should be confirmed with the supplier or seller.
