Safe Driving BSD Car Blind Spot Detection System Universal Vehicle Voice Warning Stick On Blind Spot Monitor

Model No.: LR-001

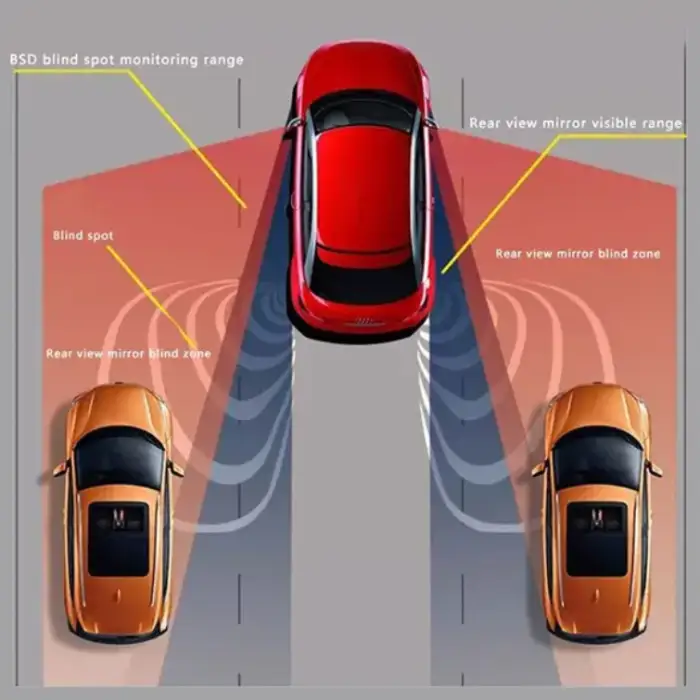

Blind spot detection system uses sensors to detect objects within a close proximity around a vehicle that are not visible to the driver and alerts the driver accordingly to avoid a collision.

A quick look at the inside and outside mirrors, perhaps even a fleeting glance over the left shoulder – and then a major fright. When there is loud hooting from your left as you pull out to overtake. Failing to see the car approaching rapidly from behind in the left-hand lane or in the blind spot next to your own car easily happens, especially in heavy traffic on multi-lane freeways or highways and in urban traffic as well.

The Blind Spot Detection (BSD) system can monitor this area and take much of the strain off the driver and avoid hazardous situations. Sensors monitor the road area behind and next to your own vehicle and warn if you try to pull out despite there being no gap.

There is blind zone at the rear of the vehicle which is easy to endanger driving safety! When you installed BSM into your lovely car, no matter it's day time, night time or even in the snow,you can be alerted whenever there is a moving object pop into the rear of the vehicle, with the aid of LED lighting on , blinking, buzzer sound so that the driver can be cautious when lane changing to avoid the possibility of side crash accident.


The BSD system is activated with the turn signals, whenever there is a moving object pop into the rear of the vehicle, with the aid of LED lighting on, blinking, buzzer sound so that the driver can be cautious when lane changing to avoid the possibility of side crash accident.


Features:

* 5 steps Very Easy install, DIY less than 40mins!* Strong anti-interference capability* Intelligent algorithm,accurately judge whether the target is dangerous* When the system is on, the system would start detecting objects in theblind area behind the vehicle 50meters* When the moving objects is getting closer and the speed is faster than our own cars.

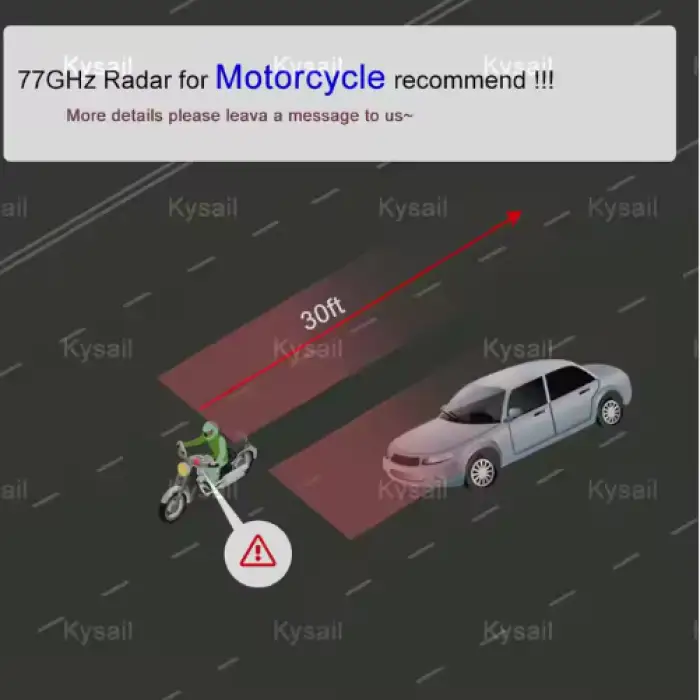

* Application: Car, Sedan,SUV, Motorsycle


Typical scenarios in which BSM issues a warning include:

When a passing car in an adjacent lane approaches
When a vehicle changes lanes and enters the warning zone from the side

BSM systems will not issue a warning in certain situations:

When a vehicle approaches from the opposite direction
When a car approaches from directly behind in the same lane
When passing stationary objects such as stopped vehicles, guard rails, roadway barriers, and light poles

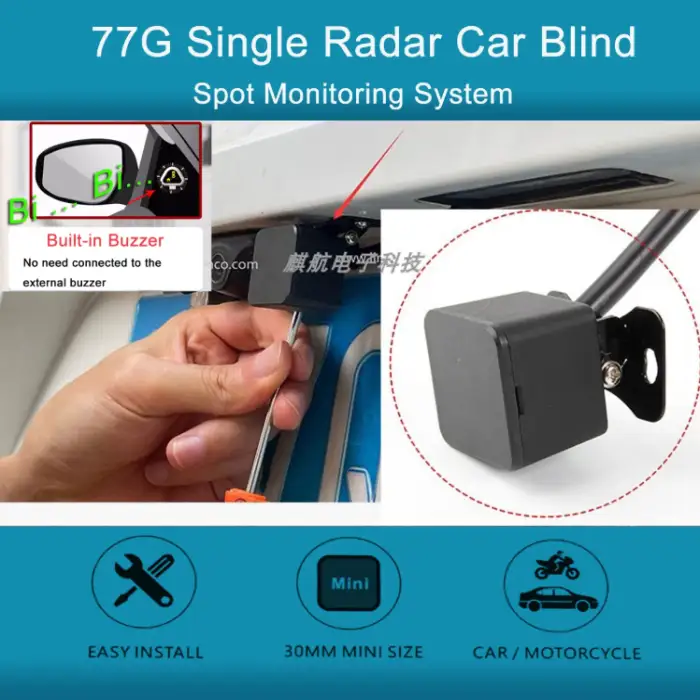

77GHz Radar Size:

Radar Install Position Recommend: 01.

For hatch-back cars, SUV, the top, center of the rear window is the ideal location for mounting radar.NOTE:1. If the heating element for the rear defroster contains metal components and rear window tint film,it could be effected interfere with radar functions.

2. Be careful with defrost lines. Try not to mount on the defroster lines. If mounted to those lines,removal of the radar will most likely remove the lines and deem the defrosted inoperable

SPECIFICATION

Packing Include:

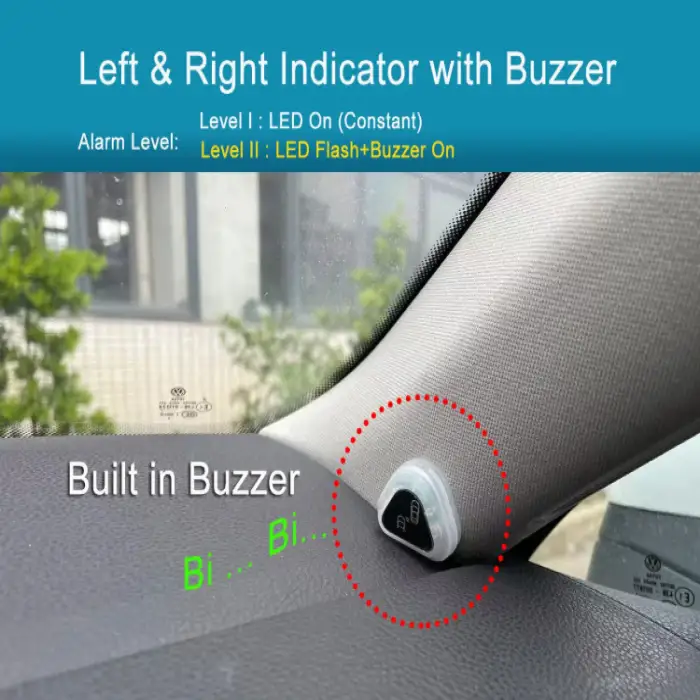

1.77Ghz Radar Detector unit2.Left & Right Turn Trigger wires3.Power Supply harness4.Extension cables 3M5.Extension cables 1.8M6.Left & Right Indicator with Buzzer7. Extension cables 5M8. User manual
