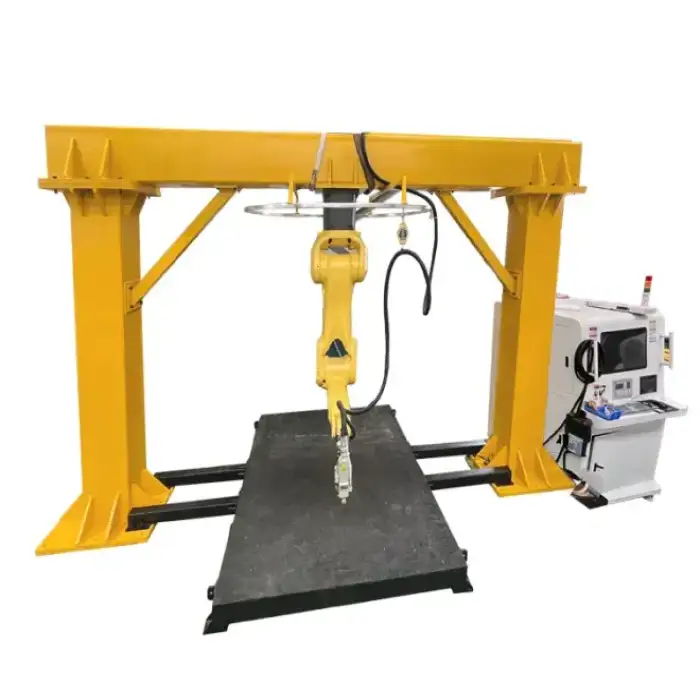

The Automatic Robot Fiber Laser Cutting Machine uses a Raycus laser source available in 1000W, 2000W, and 3000W options.
The machine operates in continuous working mode.
The laser wavelength is 1064nm.
The working area of the robot arm ranges from 1.4m to 2.0m.
The output power stability of the machine is ±2%.
The modulation frequency is 5KHz.
The machine supports an output fiber diameter ranging from 50mm to 100mm.
The rated input voltage is 220VAC.
The power consumption of the machine is 2kW.
The machine uses CYPCUT software for operation.
The machine is equipped with a water chiller cooling system.
The machine weighs approximately 3500KG.
Yes, this laser cutting machine is designed for industrial applications and can handle various cutting tasks efficiently.
Yes, the output power can be selected based on the model you choose: 1000W, 2000W, or 3000W.
The machine is capable of cutting a wide range of materials, including metals, plastics, and more, depending on the power and settings used.
