Automatic NeoDen YY1 Pcb Assembly Machine Desktop PCB SMT Pick and Place Machine for Electronics Startups

0 Customer Reviews

Add To Wishlist Share to Social

Section : Machinery
Category : Industrial Machinery
SKU : 1600961417611

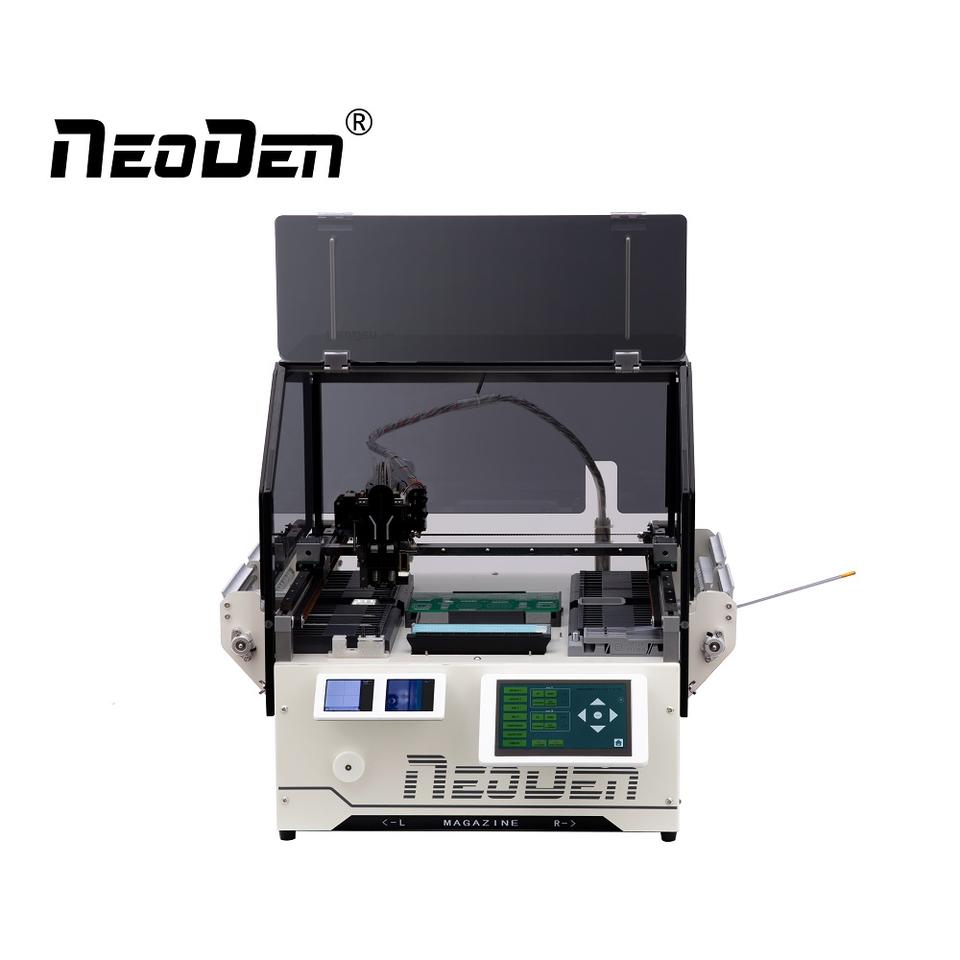

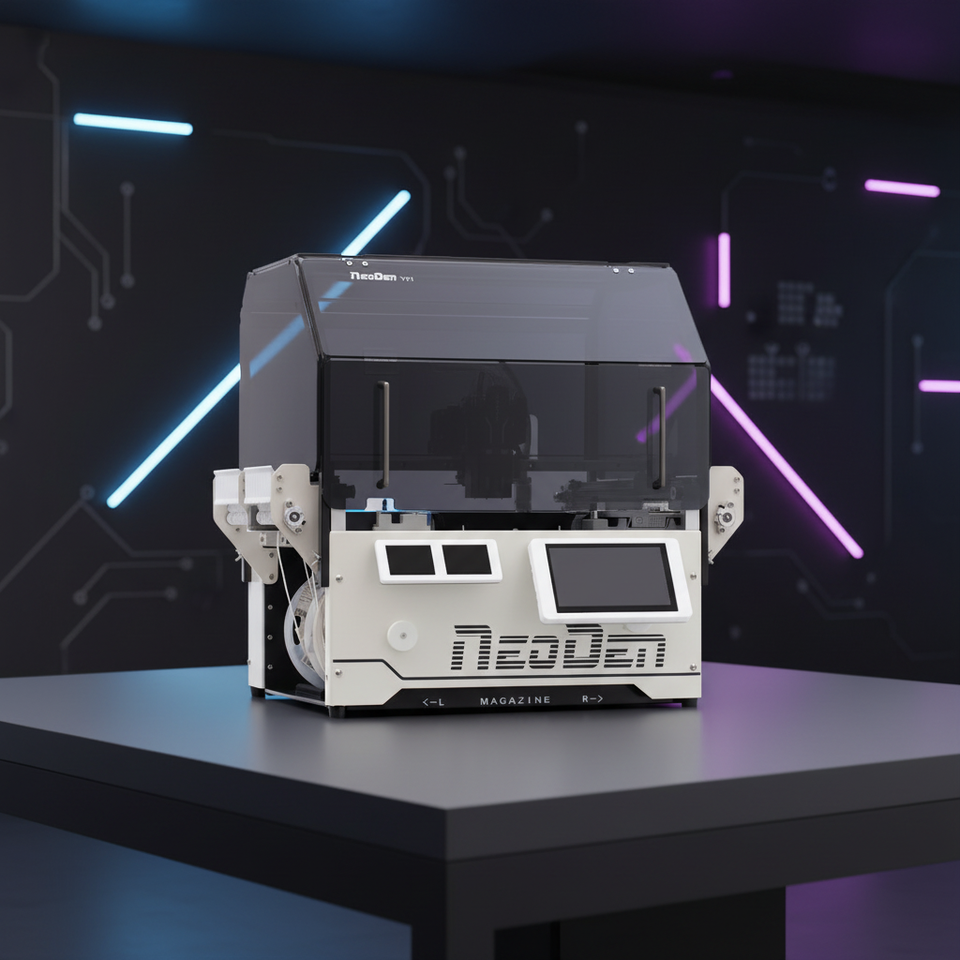

Automatic NeoDen YY1 PCB Assembly Machine

The Automatic NeoDen YY1 PCB Assembly Machine is the perfect solution for electronics startups looking to streamline their production process. This compact desktop SMT pick and place machine offers advanced features that make it user-friendly and efficient. With high accuracy and innovative technology, it is designed to help you build quality electronic products with ease.

Specifications

Attribute	Details
Placement Rate	4000 CPH (without vision); 3000 CPH (with vision)
Largest Component Size	12 mm
Placement Accuracy	±0.02 mm
Max Component Height	18 mm
Weight	50 kg
Dimensions	71 x 60 x 59 cm
Power Supply	220V or 110V

Key Features

Automatic nozzle changer for flexible nozzle changes.
Supports bulk component feeder, strip feeder, and IC tray feeder.

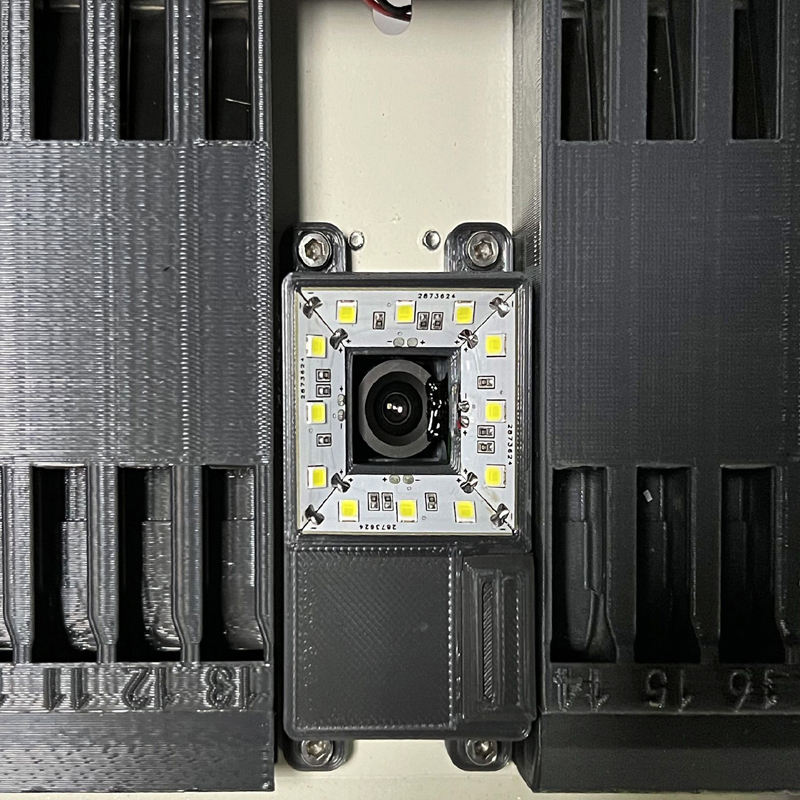

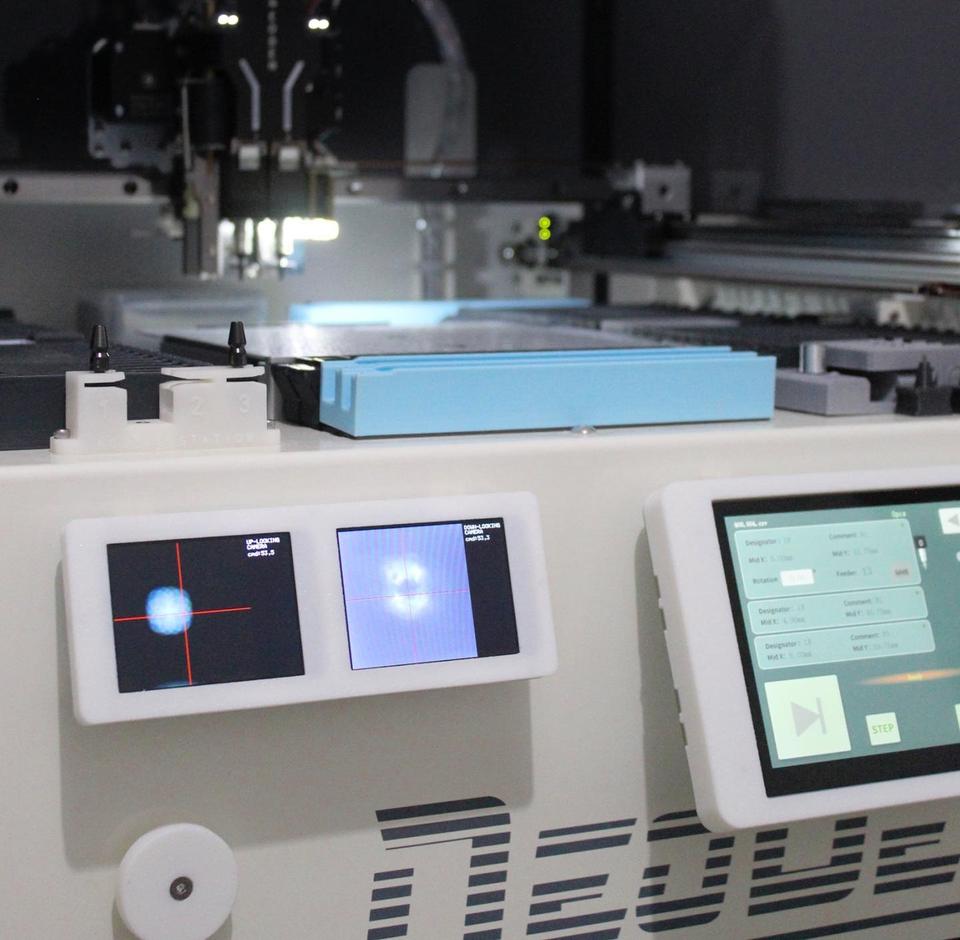

Independent dual vision recognition systems for accurate placement.
Newly designed software for fast programming and placement.
Linear rail design for X and Y axes ensuring precision.
Compact size with powerful magazines for large tape reels.
Vacuum detection function for reliable component placement.

Applications

Small to medium-batch production of electronic devices.
Rapid prototyping for electronics startups.
Research and development labs needing efficient assembly solutions.
Educational purposes for teaching electronics and assembly techniques.
Repair shops requiring precise component placement.
