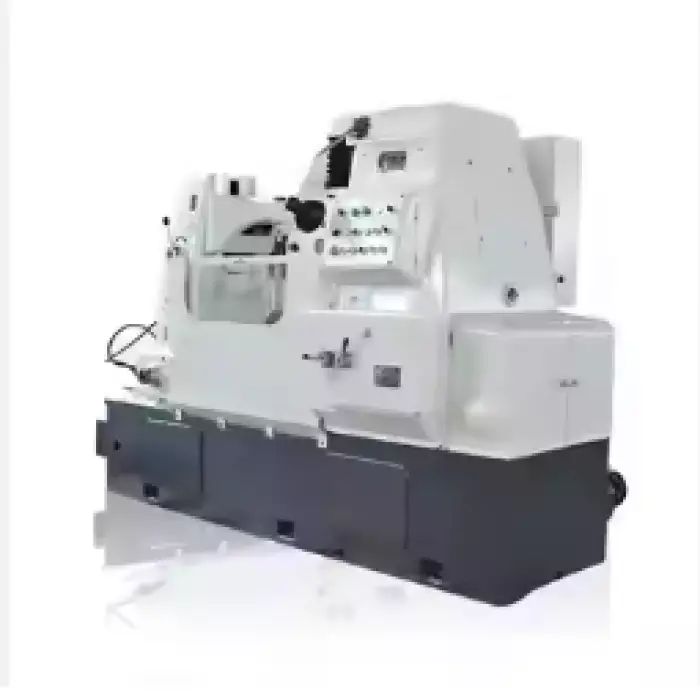

The Automatic Hobbing Machine CNC Gear Cutting Conventional Vertical Gear Hobbing Machine is a top-of-the-line tool for gear processing. This machine is designed to use a hob to create straight, helical, herringbone cylindrical gears, and worm gears. It is perfect for small batch and single piece production, making it versatile for various applications.
| Attribute | Details |
|---|---|
| Model | 1570 |
| Distance between centric lines (mm) | 160, 320, 500 |
| Module of workpiece to be cut (mm) | 4, 6, 8 |
| Width of workpiece to be cut (mm) | 60, 40, 32, 26 |
| Shaving cutter diameter (mm) | 240, 270 |
| Diameter of cutter bore (mm) | 63.5, 50 |
| Max. distance between centres (mm) | 400, 500 |
| Spindle speed (r/min) | 59 - 347 |
| Power of main motor (kw) | 2.2 |
| Overall dimensions (L x W x H) (mm) | 1600 x 2115 x 1600 |
| Net Weight, approx (T) | 24.8 |
Characteristic
⭐ Small batch and single piece production of cylindrical helical gear and worm gear ⭐ Easy to adjust, with automatic parking mechanism
⭐With reliable safety device, it can cut straight and helical cylindrical gears, as well as worm gear and sprocket
