Automatic CNC Rubber Gasket Cutting Machine: Precision Tool for Automotive Gasket Manufacturing
- Section : Machinery
- Category : Plastic & Rubber Processing Machinery
- SKU : 1601026975656

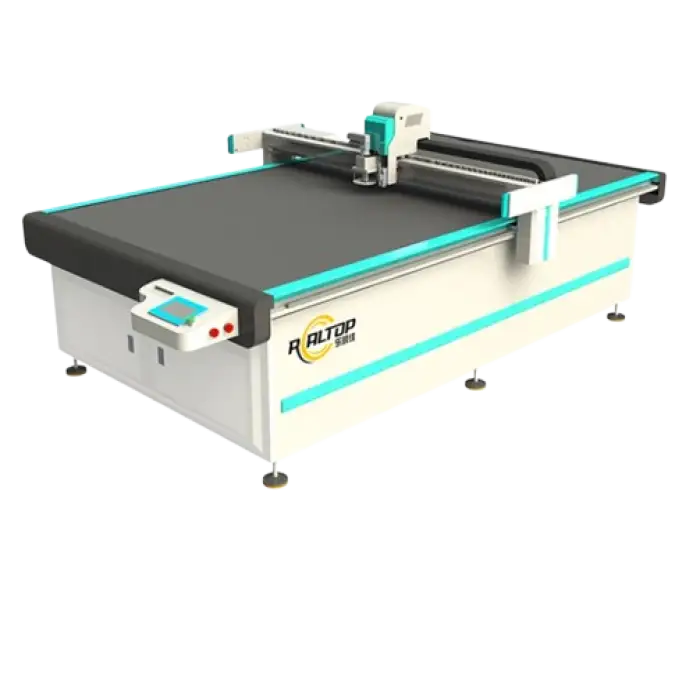

CNC Cylinder Head Rubber Moulding Gasket Cutting Machine
This advanced CNC cutting machine is designed for high-precision cutting in the automotive gasket making industry. Its versatility, powerful features, and robust construction make it a great solution for various cutting applications, especially in the production of automotive gaskets and other rubber moulding products.
Key Features:
High-Precision Cutting:
Utilizes a high-precision digital cutting system for various functions like full-size cutting, kiss cutting, slot milling, punching, inkjet, and drawing marking.
Versatile Tool Head:
Supports a wide range of cutting tools, including oscillating knives, pneumatic knives, high-power vibrating knives, circular knives, V cutting knives, and more.
Visual Positioning Technology:
Incorporates CCD camera mark point positioning, panoramic camera recognition, and projection positioning for highly accurate alignment.
Blade Physical Cutting:
Ensures smooth and clean cutting with no burrs, air pollution, burnt edges, or discoloration.
Cutting speed is 3-5 times faster than traditional laser cutting.
Customizable Cutting Modes:
Cutter types are adjustable to handle different material properties and thicknesses.
High-Quality Construction:
Constructed with a thick-walled seamless steel structure, treated with high-temperature tempering for excellent precision, durability, and long service life.
Magnesium-Aluminum Alloy Vacuum Adsorption Table:
The non-deformable table is made of high-quality material ensuring efficient suction and flatness for precise cutting.
Integrated Vacuum Pump:
Features a vacuum pump housed in an aviation-grade aluminum shell, offering durability, corrosion resistance, and reduced noise.
Safety Features:
Equipped with infrared sensors, anti-collision systems, and emergency stop devices for enhanced safety during operation.
Technical Specifications:
Model: RT-D2516 / RT-S2516
Working Area: 1600 mm x 2500 mm
Machine Size: 3450 x 2300 x 1250 mm
Rated Power: 9 kW
Fixed Model: Flated working table
Cutting Speed: 800-1200 mm/s
Cutting Thickness: 20 mm - 80 mm (depending on materials)
Materials: Leather, fabric, rubber, PVC, silicon, soft glass, etc.
Safety Device: Infrared sensors for enhanced safety
Transmission System: Imported digital servo motor, linear guide, ball screw
Voltage: 380V ± 10%
Other Configurations: Delta servo motor, Germany imported conveyor belt, auto feeding, 7.5 kW vacuum pump.
Applications:
The REALTOP CNC cutting machine is ideal for cutting various materials, including:
Automotive Gasket Materials: For automotive and industrial sealing.
Leather: Ideal for manufacturing leather goods.
Rubber: Used in automotive, construction, and other industries.
Clothing Fabrics: For garment and textile industries.
Foam, Sponge, PU, EVA, PVC, etc.: For a variety of manufacturing and packaging needs.
Product Configuration:
Swiss Imported Knife: Includes vibration full cutting, vibration half cutting, and cursor location functions for flexible cutting operations.
Advanced Control System: Features a high-end HP-GL compatible instruction system.
Vacuum Table: Equipped with a high-efficiency vacuum system for better material fixation during cutting.
Applications Across Industries:
This CNC machine is widely used in automotive, packaging, textile, leather, and foam industries, offering exceptional accuracy and speed for cutting a variety of materials used in manufacturing, construction, and product assembly.
The REALTOP CNC cutting machine provides a comprehensive solution for companies in the automotive gasket making industry, as well as other industries requiring precision cutting.
Product Paramenters
| Model | RT-D2516/RT-S2516 |
| working area | 1600*2500MM |
| Machine size | 3450×2300×1250MM |
| Rated power | 9kw |
| Fixed model | Flated working table |
| Multifunctional head | Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function. |
| Safety device | Using infrared sensors, responsive, safe and reliable. |
| translational velocity | 800-1200mm/s |
| Cutting thickness | 20mm-80mm/s(according to different cutting materials) |
| Cutting materials | Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber |
| Repeated accuracy | ≤0.1mm |
| Transmission system | imported (Digital servo motor, linear guide, synchronous belt, ball screw) |
| Instruction system | HP-GL compatible format |
| Voltage | 380V±10% |
| Other configuration | Delta servo motor, Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 7.5kw vacuum pump |
Tools and Applications
The REALTOP CNC cutting machine is versatile and can effectively cut a wide range of materials across various industries. Here's a comprehensive list of applicable materials and industries:
1. **Leather**: Used in manufacturing leather goods such as bags, shoes, and garments.
2. **Fabric**: Suitable for cutting various types of fabrics for apparel, upholstery, and home furnishings.
3. **Textile**: Used in textile manufacturing for cutting fabrics and textile materials.
4. **Cardboard**: Ideal for cutting cardboard for packaging and cardboard-based products.
5. **Plastic Box**: Used in packaging and plastic product manufacturing industries.
6. **Fiberglass**: Suitable for cutting fiberglass materials used in construction, automotive, and marine industries.
7. **Corrugated Cardboard**: Used in packaging and cardboard-based product manufacturing.
8. **Sticker**: Used for precise cutting of adhesive stickers and labels.
9. **Film**: Used in the film industry for cutting various types of films and foils.
10. **Foam Board**: Ideal for cutting foam boards used in signage, packaging, and insulation.
11. **Rubber**: Suitable for cutting rubber materials used in various industries including automotive and construction.
12. **Cloth**: Used in garment manufacturing and textile industries.
13. **Gasket Material**: Used in sealing applications in automotive, industrial, and manufacturing sectors.
14. **Clothing Cloth**: Used in garment manufacturing and textile industries.
15. **Shoe Material**: Ideal for cutting materials used in shoe manufacturing and repair.
16. **Luggage Material**: Used in luggage and bag manufacturing industries.
17. **Non-Woven Fabric**: Suitable for cutting non-woven fabric materials used in various applications.
18. **Carpet**: Used in carpet manufacturing and flooring industries.
19. **Sponge**: Ideal for cutting sponge materials used in upholstery, packaging, and insulation.
20. **PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE**: Suitable for cutting various types of plastic materials used in manufacturing.
21. **Composite Materials**: Used in industries such as aerospace, automotive, and construction for cutting composite materials.
Overall, the REALTOP CNC cutting machine is widely applicable across multiple industries including soft furnishings, automotive, packaging, textiles, and manufacturing for cutting a diverse range of materials with precision and efficiency.
Details Images
Product configuration
Machine cutting effect
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What are the key specifications of the Automatic CNC Rubber Gasket Cutting Machine (RT-D2516 / RT-S2516)?
Model RT-D2516/RT-S2516 features a 1600 x 2500 mm working area, machine size 3450 x 2300 x 1250 mm, rated power 9 kW, cutting speed 800–1200 mm/s, cutting thickness 20–80 mm (material dependent), repeated accuracy ≤0.1 mm, transmission with imported digital servo motor/linear guide/ball screw, and HP-GL compatible control.
2. Which materials can this CNC cutter handle?
The machine cuts a wide range of materials including rubber and gasket materials, leather, fabric/textiles, foam/sponge, PU/EVA/PVC, silicone, soft glass, cardboard, fiberglass, corrugated board, stickers/films, carpets, and many composite and plastic materials.
3. What types of cutting tools and modes does the machine support?
It supports oscillating knives, pneumatic knives, high-power vibrating knives (Swiss imported), circular knives, V-cut knives, slot milling, punching, kiss cutting, full cutting, inkjet marking, and drawing marking. Cutter types and modes are adjustable for different materials and thicknesses.
4. How does the visual positioning system ensure cutting accuracy?
The machine uses CCD camera mark-point positioning, panoramic camera recognition and projection positioning to align material and patterns precisely, enabling repeat accuracy ≤0.1 mm and reducing waste from misalignment.
5. How does blade physical cutting compare to laser cutting?
Blade physical cutting produces smooth, burr-free edges with no burnt edges, discoloration or air pollution. The machine also cuts 3–5 times faster than traditional laser cutting for many flexible materials and reduces thermal damage to heat-sensitive substrates.
6. What vacuum and material fixation features does it include?
It has a magnesium-aluminum alloy vacuum adsorption table for flatness and non-deformation, and an integrated vacuum pump (aviation-grade aluminum shell) for durable, corrosion-resistant, low-noise suction. Optional high-capacity vacuum pump (7.5 kW) and vacuum table configurations are available.
7. What safety features are built into the machine?
Safety components include infrared sensors, anti-collision systems, emergency stop devices, and robust mechanical construction to protect operators and prevent damage during operation.
8. What software and file formats does the control system support?
The advanced control system is HP-GL compatible. It accepts standard vector outputs commonly converted to HP-GL/PLT; users typically export designs from CAD/CAM software (DXF, PLT, etc.) and convert to the controller's compatible format.
9. Can the machine be customized or equipped with automation options?
Yes. Optional configurations include Delta servo motors, Germany-imported conveyor belts, automatic feeding systems, Taiwan Hiwin rails, and upgraded vacuum pumps. Contact the supplier for custom tooling, automation packages and integration with production lines.
10. What maintenance is required and what consumables should I expect?
Regular maintenance includes cleaning the table and vacuum holes, lubricating linear guides and ball screws, checking belt tension and sensors, and inspecting/replacing cutting blades and vacuum pump filters. Consumables include blades (oscillating, circular, V-cut), pump filters, belts, and camera calibration targets.
11. What level of after-sales support and training is available?
Most suppliers offer installation support, operator training (on-site or remote), commissioning, spare parts supply, and technical support. Specific terms vary by distributor—confirm training and service packages when ordering.
12. How fast is the machine and how does speed affect cut quality?
Typical cutting speeds are 800–1200 mm/s. Optimum speed depends on material type, thickness and tool choice—thicker or tougher materials require slower passes or different cutters to maintain edge quality and accuracy.
13. What are the installation and power requirements?
The machine requires three-phase power at 380 V ±10%. Floor space should accommodate the machine footprint (3450 x 2300 mm) plus clearance for loading/unloading and service access. Confirm local electrical standards and site preparation with your supplier.
14. How can I get pricing, lead times, warranty and certifications?
Contact an authorized REALTOP distributor or sales representative with your desired configuration and application details. They will provide pricing, estimated lead times, warranty terms, available certifications (CE, etc.) and shipping/installation options.
