Automatic 3D Model Axis Double 4 Axis CNC Wood Turning Lathe
- Section : Machinery
- Category : Woodworking Machinery
- SKU : 1600733975881

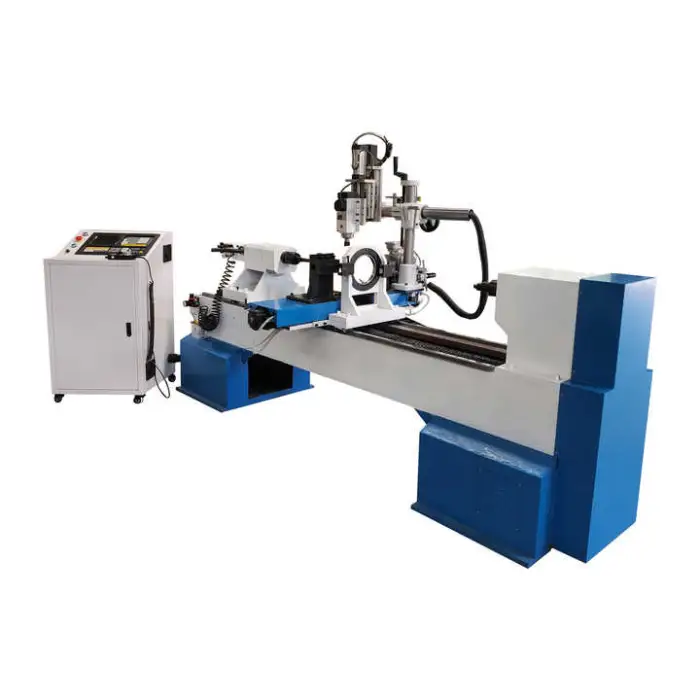

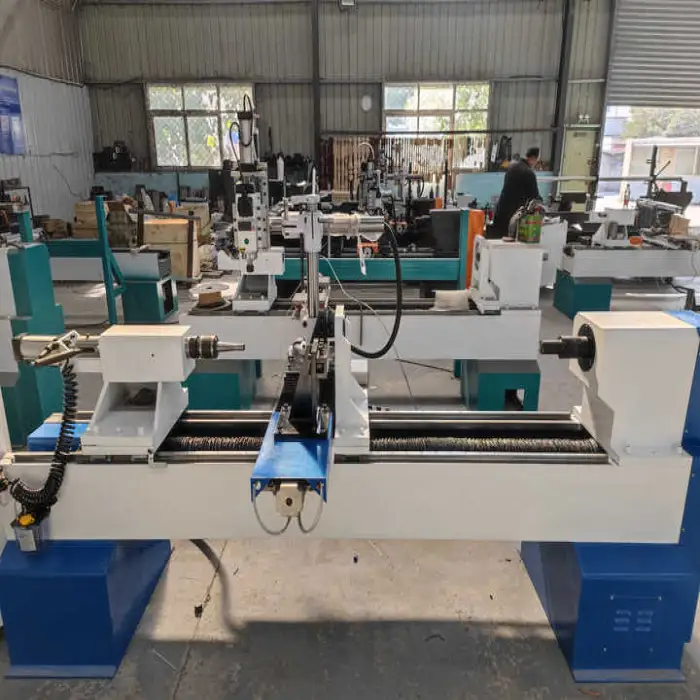

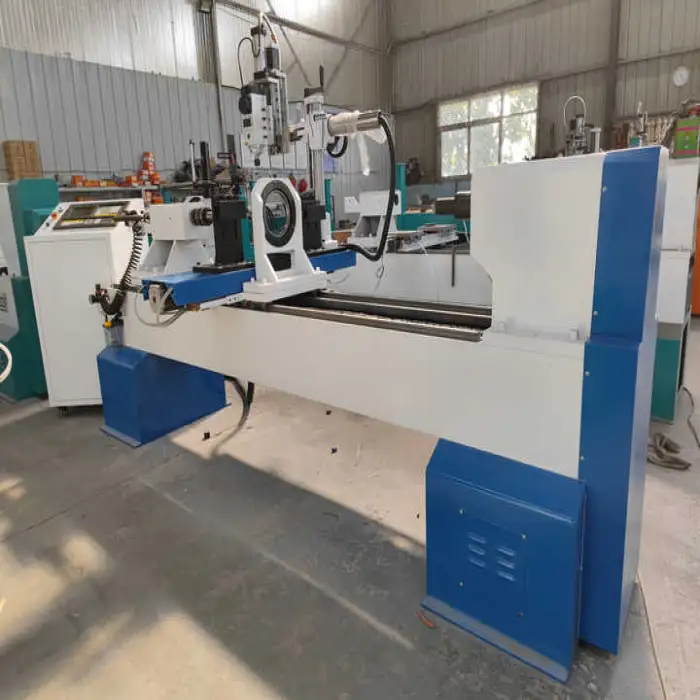

Automatic 3D Model Axis Double 4 Axis CNC Wood Turning Lathe
The Automatic 3D Model Axis Double 4 Axis CNC Wood Turning Lathe is a powerful machine designed for precision wood turning, milling, and engraving. This advanced lathe is perfect for both professionals and hobbyists who want to create intricate wood designs with ease. With its heavy-duty casting and high-speed spindle, it delivers exceptional performance and reliability.
Specifications
| Attribute | Details |
|---|---|
| Voltage | 380V 3 phase 50HZ/60HZ (can custom 220V) |
| Max. Swing Diameter (mm) | 300 mm |
| Max. Length of Workpiece (mm) | 1500 mm |
| Weight (kg) | 1200 kg |
| Max. Turned Length (mm) | 1500 mm |
| Dimension (L*W*H) | 2500*1200*1500 mm |
| Control System | Control panel 1000tc |
| Inverter | BEST/Pure Servo Inverter |
| Driver | Yako control drive |
| Bed Structure | Heavy-duty overall full casting |
| Spindle Motor | 5.5kw pure servo rotary motor |
| Spindle Power | 3.5KW high-speed air-cooled spindle |
| Main Function | Single-axis turning, milling, and engraving |
| Spindle Speed | 0-6000 r/min |
| Function | Wood Turning |
| Packaging Details | Standard Import Package |
| Port of Dispatch | Shanghai Port |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 10.000 KG |
| Supply Ability | 15 sets per Month |
Key Features
- Advanced 4 Axis CNC technology for precision work.
- High-speed spindle with adjustable speed up to 6000 r/min.
- Heavy-duty construction for stability and durability.
- Customizable voltage options for different setups.
- Control panel for easy operation and monitoring.
Applications
- Ideal for wood turning and crafting detailed wood designs.
- Perfect
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What does the product name 'Automatic 3D Model Axis Double 4 Axis' mean?
The name indicates a CNC lathe built for automated 3D wood turning using 4-axis capability, with a 'double' configuration—commonly meaning dual working stations or dual spindles/rotary axes for more complex or simultaneous operations. Exact configuration (dual head vs. twin-spindle) should be confirmed with the supplier.
2. What are the maximum workpiece dimensions this lathe can handle?
Max swing diameter is 300 mm and maximum turned length (workpiece length) is 1500 mm.
3. What are the electrical power requirements?
Standard supply is 380V three-phase at 50/60 Hz. A 220V option can be custom-configured—confirm voltage options when ordering.
4. What are the key motors, spindle power and speed specifications?
The machine is equipped with a 5.5 kW pure servo rotary motor and a 3.5 kW high-speed air-cooled spindle. Spindle speed is adjustable from 0 to 6000 r/min.
5. Which control system and drives are used?
This model uses the 'Control panel 1000tc' for operation and monitoring. Inverter is listed as BEST/Pure Servo Inverter and the drive as Yako control drive. For detailed software/firmware compatibility and supported file formats, check with the manufacturer.
6. What materials and applications is this machine intended for?
It is designed primarily for wood turning, milling and engraving—ideal for creating detailed wood designs, decorative pieces, and 3D turned models. Performance on non-wood materials should be verified with the supplier.
7. How stable and durable is the machine?

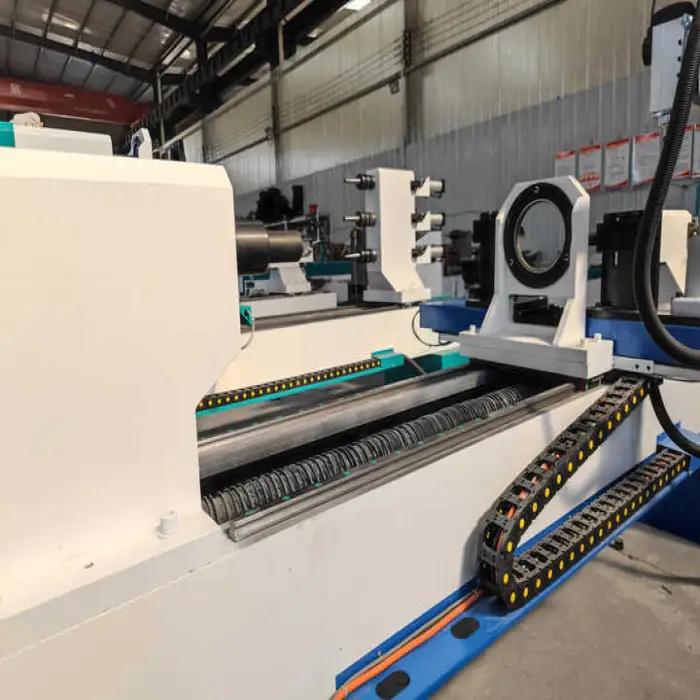

The bed uses a heavy-duty overall full casting construction to provide stability and reduce vibration for better surface finish and repeatability during high-speed turning.
8. What tooling and accessories are required or compatible?
The listing does not specify particular tooling brands or collet systems. It will accept standard wood-turning tooling appropriate for the spindle and rotary motor. Ask the supplier for recommended tool holders, chucks, and accessories for your intended applications.
9. Is the spindle cooled, and what maintenance does it require?
The spindle is air-cooled. Regular maintenance should include checking and cleaning air filters, inspecting belts and couplings, lubricating linear guides and bearings per the manual, and routine inspection of electrical and drive components. Follow the manufacturer’s maintenance schedule.
10. What safety features and operator precautions are recommended?
Use appropriate guarding and emergency stops provided by the control panel. Operators should wear PPE (eye protection, hearing protection, dust masks or respirators when generating dust). Ensure proper dust extraction, secure workpieces correctly, and follow lockout/tagout procedures when servicing the machine.
11. How precise is the machine (repeatability / accuracy)?
The listing emphasizes precision 4-axis CNC capability but does not provide numeric tolerance or repeatability figures. For specific accuracy, positioning resolution, and repeatability data, request the manufacturer's technical specifications.
12. What are the shipping, packaging and lead time details?
Port of dispatch is Shanghai. The machine is shipped in a standard import package; due to the machine weight (around 1200 kg) it will be crated for export. Supply ability is about 15 sets per month—lead time should be confirmed at ordering.
13. Can the control system accept G-code or third-party CAD/CAM programs?
The product lists a 'Control panel 1000tc' which typically supports standard CNC operations. For confirmation on G-code support and recommended CAM software workflows, check with the supplier for the exact control firmware and compatible file formats.
14. What warranty and after-sales support are provided?
The listing does not specify warranty or after-sales terms. Ask the seller about warranty length, spare parts availability, commissioning, training and technical support options before purchase.
