3Ton Electric Forklift Lithium Battery SLD
- Section : Machinery
- Category : Forklifts
- SKU : 1601090546219-5

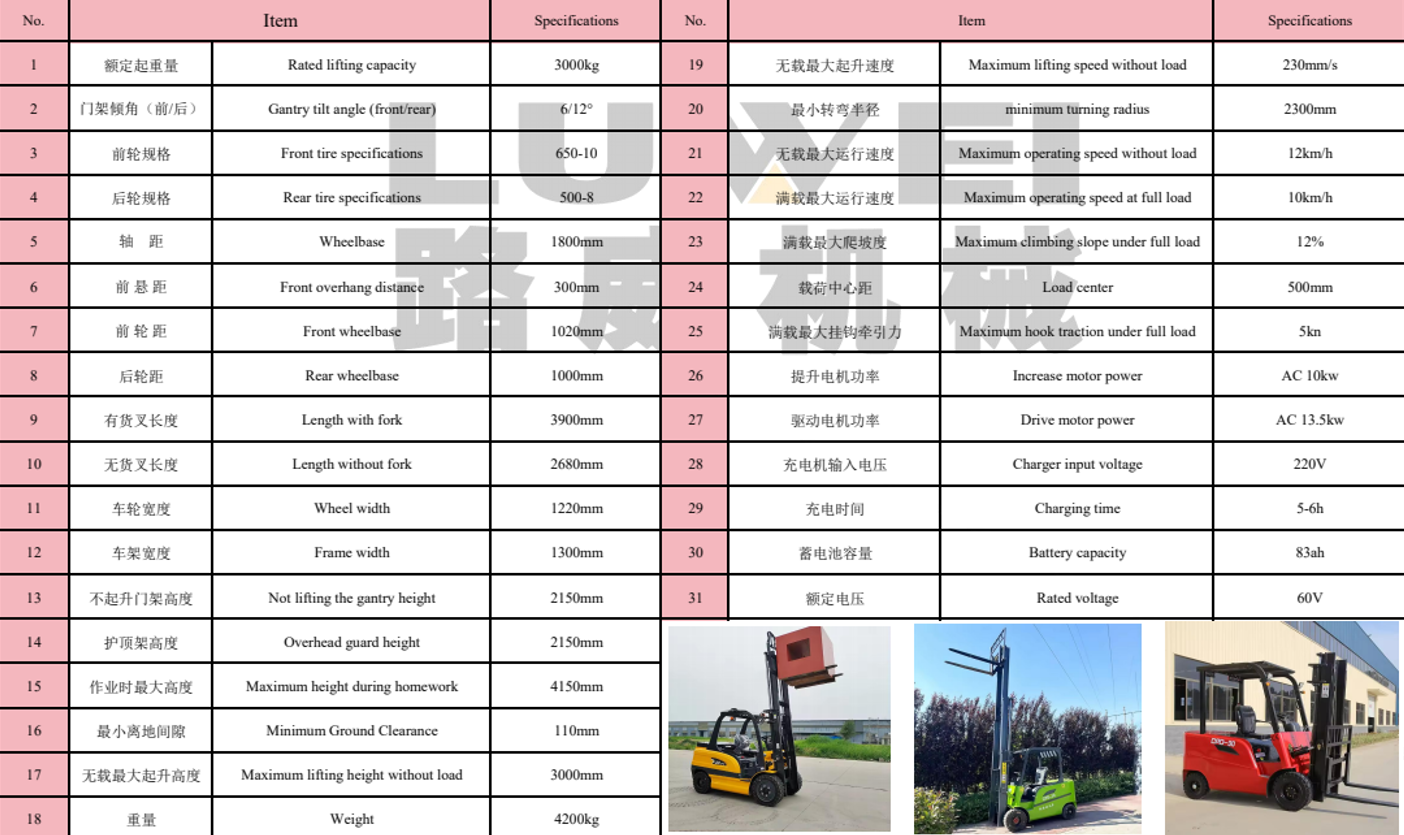

LW-T30 3 Ton Electric Forklift: Technical Specifications
The LW-T30 3 Ton Electric Forklift is a powerful and reliable machine designed for efficient material handling. This forklift offers excellent lifting capabilities, high performance, and durability, making it ideal for various industries. Below are the detailed technical specifications for the LW-T30.
Key Features
- Rated Lifting Capacity: The forklift can handle up to 3000 kg (3 tons), making it suitable for lifting heavy loads.
- Gantry Tilt Angle (Front/Rear): The gantry tilt angle is 6° front and 12° rear, allowing for better load stability and maneuverability.
- Tire Specifications:
- Front Tires: 650-10
- Rear Tires: 500-8
- Wheelbase: The forklift has a wheelbase of 1800 mm, ensuring a stable foundation during operations.
- Front Overhang Distance: The front overhang is 300 mm, providing efficient load handling.
- Front and Rear Wheelbase:
- Front Wheelbase: 1020 mm
- Rear Wheelbase: 1000 mm
- Length:
- With Fork: 3900 mm
- Without Fork: 2680 mm
- Frame Width: The width of the frame is 1300 mm, allowing for flexibility in tight spaces.
- Overhead Guard Height: The height of the overhead guard is 2150 mm, providing safety and protection for the operator.
- Maximum Height During Operation: The forklift reaches a maximum height of 4150 mm while in use.
- Minimum Ground Clearance: The minimum clearance between the ground and the forklift is 110 mm, ensuring it can operate in various environments.
- Maximum Lifting Height without Load: The forklift can lift up to 3000 mm when unloaded.
- Weight: The total weight of the forklift is 4200 kg, which provides stability during heavy-duty operations.
Performance Specifications
- Maximum Lifting Speed without Load: The forklift has a maximum lifting speed of 230 mm/s without any load, ensuring quick lifting and efficient operations.
- Minimum Turning Radius: The forklift can turn within a radius of 2300 mm, providing excellent maneuverability in tight spaces.
- Maximum Operating Speed:
- Without Load: 12 km/h
- With Full Load: 10 km/h
- Maximum Climbing Slope Under Full Load: The forklift can handle a 12% climbing slope when fully loaded, making it ideal for uneven terrain.
Power and Battery
- Motor Power:
- Increase Motor Power: 10 kW (AC)
- Drive Motor Power: 13.5 kW (AC)
- Battery Capacity: The forklift is powered by a battery with a capacity of 83 Ah.
- Charging Time: The battery takes 5-6 hours to charge fully, ensuring that the forklift is ready for use with minimal downtime.
- Charger Input Voltage: The charging system operates at an input voltage of 220V.
- Rated Voltage: The forklift operates at a rated voltage of 60V.
Conclusion
The LW-T30 3 Ton Electric Forklift is a reliable, high-performance machine designed to meet the demands of various industries. With its strong lifting capacity, efficient power system, and safety features, this forklift is ideal for moving heavy loads with ease. Its compact design and easy maneuverability make it suitable for both indoor and outdoor operations, ensuring that you can handle your materials efficiently and safely.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the lifting capacity of the LW-T30 3 Ton Electric Forklift?
The LW-T30 can handle a rated lifting capacity of up to 3000 kg (3 tons).
2. What type of battery does the LW-T30 forklift use?
The LW-T30 is powered by a lithium battery with a capacity of 83 Ah.
3. How long does it take to fully charge the battery?
The battery takes approximately 5-6 hours to charge fully.
4. What is the maximum lifting height of the forklift?
The maximum lifting height of the LW-T30 is 3000 mm when unloaded.
5. What is the maximum operating speed of the forklift?
The maximum operating speed is 12 km/h without load and 10 km/h with a full load.
6. What is the turning radius of the LW-T30 forklift?
The minimum turning radius of the forklift is 2300 mm, allowing for excellent maneuverability.
7. What are the tire specifications for the LW-T30?
The front tires are 650-10 and the rear tires are 500-8.
8. What is the weight of the forklift?
The total weight of the LW-T30 forklift is 4200 kg.
9. What is the gantry tilt angle of the forklift?
The gantry tilt angle is 6° front and 12° rear for better load stability.
10. What is the overhead guard height for operator safety?
The height of the overhead guard is 2150 mm, providing safety and protection for the operator.
11. Can the forklift operate on uneven terrain?
Yes, the LW-T30 can handle a maximum climbing slope of 12% when fully loaded.
12. What is the rated voltage of the LW-T30 forklift?
The forklift operates at a rated voltage of 60V.
13. What dimensions does the forklift have?
The length with fork is 3900 mm and without fork is 2680 mm, with a frame width of 1300 mm.
14. Is the LW-T30 suitable for indoor operations?
Yes, the compact design and easy maneuverability make it suitable for both indoor and outdoor operations.
15. What is the maximum lifting speed without load?
The maximum lifting speed without load is 230 mm/s, ensuring quick and efficient operations.
