3000 pieces per hour Egg tray production line egg carton making machine with drying equipment 6, 12, 30
- Section : Machinery
- Category : Packaging Machines
- SKU : 160124099279777
Product Description
| Model | YG-1*3 | YG-1*4 | YG-3*4 | YG-4*4 | YG-4*8 | YG-5*8 | YG-6*8 |
| Capacity (pcs/h) | 1000 | 1500 | 2500 | 3500 | 4500 | 5500 | 7000 |
| Forming Mould Quantity | 3 | 4 | 12 | 16 | 32 | 40 | 48 |
| Total Power (kw) | 40 | 40 | 50 | 60 | 130 | 140 | 186 |
| Electricity Consumption (kw/h) | 28 | 29 | 35 | 42 | 91 | 98 | 130 |
| Worker | 3-5 | 4-6 | 4-6 | 4-6 | 4-6 | 5-7 | 6-8 |

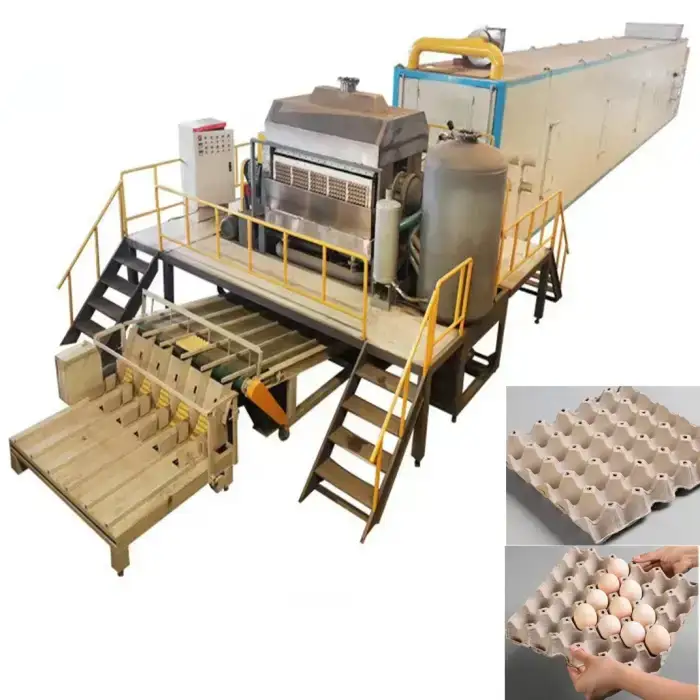

The automatic egg tray production line is composed of pulping system, forming system, drying system, stacking system, vacuum system, high pressure water system and air pressure system.Using waste newspapers, waste carton paper, office paper, scraps and other waste paper as raw materials, through hydraulic disintegration, filtration, water injection and other processes to prepare a certain concentration of slurry, through the molding system on the special metal mold through vacuum adsorption A wet blank is formed, which is then dried on a drying line, and then stacked after being hot-pressed on-line.
Please Click Here To Contact US For More Details!
 | Pulp system Feed the waste paper and water into the pulping machine, and after about 20 minutes of high-concentration stirring, the pulp is |
Molding system 1. The molding machine adsorbs the pulp pumped into the hopper of the molding machine to the molding machine mold, and adsorbs the pulp to the molding machine mold through the suction of the vacuum system, and sucks the excess water into the gas-water separation tank. The water pump is pumped into the pool for storage.
2. After the mould of the forming machine absorbs the pulp and forms it, the manipulator of the forming machine takes out the finished product and sends it to the drying conveyor belt. |  |
 | Metal drying system Multi-layer drying system, the internal temperature can reach 120 degrees.
Fast drying paper tray, fast delivery.
High temperature resistant material, long service life |
Please Click Here To Contact US For More Details!
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the production capacity of the egg tray production line?
The egg tray production line has a production capacity ranging from 1,000 to 7,000 pieces per hour depending on the model.
2. What types of raw materials can be used for the egg tray production?
The production line can utilize waste newspapers, waste carton paper, office paper, and other scraps as raw materials.
3. How does the drying system work?
The drying system is a multi-layer setup that can reach internal temperatures of up to 120 degrees Celsius, ensuring fast drying of the paper trays.
4. What is the total power consumption of the machine?
The total power consumption of the machine varies by model, ranging from 40 to 186 kW.
5. How many workers are required to operate the machine?
The operation of the egg tray production line typically requires 3 to 8 workers, depending on the model.
6. What is the role of the pulp system in the production line?
The pulp system feeds waste paper and water into the pulping machine, where it is stirred and prepared into a consistent slurry for the molding process.
7. Can the machine produce different sizes of egg trays?
Yes, the machine can produce various sizes of egg trays depending on the forming mold used, with options for 6, 12, or 30-cell configurations.
8. Is the egg tray production line fully automated?
Yes, the production line is designed to be fully automated, including pulping, molding, drying, and stacking processes.
9. What maintenance is required for the egg tray production line?
Regular maintenance includes checking the pulp system, cleaning the molds, and ensuring the drying system functions efficiently.
10. What is the lifespan of the drying equipment?
The drying equipment is made from high-temperature resistant materials, ensuring a long service life with proper maintenance.
11. Can this machine be used for other types of paper products?
While primarily designed for egg trays, the machine can be adapted to produce other molded paper products depending on the mold used.
12. What are the dimensions of the production line?
The dimensions of the production line can vary by model; specific size details can be provided upon request.
13. Is training provided for operating the machine?
Yes, training and support are typically provided to ensure proper operation and maintenance of the machine.
14. What safety features are included in the machine?
The machine includes various safety features such as emergency stop buttons, safety guards, and automatic shut-offs for safe operation.
15. How can I contact you for more details?
You can contact us directly through our website or customer service for more details about the product.
